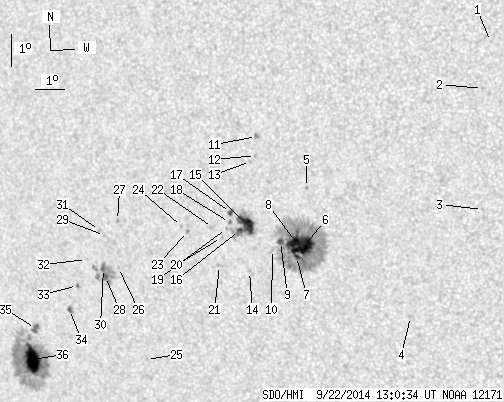

SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.29 | 468.48 | 59.76 | 288.53 | -10.45 | 264.63 | -31.74 | 118.79 | 0.5893 | 266.2 | 86.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.43 | -2.31 | 275.71 | -20.66 | 113.67 | 0.3865 | 684.0 | 557.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -3.76 | 275.43 | -20.95 | 116.68 | 0.4009 | 739.0 | 535.6 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -7.50 | 275.28 | -21.09 | 124.23 | 0.4334 | 755.0 | 642.4 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -10.97 | 272.66 | -23.71 | 127.14 | 0.4972 | 690.0 | 544.5 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -7.11 | 269.45 | -26.92 | 117.22 | 0.5073 | 729.0 | 591.2 | |
| 21.78 | 213.70 | 12.64 | 124.17 | -8.96 | 269.21 | -27.16 | 120.17 | 0.5237 | 1089.6 | 345.6 | |
| 2.74 | -6.00 | 1.60 | -6.00 | -9.28 | 268.94 | -27.43 | 120.46 | 0.5296 | 639.1 | 999999 | |
| 13.37 | -6.00 | 7.78 | -6.00 | -8.81 | 268.95 | -27.43 | 119.69 | 0.5260 | 984.7 | 999999 | |
| 2.30 | -6.00 | 1.35 | -6.00 | -8.84 | 268.43 | -27.95 | 119.27 | 0.5329 | 647.2 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.56 | -9.11 | 268.13 | -28.25 | 119.44 | 0.5387 | 490.0 | 318.1 | |
| 0.00 | 2.30 | 0.00 | 1.33 | -5.62 | 267.82 | -28.55 | 113.25 | 0.5197 | 661.0 | 608.1 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -6.21 | 267.76 | -28.62 | 114.23 | 0.5242 | 692.0 | 625.8 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -6.41 | 267.57 | -28.80 | 114.43 | 0.5279 | 628.0 | 455.9 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -9.85 | 267.26 | -29.12 | 119.87 | 0.5549 | 659.0 | 508.8 | |
| 16.91 | 38.42 | 9.97 | 22.68 | -8.38 | 267.29 | -29.09 | 117.52 | 0.5444 | 915.0 | 482.4 | |
| 2.66 | -15.00 | 1.57 | -15.00 | -8.58 | 267.02 | -29.35 | 117.64 | 0.5491 | 762.7 | 999999 | |
| 1.68 | 2.92 | 1.00 | 1.73 | -8.04 | 266.76 | -29.62 | 116.53 | 0.5490 | 636.4 | 536.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -8.36 | 266.69 | -29.68 | 116.99 | 0.5519 | 640.0 | 544.1 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -8.55 | 266.57 | -29.80 | 117.21 | 0.5547 | 487.0 | 380.3 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -8.84 | 266.37 | -30.00 | 117.52 | 0.5593 | 603.0 | 485.4 | |
| 0.00 | 2.30 | 0.00 | 1.38 | -9.73 | 266.21 | -30.16 | 118.79 | 0.5672 | 570.0 | 498.5 | |
| 0.00 | 2.39 | 0.00 | 1.43 | -8.55 | 266.08 | -30.29 | 116.82 | 0.5611 | 237.0 | 279.8 | |
| 0.00 | 1.50 | 0.00 | 0.91 | -8.73 | 265.18 | -31.20 | 116.41 | 0.5738 | 557.0 | 378.2 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -8.59 | 264.98 | -31.40 | 116.03 | 0.5755 | 413.0 | 385.7 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -12.90 | 263.18 | -33.20 | 121.07 | 0.6253 | 649.0 | 459.6 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -10.04 | 262.53 | -33.84 | 116.48 | 0.6148 | 419.0 | 305.7 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -8.56 | 262.66 | -33.71 | 114.36 | 0.6046 | -673.0 | -566.6 | |
| 2.21 | 26.03 | 1.40 | 16.44 | -10.36 | 262.01 | -34.36 | 116.59 | 0.6231 | -970.7 | -641.7 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -9.06 | 262.13 | -34.24 | 114.76 | 0.6142 | -626.0 | -562.9 | |
| 1.86 | -28.00 | 1.17 | -28.00 | -10.11 | 261.97 | -34.40 | 116.20 | 0.6222 | -1006.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -8.92 | 261.96 | -34.41 | 114.44 | 0.6155 | -706.0 | -531.2 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -9.87 | 261.37 | -35.00 | 115.45 | 0.6281 | -597.0 | -485.0 | |
| 0.44 | 1.33 | 0.28 | 0.85 | -10.72 | 260.92 | -35.45 | 116.38 | 0.6384 | 397.4 | 439.5 | |
| 1.24 | 3.63 | 0.80 | 2.35 | -11.50 | 260.50 | -35.87 | 117.21 | 0.6479 | -661.7 | -573.8 | |
| 3.28 | 6.02 | 2.18 | 4.00 | -12.21 | 259.09 | -37.29 | 117.27 | 0.6684 | -865.9 | -703.5 | |
| 26.82 | 145.89 | 18.02 | 98.18 | -13.22 | 258.79 | -37.58 | 118.44 | 0.6775 | -901.4 | -193.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
