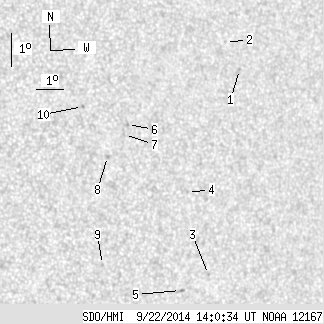

SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.50 | 0.00 | 6.89 | 5.44 | 330.10 | 34.28 | 269.32 | 0.5639 | 411.3 | 210.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.66 | 8.54 | 333.26 | 37.43 | 274.87 | 0.6055 | -727.0 | -588.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 9.39 | 332.82 | 37.00 | 276.29 | 0.5996 | 564.0 | 456.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 2.47 | 331.64 | 35.82 | 264.48 | 0.5896 | 696.0 | 614.2 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 5.00 | 330.98 | 35.16 | 268.67 | 0.5760 | 509.0 | 440.6 | |
| 0.00 | 2.66 | 0.00 | 1.61 | 2.06 | 330.59 | 34.77 | 263.51 | 0.5758 | -449.0 | -525.5 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 7.19 | 328.94 | 33.12 | 272.37 | 0.5447 | 686.0 | 607.3 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 6.90 | 328.81 | 32.99 | 271.82 | 0.5429 | 690.0 | 605.6 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 6.28 | 328.15 | 32.33 | 270.60 | 0.5337 | 839.0 | 698.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 3.04 | 327.80 | 31.98 | 264.48 | 0.5334 | 660.0 | 588.9 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 7.83 | 327.38 | 31.56 | 273.52 | 0.5215 | 645.0 | 613.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
