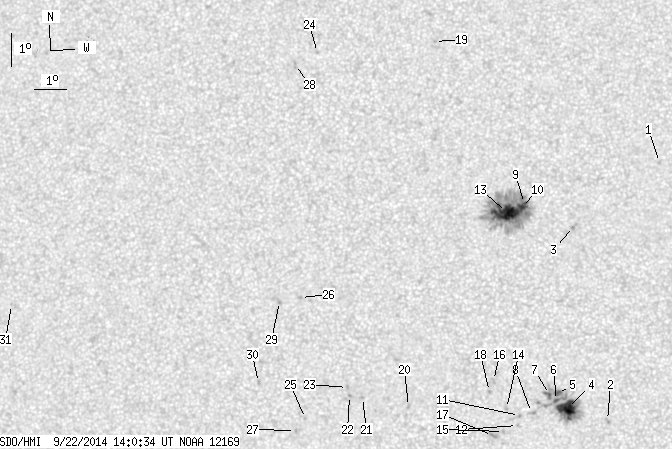

SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.36 | 251.63 | 30.08 | 125.66 | 8.68 | 289.93 | -5.89 | 78.66 | 0.1179 | -559.3 | -381.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 0.88 | 12.55 | 294.44 | -1.38 | 13.75 | 0.0993 | -884.0 | -589.5 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 4.77 | 292.89 | -2.93 | 127.68 | 0.0647 | 961.0 | 739.2 | |
| 0.00 | 3.10 | 0.00 | 1.54 | 10.60 | 291.82 | -4.01 | 47.70 | 0.0933 | -949.0 | -851.1 | |
| 19.65 | 76.03 | 9.76 | 37.79 | 5.13 | 291.68 | -4.14 | 114.66 | 0.0795 | -1190.6 | -647.4 | |
| 2.12 | -4.00 | 1.06 | -4.00 | 5.57 | 291.37 | -4.45 | 108.05 | 0.0816 | -997.0 | 999999 | |
| 1.06 | -4.00 | 0.53 | -4.00 | 5.36 | 291.34 | -4.48 | 110.35 | 0.0833 | -1092.8 | 999999 | |
| 0.89 | -4.00 | 0.44 | -4.00 | 5.54 | 291.13 | -4.69 | 107.51 | 0.0857 | -985.0 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.50 | 5.00 | 290.59 | -5.23 | 111.13 | 0.0978 | -953.0 | -735.1 | |
| 1.15 | 132.59 | 0.57 | 66.20 | 11.28 | 290.30 | -5.52 | 51.68 | 0.1209 | -1026.2 | -470.8 | |
| 5.13 | -9.00 | 2.56 | -9.00 | 11.16 | 290.21 | -5.61 | 52.93 | 0.1208 | -1206.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.90 | 290.23 | -5.60 | 110.68 | 0.1043 | -827.0 | -663.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.60 | 290.17 | -5.65 | 113.12 | 0.1073 | -719.0 | -491.4 | |
| 30.36 | -9.00 | 15.16 | -9.00 | 11.01 | 289.75 | -6.07 | 56.06 | 0.1257 | -1198.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.11 | 289.83 | -5.99 | 107.61 | 0.1096 | -603.0 | -470.2 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 4.41 | 289.74 | -6.08 | 113.12 | 0.1153 | 759.0 | 389.1 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 5.95 | 289.43 | -6.39 | 99.37 | 0.1128 | 844.0 | 703.9 | |
| 0.00 | 3.72 | 0.00 | 1.86 | 4.29 | 289.41 | -6.41 | 112.95 | 0.1215 | 1029.0 | 709.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 5.61 | 289.31 | -6.51 | 102.03 | 0.1159 | 1007.0 | 792.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 16.15 | 287.35 | -8.47 | 41.55 | 0.2144 | -762.0 | -601.5 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 5.12 | 286.85 | -8.98 | 101.59 | 0.1594 | 837.0 | 675.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.37 | 285.43 | -10.39 | 98.59 | 0.1824 | 908.0 | 706.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.42 | 285.03 | -10.79 | 97.96 | 0.1890 | 993.0 | 890.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.66 | 284.97 | -10.86 | 96.65 | 0.1896 | 826.0 | 707.3 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 15.74 | 283.65 | -12.17 | 52.81 | 0.2559 | -839.0 | -545.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.70 | 283.69 | -12.13 | 100.31 | 0.2139 | 742.0 | 589.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 8.33 | 283.45 | -12.37 | 83.17 | 0.2145 | 983.0 | 717.9 | |
| 0.00 | 1.77 | 0.00 | 0.90 | 4.33 | 283.38 | -12.44 | 101.68 | 0.2203 | 853.0 | 683.2 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 15.36 | 282.97 | -12.85 | 55.45 | 0.2616 | -879.0 | -718.0 | |
| 0.00 | 2.30 | 0.00 | 1.17 | 8.19 | 282.80 | -13.02 | 84.03 | 0.2253 | 848.0 | 633.5 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 5.74 | 282.21 | -13.61 | 94.68 | 0.2360 | 837.0 | 715.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 7.81 | 274.28 | -21.54 | 86.55 | 0.3661 | 693.0 | 591.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
