SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.29 | 465.68 | 56.99 | 285.31 | -10.53 | 264.61 | -31.21 | 119.35 | 0.5832 | 258.7 | 83.8 | |
|
previous
or next observation for the same group /

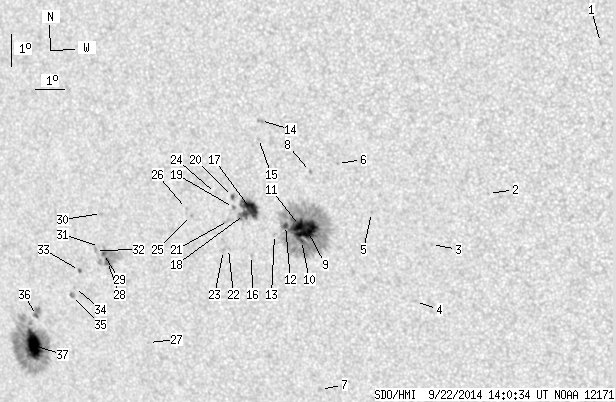

back to the solar disc SDO HMI 2014-09-22 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.84 | -2.71 | 279.07 | -16.75 | 119.67 | 0.3328 | 790.0 | 604.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -7.50 | 275.34 | -20.48 | 125.04 | 0.4255 | 657.0 | 582.3 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -9.18 | 273.38 | -22.44 | 125.62 | 0.4655 | 743.0 | 549.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -11.00 | 272.71 | -23.11 | 127.90 | 0.4903 | 707.0 | 528.6 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -8.27 | 271.45 | -24.37 | 121.80 | 0.4825 | 645.0 | 444.4 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -6.80 | 270.40 | -25.42 | 118.09 | 0.4851 | -604.0 | -406.9 | |
| 0.00 | 2.04 | 0.00 | 1.21 | -13.99 | 269.16 | -26.66 | 128.49 | 0.5584 | 556.0 | 455.3 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -7.10 | 269.47 | -26.35 | 117.74 | 0.4996 | 762.0 | 635.8 | |
| 20.00 | 211.72 | 11.55 | 122.39 | -8.95 | 269.24 | -26.58 | 120.72 | 0.5162 | 1121.3 | 361.0 | |
| 1.59 | -9.00 | 0.92 | -9.00 | -9.28 | 269.01 | -26.81 | 121.04 | 0.5217 | 710.2 | 999999 | |
| 12.48 | -9.00 | 7.22 | -9.00 | -8.81 | 268.98 | -26.84 | 120.23 | 0.5185 | 1003.1 | 999999 | |
| 2.48 | -9.00 | 1.44 | -9.00 | -8.84 | 268.50 | -27.33 | 119.82 | 0.5249 | 665.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -9.14 | 268.09 | -27.73 | 119.95 | 0.5323 | 523.0 | 409.5 | |
| 0.00 | 2.74 | 0.00 | 1.58 | -5.62 | 267.86 | -27.96 | 113.70 | 0.5117 | 663.0 | 623.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -6.18 | 267.76 | -28.06 | 114.62 | 0.5165 | 722.0 | 603.7 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -9.85 | 267.23 | -28.59 | 120.32 | 0.5484 | 663.0 | 513.3 | |
| 17.08 | 30.71 | 10.01 | 18.03 | -8.37 | 267.33 | -28.49 | 118.01 | 0.5367 | 933.2 | 598.5 | |
| 4.25 | -17.00 | 2.50 | -17.00 | -8.58 | 267.10 | -28.72 | 118.15 | 0.5410 | 750.8 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.10 | -8.38 | 266.74 | -29.09 | 117.52 | 0.5444 | 607.0 | 423.8 | |
| 0.97 | 2.57 | 0.57 | 1.51 | -8.04 | 266.73 | -29.09 | 116.95 | 0.5422 | 704.5 | 538.3 | |
| 0.00 | 3.63 | 0.00 | 2.15 | -8.80 | 266.53 | -29.30 | 118.02 | 0.5499 | 522.0 | 410.2 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -9.68 | 266.44 | -29.38 | 119.36 | 0.5570 | 623.0 | 456.1 | |
| 0.00 | 1.59 | 0.00 | 0.95 | -9.75 | 266.26 | -29.56 | 119.32 | 0.5598 | 690.0 | 555.8 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -7.98 | 266.14 | -29.68 | 116.38 | 0.5495 | 519.0 | 360.7 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -8.72 | 265.23 | -30.59 | 116.86 | 0.5660 | 656.0 | 472.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -8.51 | 265.07 | -30.75 | 116.40 | 0.5667 | 508.0 | 509.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -12.86 | 263.18 | -32.64 | 121.44 | 0.6185 | 526.0 | 431.8 | |
| 2.66 | 28.68 | 1.67 | 17.97 | -10.38 | 262.02 | -33.81 | 117.00 | 0.6165 | -948.0 | -521.1 | |
| 1.15 | -28.00 | 0.72 | -28.00 | -10.13 | 261.90 | -33.92 | 116.56 | 0.6165 | -990.3 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -8.88 | 261.97 | -33.85 | 114.74 | 0.6083 | -710.0 | -548.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -9.92 | 261.78 | -34.04 | 116.17 | 0.6167 | -464.0 | -578.7 | |
| 0.00 | 1.77 | 0.00 | 1.11 | -10.06 | 261.61 | -34.21 | 116.26 | 0.6195 | -682.0 | -599.2 | |
| 0.80 | 1.86 | 0.51 | 1.18 | -10.74 | 260.93 | -34.89 | 116.78 | 0.6318 | 428.2 | 312.9 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -11.29 | 260.66 | -35.16 | 117.39 | 0.6382 | -680.0 | -565.1 | |
| 0.00 | 3.01 | 0.00 | 1.94 | -11.55 | 260.55 | -35.27 | 117.68 | 0.6411 | -782.0 | -663.1 | |
| 1.15 | 6.55 | 0.76 | 4.32 | -12.30 | 259.06 | -36.76 | 117.72 | 0.6628 | -828.5 | -733.1 | |
| 28.68 | 147.64 | 19.12 | 98.64 | -13.27 | 258.78 | -37.04 | 118.85 | 0.6717 | -924.1 | -198.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
