SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.35 | 0.00 | 4.27 | -20.60 | 311.12 | 15.85 | 209.13 | 0.5287 | -125.2 | -192.1 | |
|
previous
or next observation for the same group /

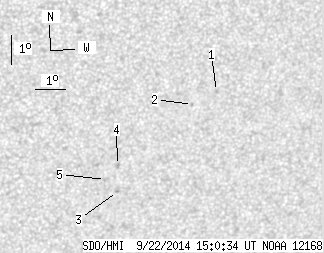

back to the solar disc SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.77 | -18.66 | 313.36 | 18.08 | 214.50 | 0.5213 | 755.0 | 598.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -19.06 | 312.60 | 17.33 | 212.92 | 0.5200 | 717.0 | 580.1 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -21.93 | 310.40 | 15.13 | 206.74 | 0.5400 | -670.0 | -544.8 | |
| 0.00 | 1.95 | 0.00 | 1.13 | -21.04 | 310.30 | 15.03 | 207.41 | 0.5278 | -671.0 | -573.8 | |
| 0.00 | 1.59 | 0.00 | 0.93 | -21.50 | 309.95 | 14.68 | 206.44 | 0.5315 | -757.0 | -576.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
