SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.43 | 972.43 | 164.75 | 938.90 | -11.09 | 238.89 | -56.38 | 107.54 | 0.8572 | -37.6 | -32.8 | |
|
previous
or next observation for the same group /

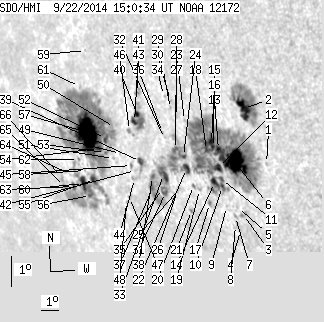

back to the solar disc SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.73 | -10.82 | 244.95 | -50.32 | 109.19 | 0.8026 | 481.0 | 486.7 | |
| 15.49 | 66.64 | 12.87 | 55.17 | -9.17 | 244.20 | -51.07 | 106.95 | 0.8051 | 773.1 | 471.1 | |
| 0.00 | 3.10 | 0.00 | 2.69 | -12.58 | 243.36 | -51.91 | 110.68 | 0.8232 | 490.0 | 582.3 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -13.12 | 243.05 | -52.22 | 111.18 | 0.8277 | 324.0 | 324.2 | |
| 0.00 | 1.15 | 0.00 | 1.00 | -12.38 | 243.11 | -52.16 | 110.36 | 0.8249 | 294.0 | 278.3 | |
| 34.87 | 330.37 | 29.86 | 286.79 | -10.94 | 243.40 | -51.87 | 108.78 | 0.8179 | 832.2 | 247.7 | |
| 0.00 | 1.77 | 0.00 | 1.55 | -12.69 | 242.92 | -52.35 | 110.64 | 0.8275 | 537.0 | 460.9 | |
| 0.00 | 2.30 | 0.00 | 2.03 | -12.98 | 242.84 | -52.43 | 110.95 | 0.8292 | 491.0 | 440.8 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -12.41 | 242.55 | -52.72 | 110.19 | 0.8301 | 461.0 | 377.1 | |
| 1.15 | -6.00 | 1.01 | -6.00 | -11.78 | 242.52 | -52.75 | 109.45 | 0.8285 | 602.4 | 999999 | |
| 1.50 | -6.00 | 1.32 | -6.00 | -11.56 | 242.53 | -52.74 | 109.20 | 0.8278 | 634.7 | 999999 | |
| 4.78 | -6.00 | 4.19 | -6.00 | -11.18 | 242.48 | -52.79 | 108.75 | 0.8272 | 481.4 | 999999 | |
| 2.04 | -6.00 | 1.77 | -6.00 | -10.60 | 242.63 | -52.64 | 108.12 | 0.8242 | 685.3 | 999999 | |
| 4.42 | -6.00 | 3.92 | -6.00 | -11.69 | 242.14 | -53.13 | 109.22 | 0.8318 | 478.3 | 999999 | |
| 1.42 | -6.00 | 1.24 | -6.00 | -10.57 | 242.39 | -52.89 | 108.00 | 0.8264 | 531.1 | 999999 | |
| 3.27 | -6.00 | 2.87 | -6.00 | -10.42 | 242.32 | -52.95 | 107.80 | 0.8266 | 543.6 | 999999 | |
| 0.53 | 1.95 | 0.48 | 1.76 | -12.40 | 241.67 | -53.60 | 109.87 | 0.8380 | 435.3 | 336.1 | |
| 1.42 | -6.00 | 1.25 | -6.00 | -10.70 | 241.99 | -53.28 | 108.02 | 0.8304 | 227.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.45 | -12.00 | 241.27 | -54.00 | 109.28 | 0.8405 | 297.0 | 271.7 | |
| 0.53 | 1.15 | 0.49 | 1.05 | -11.90 | 240.98 | -54.29 | 109.07 | 0.8428 | 329.7 | 294.0 | |
| 0.00 | 1.42 | 0.00 | 1.32 | -12.73 | 240.61 | -54.66 | 109.89 | 0.8482 | 332.0 | 270.7 | |
| 4.51 | 109.74 | 4.13 | 103.67 | -11.39 | 240.76 | -54.51 | 108.41 | 0.8434 | 327.9 | -114.0 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -9.86 | 241.06 | -54.21 | 106.75 | 0.8367 | -209.0 | -199.9 | |
| 1.33 | -22.00 | 1.21 | -22.00 | -11.02 | 240.70 | -54.57 | 107.97 | 0.8429 | 407.9 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.65 | -12.08 | 240.17 | -55.10 | 109.01 | 0.8503 | 467.0 | 329.2 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -12.16 | 240.04 | -55.23 | 109.05 | 0.8516 | 437.0 | 396.1 | |
| 0.00 | 1.59 | 0.00 | 1.45 | -9.77 | 240.66 | -54.61 | 106.52 | 0.8402 | -224.0 | -219.4 | |
| 2.21 | -22.00 | 2.04 | -22.00 | -10.84 | 240.33 | -54.95 | 107.64 | 0.8458 | -311.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -9.55 | 240.39 | -54.88 | 106.19 | 0.8420 | -490.0 | -431.7 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -9.29 | 240.46 | -54.82 | 105.91 | 0.8408 | -613.0 | -504.6 | |
| 2.48 | -22.00 | 2.38 | -22.00 | -12.29 | 239.34 | -55.93 | 108.98 | 0.8579 | 289.5 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.41 | -10.55 | 239.81 | -55.46 | 107.15 | 0.8496 | -169.0 | -202.0 | |
| 8.32 | -22.00 | 7.91 | -22.00 | -11.72 | 239.41 | -55.86 | 108.36 | 0.8559 | 91.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -9.17 | 240.11 | -55.16 | 105.67 | 0.8437 | -510.0 | -541.6 | |
| 1.15 | -22.00 | 1.10 | -22.00 | -12.18 | 239.21 | -56.06 | 108.81 | 0.8588 | 360.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -10.36 | 239.75 | -55.52 | 106.93 | 0.8497 | -354.0 | -314.7 | |
| 2.30 | -22.00 | 2.25 | -22.00 | -12.21 | 238.64 | -56.63 | 108.67 | 0.8636 | -452.9 | 999999 | |
| 1.59 | -22.00 | 1.54 | -22.00 | -11.85 | 238.76 | -56.51 | 108.30 | 0.8617 | -420.5 | 999999 | |
| 2.92 | 8.14 | 2.87 | 7.99 | -11.43 | 238.21 | -57.06 | 107.67 | 0.8653 | -780.1 | -433.2 | |
| 2.74 | 23.10 | 2.64 | 22.25 | -9.93 | 238.49 | -56.78 | 106.07 | 0.8596 | -756.9 | -548.9 | |
| 0.00 | 3.45 | 0.00 | 3.29 | -9.23 | 238.67 | -56.60 | 105.32 | 0.8564 | -612.0 | -509.0 | |
| 0.00 | 1.24 | 0.00 | 1.23 | -11.76 | 237.82 | -57.45 | 107.92 | 0.8693 | -578.0 | -532.5 | |
| 2.48 | -40.00 | 2.41 | -40.00 | -10.18 | 238.25 | -57.02 | 106.27 | 0.8621 | -702.0 | 999999 | |
| 0.00 | 2.48 | 0.00 | 2.48 | -12.03 | 237.68 | -57.60 | 108.17 | 0.8711 | -246.0 | -321.1 | |
| 0.00 | 1.42 | 0.00 | 1.42 | -11.62 | 237.64 | -57.63 | 107.71 | 0.8705 | -610.0 | -575.5 | |
| 0.44 | 2.21 | 0.44 | 2.18 | -10.50 | 237.87 | -57.40 | 106.52 | 0.8660 | -611.6 | -478.0 | |
| 0.00 | 1.68 | 0.00 | 1.72 | -12.68 | 237.15 | -58.12 | 108.74 | 0.8768 | -592.0 | -504.7 | |
| 0.00 | 0.62 | 0.00 | 0.64 | -12.83 | 236.92 | -58.35 | 108.83 | 0.8789 | -511.0 | -471.0 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -11.30 | 237.10 | -58.17 | 107.20 | 0.8741 | -477.0 | -511.3 | |
| 0.00 | 0.44 | 0.00 | 0.45 | -10.50 | 237.01 | -58.26 | 106.28 | 0.8732 | -324.0 | -341.6 | |
| 0.00 | 0.62 | 0.00 | 0.64 | -11.51 | 236.62 | -58.65 | 107.29 | 0.8784 | -626.0 | -573.4 | |
| 3.01 | 385.59 | 3.10 | 415.87 | -10.91 | 236.34 | -58.93 | 106.55 | 0.8794 | -841.9 | -241.1 | |
| 0.71 | -52.00 | 0.74 | -52.00 | -11.37 | 236.19 | -59.08 | 107.01 | 0.8815 | -772.8 | 999999 | |
| 1.77 | -52.00 | 1.86 | -52.00 | -11.28 | 235.79 | -59.48 | 106.81 | 0.8844 | -815.0 | 999999 | |
| 5.49 | -52.00 | 5.95 | -52.00 | -12.33 | 235.17 | -60.10 | 107.78 | 0.8913 | -572.7 | 999999 | |
| 1.33 | -52.00 | 1.47 | -52.00 | -12.88 | 234.69 | -60.58 | 108.25 | 0.8959 | -604.3 | 999999 | |
| 46.64 | -52.00 | 49.83 | -52.00 | -10.84 | 235.27 | -60.00 | 106.18 | 0.8876 | -627.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.78 | -12.10 | 234.69 | -60.58 | 107.39 | 0.8944 | -434.0 | -414.6 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -8.22 | 235.92 | -59.35 | 103.45 | 0.8775 | -368.0 | -374.3 | |
| 6.64 | -52.00 | 7.39 | -52.00 | -12.54 | 234.39 | -60.88 | 107.79 | 0.8975 | -536.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -9.41 | 235.23 | -60.04 | 104.60 | 0.8852 | -166.0 | -155.3 | |
| 0.00 | 1.15 | 0.00 | 1.27 | -11.79 | 234.37 | -60.90 | 106.97 | 0.8962 | -260.0 | -211.6 | |
| 1.95 | -52.00 | 2.22 | -52.00 | -12.71 | 233.67 | -61.60 | 107.78 | 0.9030 | -122.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.61 | -12.30 | 233.38 | -61.89 | 107.27 | 0.9043 | 357.0 | 330.3 | |
| 0.00 | 2.39 | 0.00 | 2.80 | -12.78 | 233.04 | -62.23 | 107.69 | 0.9075 | 365.0 | 328.2 | |
| 0.00 | 2.21 | 0.00 | 2.58 | -12.50 | 233.03 | -62.24 | 107.39 | 0.9071 | 397.0 | 348.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
