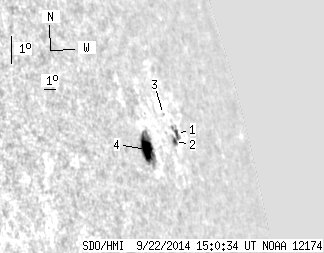

SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.43 | 44.24 | 27.39 | 70.24 | 15.58 | 8.17 | 72.90 | 284.14 | 0.9505 | 166.7 | -120.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.77 | 9.73 | 3.23 | 17.57 | 15.66 | 10.82 | 75.55 | 284.34 | 0.9636 | -231.9 | -268.5 | |
| 1.59 | -1.00 | 2.84 | -1.00 | 15.46 | 10.35 | 75.08 | 284.12 | 0.9616 | -469.7 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.92 | 16.35 | 9.97 | 74.70 | 285.03 | 0.9595 | -291.0 | -320.0 | |
| 14.07 | 33.98 | 21.32 | 51.75 | 15.57 | 7.31 | 72.04 | 284.09 | 0.9462 | 333.3 | -58.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
