SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.72 | 0.00 | 6.14 | 6.67 | 332.54 | 38.37 | 271.69 | 0.6182 | 156.2 | 44.6 | |
|
previous
or next observation for the same group /

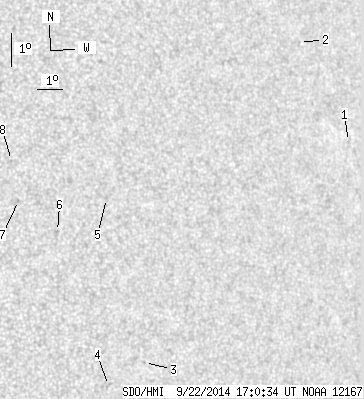

back to the solar disc SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.14 | 8.61 | 340.74 | 46.57 | 275.20 | 0.7233 | -380.0 | -306.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 11.76 | 339.17 | 45.00 | 279.62 | 0.7045 | -599.0 | -480.3 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 2.67 | 331.83 | 37.67 | 265.25 | 0.6148 | 606.0 | 518.6 | |
| 0.00 | 2.03 | 0.00 | 1.25 | 2.08 | 330.45 | 36.29 | 263.95 | 0.5970 | -566.0 | -494.3 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 7.70 | 330.74 | 36.58 | 273.44 | 0.5938 | 241.0 | 282.9 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 6.85 | 328.83 | 34.66 | 271.84 | 0.5672 | 747.0 | 570.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 7.87 | 327.49 | 33.32 | 273.63 | 0.5474 | 680.0 | 604.4 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 9.09 | 327.36 | 33.19 | 275.86 | 0.5455 | 521.0 | 390.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
