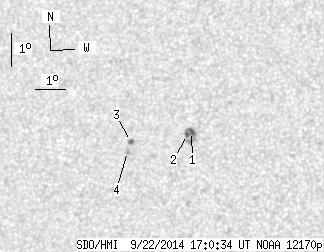

SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.49 | 18.49 | 2.89 | 9.74 | 15.87 | 275.92 | -18.25 | 62.06 | 0.3424 | -166.3 | -451.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.83 | 14.33 | 1.49 | 7.53 | 16.01 | 276.41 | -17.76 | 61.15 | 0.3362 | -1051.8 | -820.2 | |
| 1.42 | -1.00 | 0.74 | -1.00 | 15.91 | 276.29 | -17.88 | 61.56 | 0.3373 | -886.8 | 999999 | |
| 1.24 | 2.48 | 0.66 | 1.32 | 15.63 | 274.43 | -19.74 | 64.33 | 0.3624 | 941.6 | 785.4 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 15.32 | 274.36 | -19.81 | 65.19 | 0.3616 | 955.0 | 829.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
