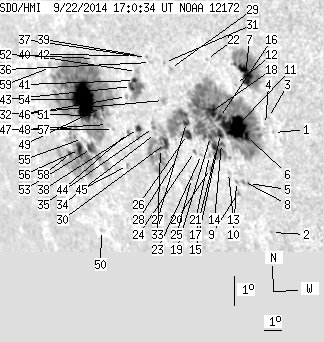

SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.01 | 1006.72 | 160.36 | 943.79 | -11.02 | 238.88 | -55.29 | 107.81 | 0.8476 | -16.1 | -45.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.43 | -10.87 | 245.18 | -48.98 | 109.76 | 0.7896 | 571.0 | 569.5 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -14.13 | 244.23 | -49.94 | 113.24 | 0.8100 | 262.0 | 196.6 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -10.41 | 245.05 | -49.12 | 109.15 | 0.7894 | 492.0 | 321.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.65 | 244.86 | -49.31 | 109.37 | 0.7922 | 725.0 | 689.7 | |
| 0.00 | 1.33 | 0.00 | 1.12 | -12.64 | 243.54 | -50.62 | 111.23 | 0.8114 | 606.0 | 530.5 | |
| 3.45 | 389.92 | 2.86 | 331.87 | -11.13 | 243.84 | -50.33 | 109.56 | 0.8037 | 1070.6 | 222.3 | |
| 14.86 | 67.95 | 12.04 | 54.87 | -9.15 | 244.22 | -49.95 | 107.32 | 0.7938 | 868.7 | 494.4 | |
| 0.00 | 2.39 | 0.00 | 2.02 | -12.60 | 243.31 | -50.86 | 111.09 | 0.8135 | 663.0 | 559.3 | |
| 0.00 | 1.95 | 0.00 | 1.67 | -13.02 | 242.89 | -51.27 | 111.43 | 0.8187 | 523.0 | 440.1 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -12.63 | 242.96 | -51.21 | 111.00 | 0.8169 | 515.0 | 483.2 | |
| 36.19 | -6.00 | 30.27 | -6.00 | -10.89 | 243.36 | -50.81 | 109.10 | 0.8076 | 888.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -9.51 | 243.67 | -50.50 | 107.57 | 0.8004 | 360.0 | 340.9 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -12.38 | 242.63 | -51.54 | 110.58 | 0.8192 | 493.0 | 429.8 | |
| 0.88 | -6.00 | 0.76 | -6.00 | -11.47 | 242.53 | -51.64 | 109.49 | 0.8174 | 703.0 | 999999 | |
| 3.72 | -6.00 | 3.17 | -6.00 | -11.16 | 242.56 | -51.61 | 109.13 | 0.8161 | 568.3 | 999999 | |
| 2.48 | -6.00 | 2.10 | -6.00 | -10.65 | 242.64 | -51.53 | 108.56 | 0.8139 | 694.0 | 999999 | |
| 5.31 | -6.00 | 4.58 | -6.00 | -11.66 | 242.23 | -51.94 | 109.60 | 0.8207 | 538.4 | 999999 | |
| 8.76 | -6.00 | 7.48 | -6.00 | -10.49 | 242.27 | -51.89 | 108.25 | 0.8169 | 565.1 | 999999 | |
| 1.86 | -6.00 | 1.61 | -6.00 | -11.30 | 242.02 | -52.15 | 109.11 | 0.8216 | 334.9 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.86 | -12.34 | 241.74 | -52.43 | 110.22 | 0.8273 | 460.0 | 330.5 | |
| 0.00 | 1.86 | 0.00 | 1.62 | -11.92 | 241.80 | -52.36 | 109.76 | 0.8255 | 302.0 | 202.0 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -8.86 | 242.39 | -51.78 | 106.35 | 0.8112 | 411.0 | 336.4 | |
| 0.00 | 0.97 | 0.00 | 0.86 | -11.93 | 241.39 | -52.77 | 109.62 | 0.8292 | 397.0 | 347.5 | |
| 0.53 | 1.50 | 0.47 | 1.34 | -11.87 | 241.05 | -53.12 | 109.44 | 0.8322 | 366.8 | 307.7 | |
| 0.00 | 1.42 | 0.00 | 1.28 | -12.77 | 240.63 | -53.54 | 110.32 | 0.8385 | 269.0 | 250.7 | |
| 5.13 | -6.00 | 4.56 | -6.00 | -11.36 | 240.83 | -53.33 | 108.77 | 0.8327 | 318.2 | 999999 | |
| 2.74 | -6.00 | 2.43 | -6.00 | -10.98 | 240.88 | -53.28 | 108.34 | 0.8312 | 393.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.05 | -12.16 | 240.08 | -54.09 | 109.43 | 0.8417 | 460.0 | 378.3 | |
| 0.00 | 1.42 | 0.00 | 1.25 | -9.33 | 240.46 | -53.70 | 106.30 | 0.8308 | -710.0 | -558.2 | |
| 4.87 | 51.05 | 4.48 | 47.67 | -11.77 | 239.56 | -54.61 | 108.82 | 0.8452 | 382.8 | -100.0 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -9.17 | 240.19 | -53.98 | 106.03 | 0.8329 | -505.0 | -464.0 | |
| 0.00 | 4.16 | 0.00 | 3.76 | -10.39 | 239.84 | -54.33 | 107.33 | 0.8392 | -297.0 | -219.1 | |
| 0.27 | -30.00 | 0.25 | -30.00 | -11.96 | 239.23 | -54.93 | 108.93 | 0.8486 | 314.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.06 | -11.51 | 239.10 | -55.07 | 108.37 | 0.8486 | -400.0 | -371.5 | |
| 0.44 | 3.63 | 0.41 | 3.37 | -11.32 | 239.05 | -55.12 | 108.14 | 0.8486 | -652.6 | -573.6 | |
| 0.00 | 1.50 | 0.00 | 1.36 | -9.25 | 239.43 | -54.73 | 105.89 | 0.8400 | -695.0 | -594.7 | |
| 0.00 | 1.15 | 0.00 | 1.05 | -9.11 | 239.25 | -54.92 | 105.68 | 0.8413 | -599.0 | -531.3 | |
| 2.74 | 7.08 | 2.61 | 6.75 | -11.44 | 238.19 | -55.98 | 108.01 | 0.8562 | -728.2 | -438.7 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -9.09 | 238.83 | -55.34 | 105.53 | 0.8451 | -573.0 | -575.4 | |
| 0.00 | 2.57 | 0.00 | 2.39 | -9.62 | 238.59 | -55.58 | 106.06 | 0.8484 | -448.0 | -449.0 | |
| 1.95 | 23.89 | 1.82 | 22.41 | -9.92 | 238.41 | -55.76 | 106.35 | 0.8507 | -914.1 | -579.2 | |
| 0.00 | 1.50 | 0.00 | 1.40 | -9.12 | 238.55 | -55.62 | 105.48 | 0.8476 | -618.0 | -551.1 | |
| 3.10 | -41.00 | 2.92 | -41.00 | -10.13 | 238.18 | -55.98 | 106.52 | 0.8532 | -819.7 | 999999 | |
| 0.71 | 1.95 | 0.69 | 1.89 | -11.63 | 237.58 | -56.59 | 108.04 | 0.8619 | -554.6 | -481.3 | |
| 0.00 | 1.68 | 0.00 | 1.66 | -12.72 | 237.16 | -57.01 | 109.12 | 0.8680 | -630.0 | -553.1 | |
| 0.00 | 1.59 | 0.00 | 1.52 | -10.48 | 237.81 | -56.36 | 106.81 | 0.8572 | -643.0 | -508.6 | |
| 0.00 | 1.15 | 0.00 | 1.14 | -11.63 | 236.72 | -57.44 | 107.77 | 0.8689 | -645.0 | -528.5 | |
| 0.00 | 1.77 | 0.00 | 1.77 | -11.50 | 236.42 | -57.75 | 107.55 | 0.8711 | -591.0 | -518.9 | |
| 1.95 | 410.89 | 1.95 | 428.60 | -10.99 | 236.24 | -57.93 | 106.92 | 0.8715 | -859.5 | -270.7 | |
| 0.00 | 1.42 | 0.00 | 1.54 | -15.05 | 234.66 | -59.51 | 110.90 | 0.8926 | 253.0 | 164.9 | |
| 1.59 | -49.00 | 1.62 | -49.00 | -11.29 | 235.79 | -58.38 | 107.12 | 0.8758 | -851.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.96 | -9.45 | 236.28 | -57.89 | 105.22 | 0.8679 | -333.0 | -328.3 | |
| 5.93 | -49.00 | 6.21 | -49.00 | -12.39 | 235.16 | -59.01 | 108.16 | 0.8831 | -626.6 | 999999 | |
| 52.64 | -49.00 | 54.38 | -49.00 | -10.85 | 235.22 | -58.95 | 106.48 | 0.8794 | -732.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -12.13 | 234.72 | -59.45 | 107.74 | 0.8860 | -537.0 | -496.0 | |
| 7.52 | -49.00 | 8.08 | -49.00 | -12.51 | 234.39 | -59.78 | 108.07 | 0.8892 | -587.7 | 999999 | |
| 0.71 | -49.00 | 0.76 | -49.00 | -11.85 | 234.39 | -59.78 | 107.35 | 0.8879 | -341.9 | 999999 | |
| 1.68 | -49.00 | 1.85 | -49.00 | -12.71 | 233.75 | -60.42 | 108.10 | 0.8944 | -164.5 | 999999 | |
| 0.00 | 3.63 | 0.00 | 3.93 | -10.04 | 233.46 | -60.71 | 105.12 | 0.8915 | 172.0 | 168.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
