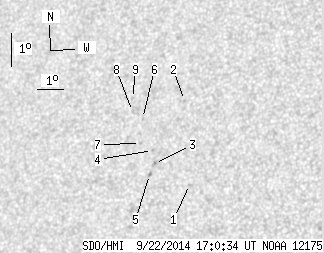

SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.45 | 0.00 | 5.77 | 14.98 | 258.57 | -35.60 | 74.10 | 0.5870 | 542.8 | 414.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.42 | 13.78 | 260.19 | -33.98 | 75.76 | 0.5622 | 592.0 | 495.4 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 16.31 | 259.54 | -34.63 | 71.56 | 0.5771 | 810.0 | 621.3 | |
| 0.00 | 1.59 | 0.00 | 0.97 | 14.33 | 258.77 | -35.40 | 75.15 | 0.5828 | 706.0 | 546.8 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 14.71 | 258.62 | -35.54 | 74.53 | 0.5856 | 767.0 | 639.8 | |
| 0.00 | 1.59 | 0.00 | 0.97 | 13.98 | 258.64 | -35.53 | 75.77 | 0.5839 | -495.0 | -296.5 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 15.65 | 258.06 | -36.11 | 73.10 | 0.5954 | 687.0 | 576.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 14.89 | 258.13 | -36.04 | 74.35 | 0.5927 | 621.0 | 513.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 15.84 | 257.63 | -36.54 | 72.91 | 0.6015 | 576.0 | 514.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 16.23 | 257.54 | -36.62 | 72.29 | 0.6035 | 621.0 | 545.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
