SDO HMI 2014-09-22 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.80 | 0.00 | 6.53 | 15.29 | 258.87 | -34.74 | 73.35 | 0.5761 | 577.5 | 495.7 | |
|
previous
or next observation for the same group /

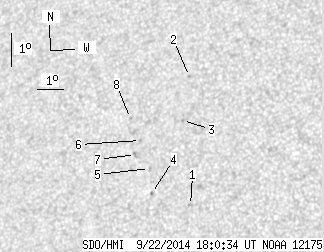

back to the solar disc SDO HMI 2014-09-22 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.16 | 13.77 | 260.31 | -33.31 | 75.63 | 0.5527 | 601.0 | 502.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 17.67 | 259.54 | -34.07 | 69.05 | 0.5738 | 762.0 | 662.1 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 16.31 | 259.55 | -34.06 | 71.36 | 0.5694 | 884.0 | 644.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 14.03 | 258.80 | -34.81 | 75.53 | 0.5742 | -420.0 | -330.1 | |
| 0.00 | 1.50 | 0.00 | 0.91 | 14.78 | 258.59 | -35.02 | 74.29 | 0.5786 | 708.0 | 638.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 15.60 | 258.09 | -35.52 | 73.03 | 0.5873 | 688.0 | 583.9 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 15.17 | 257.99 | -35.63 | 73.79 | 0.5877 | 662.0 | 675.7 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 16.24 | 257.57 | -36.04 | 72.11 | 0.5958 | 735.0 | 562.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
