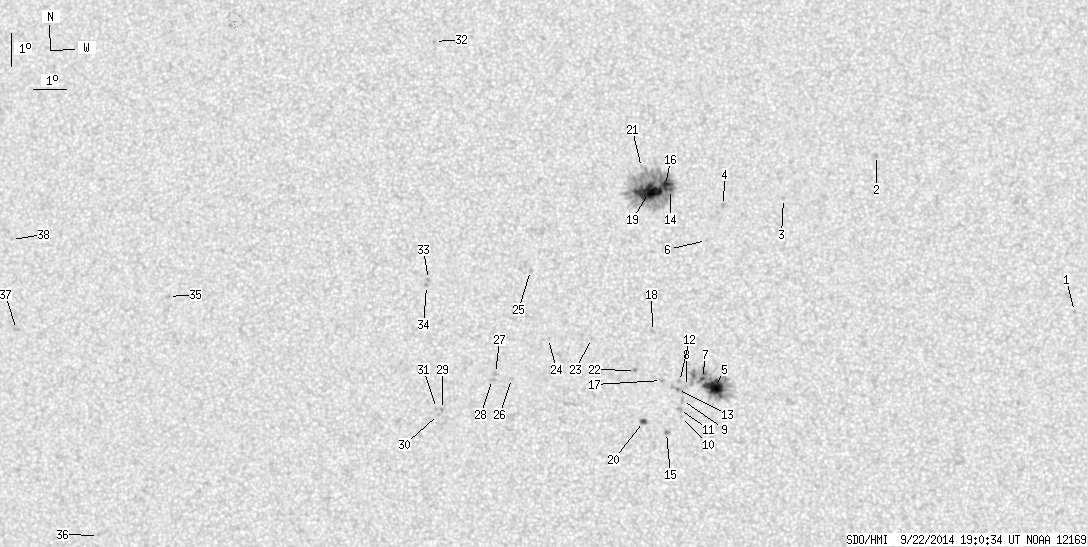

SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.76 | 283.19 | 27.20 | 140.93 | 8.57 | 289.90 | -3.17 | 83.06 | 0.0828 | -472.2 | -390.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.71 | 7.29 | 302.69 | 9.63 | 272.09 | 0.1668 | 812.0 | 496.3 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 12.08 | 296.70 | 3.64 | 324.80 | 0.1082 | -877.0 | -696.0 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 10.80 | 293.84 | 0.77 | 348.54 | 0.0672 | -933.0 | -744.6 | |
| 0.00 | 1.68 | 0.00 | 0.83 | 10.59 | 292.00 | -1.06 | 16.39 | 0.0648 | -1054.0 | -904.4 | |
| 20.61 | 76.00 | 10.22 | 37.68 | 5.12 | 291.74 | -1.33 | 145.56 | 0.0409 | -1271.3 | -627.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 9.54 | 291.49 | -1.58 | 31.95 | 0.0515 | -953.0 | -673.4 | |
| 1.33 | -5.00 | 0.66 | -5.00 | 5.39 | 291.37 | -1.69 | 134.54 | 0.0414 | -1197.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.15 | 290.89 | -2.17 | 131.22 | 0.0504 | -812.0 | -727.3 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 4.72 | 290.77 | -2.29 | 135.40 | 0.0570 | -921.0 | -707.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.24 | 290.74 | -2.32 | 140.39 | 0.0636 | -714.0 | -493.6 | |
| 0.00 | 2.92 | 0.00 | 1.45 | 4.45 | 290.68 | -2.38 | 137.45 | 0.0615 | -938.0 | -742.2 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 5.29 | 290.68 | -2.38 | 126.31 | 0.0516 | -866.0 | -636.8 | |
| 0.00 | 5.22 | 0.00 | 2.59 | 5.05 | 290.62 | -2.44 | 129.20 | 0.0551 | -918.0 | -750.9 | |
| 0.27 | 152.96 | 0.13 | 76.09 | 11.07 | 290.38 | -2.69 | 33.20 | 0.0844 | -1006.3 | -484.4 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 3.76 | 290.29 | -2.77 | 139.84 | 0.0752 | 895.0 | 749.4 | |
| 5.13 | -14.00 | 2.55 | -14.00 | 11.19 | 290.22 | -2.84 | 33.88 | 0.0876 | -1241.8 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 5.32 | 290.14 | -2.93 | 120.45 | 0.0593 | -784.0 | -703.1 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 6.79 | 289.86 | -3.21 | 94.30 | 0.0560 | 719.0 | 436.3 | |
| 25.74 | -14.00 | 12.80 | -14.00 | 10.98 | 289.70 | -3.36 | 39.93 | 0.0901 | -1335.3 | 999999 | |
| 1.68 | 3.54 | 0.84 | 1.76 | 4.09 | 289.60 | -3.47 | 130.43 | 0.0796 | 1118.3 | 841.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.73 | 289.48 | -3.58 | 36.78 | 0.1027 | -59.0 | -36.9 | |
| 0.00 | 1.68 | 0.00 | 0.83 | 5.62 | 289.35 | -3.72 | 110.91 | 0.0694 | 1083.0 | 867.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 6.57 | 288.01 | -5.06 | 95.10 | 0.0883 | 948.0 | 677.5 | |
| 0.00 | 0.71 | 0.00 | 0.35 | 6.56 | 286.70 | -6.36 | 94.04 | 0.1109 | 944.0 | 712.2 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 8.59 | 286.12 | -6.94 | 76.86 | 0.1233 | 771.0 | 645.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.34 | 285.59 | -7.48 | 102.51 | 0.1333 | 822.0 | 681.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 5.48 | 285.10 | -7.97 | 100.72 | 0.1411 | 842.0 | 688.1 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 5.30 | 285.01 | -8.06 | 101.84 | 0.1432 | 992.0 | 765.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.37 | 283.49 | -9.57 | 105.18 | 0.1726 | 1160.0 | 903.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 4.22 | 283.37 | -9.69 | 105.83 | 0.1753 | 848.0 | 689.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 4.40 | 283.31 | -9.76 | 104.74 | 0.1755 | 785.0 | 665.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 15.46 | 282.92 | -10.15 | 48.89 | 0.2264 | -892.0 | -719.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 8.27 | 282.99 | -10.07 | 82.35 | 0.1754 | 908.0 | 764.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 8.09 | 282.93 | -10.13 | 83.41 | 0.1761 | 1018.0 | 848.9 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 7.53 | 274.87 | -18.20 | 87.32 | 0.3113 | 883.0 | 638.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 0.24 | 272.79 | -20.27 | 107.75 | 0.3654 | 678.0 | 544.2 | |
| 0.00 | 1.68 | 0.00 | 0.90 | 6.33 | 269.99 | -23.07 | 90.40 | 0.3911 | 768.0 | 681.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 9.03 | 269.68 | -23.39 | 83.52 | 0.3962 | 658.0 | 538.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
