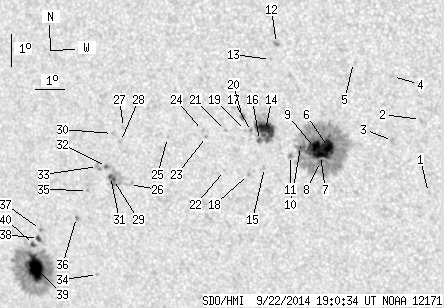

SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.17 | 481.05 | 58.71 | 285.97 | -10.49 | 264.78 | -28.28 | 121.89 | 0.5471 | 235.4 | 76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.14 | 272.73 | -20.33 | 130.08 | 0.4489 | 700.0 | 474.5 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -7.86 | 272.61 | -20.46 | 125.78 | 0.4285 | 709.0 | 482.3 | |
| 0.00 | 2.83 | 0.00 | 1.57 | -8.55 | 271.66 | -21.41 | 125.82 | 0.4470 | 778.0 | 639.7 | |
| 0.00 | 1.86 | 0.00 | 1.02 | -6.56 | 271.76 | -21.30 | 122.16 | 0.4281 | 536.0 | 406.6 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -6.19 | 270.51 | -22.56 | 119.93 | 0.4419 | 548.0 | 587.0 | |
| 13.62 | 221.44 | 7.67 | 124.90 | -8.87 | 269.53 | -23.54 | 123.81 | 0.4768 | 1365.8 | 375.5 | |
| 8.58 | -6.00 | 4.85 | -6.00 | -9.14 | 269.24 | -23.82 | 123.94 | 0.4826 | 1069.0 | 999999 | |
| 2.21 | -6.00 | 1.25 | -6.00 | -9.33 | 269.23 | -23.84 | 124.25 | 0.4844 | 726.9 | 999999 | |
| 15.22 | -6.00 | 8.60 | -6.00 | -8.90 | 269.06 | -24.00 | 123.32 | 0.4829 | 1046.0 | 999999 | |
| 0.80 | -6.00 | 0.45 | -6.00 | -8.89 | 268.59 | -24.47 | 122.79 | 0.4888 | 762.3 | 999999 | |
| 0.35 | 2.30 | 0.20 | 1.31 | -9.19 | 268.23 | -24.83 | 122.92 | 0.4958 | 621.0 | 443.0 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -5.73 | 267.98 | -25.08 | 116.42 | 0.4729 | 930.0 | 760.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -6.23 | 267.76 | -25.31 | 117.15 | 0.4795 | 718.0 | 621.5 | |
| 21.85 | 42.29 | 12.48 | 24.16 | -8.45 | 267.45 | -25.62 | 120.83 | 0.5000 | 1008.0 | 492.4 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -9.61 | 267.32 | -25.74 | 122.68 | 0.5108 | 643.0 | 594.3 | |
| 1.15 | -14.00 | 0.66 | -14.00 | -8.77 | 267.22 | -25.84 | 121.16 | 0.5055 | 595.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.22 | -8.51 | 266.97 | -26.09 | 120.45 | 0.5066 | 524.0 | 476.0 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -9.86 | 266.76 | -26.31 | 122.52 | 0.5199 | 692.0 | 600.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.49 | 266.77 | -26.30 | 120.22 | 0.5091 | 475.0 | 389.2 | |
| 1.42 | 2.83 | 0.81 | 1.62 | -8.06 | 266.70 | -26.37 | 119.41 | 0.5068 | 795.1 | 599.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -8.53 | 266.08 | -26.98 | 119.63 | 0.5182 | 605.0 | 406.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -9.78 | 265.94 | -27.12 | 121.59 | 0.5295 | 556.0 | 393.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -8.75 | 265.41 | -27.65 | 119.39 | 0.5285 | 681.0 | 575.9 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -8.57 | 265.29 | -27.77 | 118.98 | 0.5288 | 648.0 | 480.5 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -8.86 | 264.05 | -29.01 | 118.38 | 0.5468 | -737.0 | -536.2 | |
| 0.00 | 2.83 | 0.00 | 1.71 | -10.43 | 262.56 | -30.50 | 119.60 | 0.5763 | 244.0 | 7.6 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -8.65 | 262.53 | -30.54 | 116.79 | 0.5649 | -701.0 | -565.3 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -9.09 | 262.38 | -30.68 | 117.38 | 0.5696 | -729.0 | -549.4 | |
| 1.06 | 18.93 | 0.65 | 11.50 | -10.31 | 262.00 | -31.06 | 118.96 | 0.5824 | -1192.6 | -674.5 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -8.86 | 262.12 | -30.95 | 116.81 | 0.5715 | -705.0 | -595.8 | |
| 1.24 | -29.00 | 0.75 | -29.00 | -10.22 | 261.91 | -31.16 | 118.75 | 0.5830 | -949.8 | 999999 | |
| 0.80 | 2.74 | 0.48 | 1.67 | -9.91 | 261.80 | -31.27 | 118.20 | 0.5823 | -879.4 | -775.5 | |
| 0.00 | 4.07 | 0.00 | 2.48 | -9.93 | 261.47 | -31.59 | 117.98 | 0.5865 | -550.0 | -525.6 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -13.38 | 261.02 | -32.04 | 122.66 | 0.6153 | -740.0 | -578.8 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -10.72 | 261.02 | -32.04 | 118.81 | 0.5972 | 603.0 | 434.7 | |
| 0.35 | 1.50 | 0.22 | 0.94 | -11.60 | 260.51 | -32.56 | 119.72 | 0.6092 | -762.8 | -656.0 | |
| 0.35 | 1.42 | 0.22 | 0.90 | -12.08 | 259.11 | -33.95 | 119.36 | 0.6288 | -803.2 | -711.8 | |
| 2.03 | 3.89 | 1.30 | 2.48 | -12.38 | 259.00 | -34.07 | 119.69 | 0.6321 | -859.4 | -665.0 | |
| 26.72 | 150.22 | 17.21 | 96.93 | -13.35 | 258.73 | -34.33 | 120.84 | 0.6414 | -1192.4 | -267.5 | |
| 1.42 | -39.00 | 0.91 | -39.00 | -12.58 | 258.78 | -34.28 | 119.82 | 0.6359 | -782.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
