SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 188.80 | 1028.11 | 171.71 | 937.14 | -11.05 | 238.89 | -54.18 | 108.20 | 0.8379 | -34.3 | -40.3 | |
|
previous
or next observation for the same group /

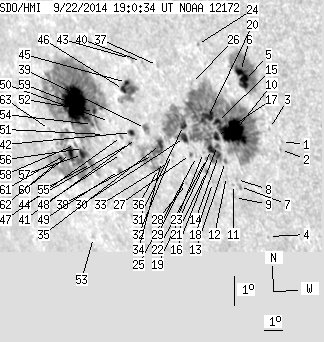

back to the solar disc SDO HMI 2014-09-22 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.34 | -11.00 | 245.67 | -47.39 | 110.56 | 0.7739 | -544.0 | -485.4 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -11.26 | 245.57 | -47.50 | 110.83 | 0.7759 | -331.0 | -288.6 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -10.64 | 245.20 | -47.86 | 109.92 | 0.7774 | 412.0 | 441.9 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -14.15 | 244.27 | -48.79 | 113.74 | 0.7992 | 209.0 | 233.5 | |
| 10.09 | 68.39 | 7.98 | 53.95 | -9.22 | 244.33 | -48.73 | 107.84 | 0.7817 | 914.8 | 516.0 | |
| 6.02 | -5.00 | 4.76 | -5.00 | -8.95 | 244.19 | -48.87 | 107.47 | 0.7823 | 869.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.83 | -12.65 | 243.31 | -49.75 | 111.58 | 0.8031 | 661.0 | 577.5 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -12.43 | 243.23 | -49.84 | 111.30 | 0.8032 | 575.0 | 434.8 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -13.03 | 242.97 | -50.10 | 111.90 | 0.8077 | 558.0 | 440.5 | |
| 38.40 | 403.95 | 31.27 | 335.32 | -10.93 | 243.46 | -49.61 | 109.59 | 0.7960 | 999.5 | 236.1 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -12.61 | 243.03 | -50.03 | 111.43 | 0.8057 | 474.0 | 493.2 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -12.38 | 242.76 | -50.31 | 111.06 | 0.8076 | 338.0 | 358.9 | |
| 0.00 | 1.86 | 0.00 | 1.54 | -11.90 | 242.83 | -50.23 | 110.52 | 0.8052 | 654.0 | 539.0 | |
| 2.65 | -10.00 | 2.22 | -10.00 | -11.74 | 242.54 | -50.53 | 110.22 | 0.8076 | 668.3 | 999999 | |
| 3.10 | -10.00 | 2.56 | -10.00 | -10.65 | 242.75 | -50.31 | 109.00 | 0.8021 | 752.9 | 999999 | |
| 1.15 | -10.00 | 0.96 | -10.00 | -11.42 | 242.57 | -50.49 | 109.85 | 0.8063 | 715.5 | 999999 | |
| 3.80 | -10.00 | 3.16 | -10.00 | -11.14 | 242.59 | -50.47 | 109.52 | 0.8052 | 581.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -12.65 | 242.00 | -51.06 | 111.08 | 0.8156 | 291.0 | 337.0 | |
| 4.51 | -10.00 | 3.79 | -10.00 | -11.58 | 242.24 | -50.83 | 109.91 | 0.8100 | 562.1 | 999999 | |
| 10.79 | -10.00 | 9.00 | -10.00 | -10.57 | 242.29 | -50.77 | 108.74 | 0.8064 | 542.2 | 999999 | |
| 0.44 | 1.42 | 0.38 | 1.21 | -12.32 | 241.79 | -51.27 | 110.62 | 0.8165 | 441.0 | 332.9 | |
| 0.00 | 1.06 | 0.00 | 0.90 | -11.90 | 241.91 | -51.15 | 110.17 | 0.8141 | 220.0 | 230.6 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -11.72 | 241.81 | -51.26 | 109.92 | 0.8145 | 199.0 | 161.3 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -8.30 | 242.28 | -50.79 | 106.00 | 0.7998 | 384.0 | 308.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -11.88 | 241.42 | -51.65 | 109.97 | 0.8187 | 299.0 | 288.3 | |
| 0.00 | 1.15 | 0.00 | 0.96 | -9.56 | 241.73 | -51.33 | 107.34 | 0.8088 | -464.0 | -437.3 | |
| 0.53 | 1.68 | 0.46 | 1.45 | -11.85 | 241.13 | -51.94 | 109.82 | 0.8213 | 385.0 | 278.4 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -12.81 | 240.65 | -52.41 | 110.77 | 0.8286 | 311.0 | 246.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -12.65 | 240.64 | -52.42 | 110.58 | 0.8281 | 326.0 | 280.0 | |
| 4.51 | -10.00 | 3.90 | -10.00 | -11.33 | 240.96 | -52.10 | 109.16 | 0.8213 | 366.3 | 999999 | |
| 3.89 | -10.00 | 3.35 | -10.00 | -10.95 | 241.01 | -52.05 | 108.73 | 0.8197 | 455.2 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.80 | -11.95 | 240.13 | -52.93 | 109.59 | 0.8307 | 478.0 | 380.8 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -12.22 | 239.90 | -53.16 | 109.82 | 0.8336 | 364.0 | 336.1 | |
| 0.00 | 1.33 | 0.00 | 1.19 | -12.23 | 239.54 | -53.53 | 109.71 | 0.8369 | 353.0 | 303.1 | |
| 4.25 | 44.06 | 3.79 | 39.99 | -11.68 | 239.64 | -53.42 | 109.11 | 0.8344 | 354.5 | -52.6 | |
| 1.06 | -35.00 | 0.96 | -35.00 | -12.47 | 239.30 | -53.76 | 109.91 | 0.8396 | 225.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.54 | -9.16 | 240.12 | -52.94 | 106.34 | 0.8232 | -629.0 | -513.5 | |
| 0.71 | -35.00 | 0.64 | -35.00 | -12.04 | 239.17 | -53.89 | 109.37 | 0.8396 | 336.5 | 999999 | |
| 1.68 | 6.37 | 1.52 | 5.76 | -11.25 | 238.98 | -54.08 | 108.39 | 0.8392 | -604.8 | -491.0 | |
| 0.00 | 1.24 | 0.00 | 1.10 | -9.12 | 239.31 | -53.76 | 106.03 | 0.8307 | -617.0 | -535.0 | |
| 0.00 | 1.15 | 0.00 | 1.06 | -11.62 | 238.40 | -54.67 | 108.63 | 0.8454 | -600.0 | -523.2 | |
| 2.48 | 4.60 | 2.29 | 4.26 | -11.45 | 238.18 | -54.88 | 108.37 | 0.8468 | -798.8 | -662.2 | |
| 0.00 | 3.54 | 0.00 | 3.17 | -9.08 | 238.74 | -54.32 | 105.82 | 0.8358 | -739.0 | -553.1 | |
| 0.71 | 1.68 | 0.66 | 1.57 | -11.82 | 237.96 | -55.10 | 108.72 | 0.8497 | -124.4 | -179.8 | |
| 1.59 | 27.43 | 1.45 | 25.04 | -9.87 | 238.34 | -54.72 | 106.61 | 0.8414 | -869.3 | -610.1 | |
| 3.45 | -45.00 | 3.17 | -45.00 | -10.11 | 238.12 | -54.94 | 106.82 | 0.8440 | -808.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.67 | -11.64 | 237.58 | -55.48 | 108.39 | 0.8525 | -667.0 | -536.3 | |
| 0.00 | 0.44 | 0.00 | 0.42 | -12.19 | 237.41 | -55.66 | 108.96 | 0.8554 | -537.0 | -494.6 | |
| 0.71 | 2.30 | 0.68 | 2.21 | -12.76 | 237.11 | -55.95 | 109.50 | 0.8594 | -676.4 | -560.2 | |
| 0.00 | 0.80 | 0.00 | 0.76 | -11.23 | 237.05 | -56.02 | 107.76 | 0.8561 | -666.0 | -535.2 | |
| 0.00 | 1.06 | 0.00 | 1.03 | -11.68 | 236.63 | -56.43 | 108.14 | 0.8607 | -579.0 | -490.7 | |
| 1.95 | 428.81 | 1.89 | 433.13 | -10.99 | 236.28 | -56.78 | 107.26 | 0.8620 | -875.7 | -278.8 | |
| 0.00 | 1.42 | 0.00 | 1.49 | -15.16 | 234.67 | -58.39 | 111.36 | 0.8846 | 308.0 | 180.1 | |
| 1.06 | -52.00 | 1.04 | -52.00 | -11.43 | 236.03 | -57.03 | 107.67 | 0.8651 | -664.8 | 999999 | |
| 3.18 | -52.00 | 3.20 | -52.00 | -12.71 | 235.54 | -57.52 | 108.95 | 0.8721 | -714.9 | 999999 | |
| 0.27 | -52.00 | 0.27 | -52.00 | -12.27 | 235.23 | -57.83 | 108.37 | 0.8735 | -725.0 | 999999 | |
| 3.98 | -52.00 | 4.04 | -52.00 | -12.47 | 235.10 | -57.96 | 108.55 | 0.8750 | -681.7 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.99 | -12.19 | 234.79 | -58.27 | 108.15 | 0.8769 | -576.0 | -515.8 | |
| 61.93 | -52.00 | 61.97 | -52.00 | -10.89 | 235.17 | -57.90 | 106.82 | 0.8710 | -778.9 | 999999 | |
| 6.72 | -52.00 | 6.98 | -52.00 | -12.52 | 234.38 | -58.69 | 108.39 | 0.8809 | -633.2 | 999999 | |
| 1.24 | -52.00 | 1.30 | -52.00 | -12.58 | 234.05 | -59.01 | 108.37 | 0.8835 | -205.4 | 999999 | |
| 1.95 | -52.00 | 2.07 | -52.00 | -12.74 | 233.75 | -59.31 | 108.46 | 0.8862 | -290.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.23 | -11.87 | 233.34 | -59.72 | 107.39 | 0.8875 | -115.0 | -84.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
