SDO HMI 2014-09-22 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.17 | 0.00 | 5.44 | -12.55 | 286.97 | -5.54 | 166.96 | 0.3751 | 584.2 | 478.9 | |
|
previous
or next observation for the same group /

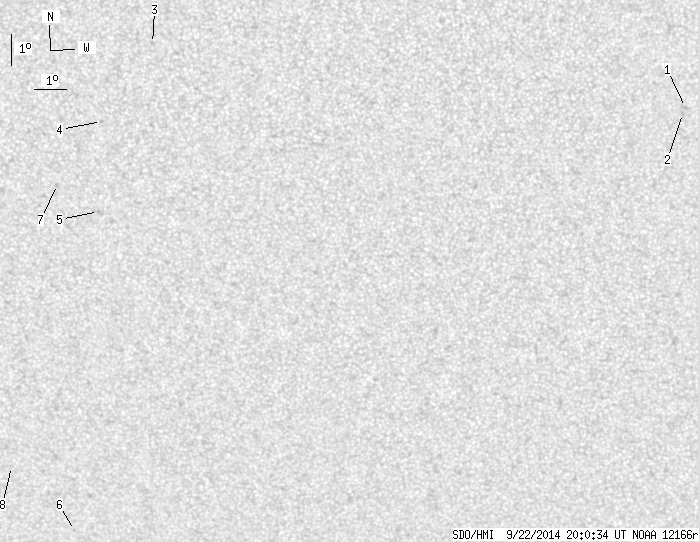

back to the solar disc SDO HMI 2014-09-22 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 0.97 | -10.18 | 299.88 | 7.37 | 203.15 | 0.3224 | 738.0 | 501.9 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.37 | 299.79 | 7.28 | 202.67 | 0.3247 | 743.0 | 527.3 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -8.18 | 283.59 | -8.92 | 149.56 | 0.3043 | 585.0 | 406.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.66 | 281.94 | -10.57 | 149.17 | 0.3534 | 1019.0 | 837.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.54 | 281.72 | -10.79 | 152.49 | 0.3957 | 909.0 | 701.0 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -24.26 | 280.17 | -12.34 | 159.35 | 0.5547 | 675.0 | 530.9 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -12.70 | 280.47 | -12.04 | 148.74 | 0.3938 | 651.0 | 530.4 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -22.09 | 278.27 | -14.24 | 154.76 | 0.5365 | -646.0 | -528.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
