SDO HMI 2014-09-22 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.19 | 476.79 | 59.82 | 281.93 | -10.45 | 264.79 | -27.72 | 122.35 | 0.5398 | 170.1 | 98.6 | |
|
previous
or next observation for the same group /

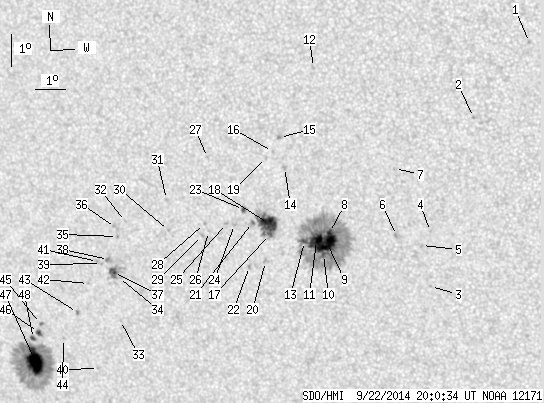

back to the solar disc SDO HMI 2014-09-22 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.74 | -2.50 | 276.18 | -16.33 | 119.79 | 0.3252 | 802.0 | 661.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -4.86 | 274.36 | -18.15 | 122.82 | 0.3710 | 746.0 | 669.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.17 | 272.73 | -19.78 | 130.93 | 0.4428 | 688.0 | 518.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -8.45 | 272.83 | -19.68 | 127.98 | 0.4243 | 793.0 | 626.7 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.90 | 272.51 | -20.00 | 128.36 | 0.4326 | 772.0 | 623.9 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -8.62 | 271.72 | -20.79 | 126.75 | 0.4399 | 829.0 | 710.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -6.53 | 271.76 | -20.75 | 122.81 | 0.4205 | 677.0 | 614.1 | |
| 2.65 | 214.72 | 1.49 | 120.56 | -8.63 | 269.52 | -22.99 | 124.00 | 0.4677 | 1254.4 | 383.2 | |
| 20.70 | -8.00 | 11.62 | -8.00 | -8.97 | 269.43 | -23.08 | 124.52 | 0.4719 | 1255.4 | 999999 | |
| 1.50 | -8.00 | 0.85 | -8.00 | -9.33 | 269.27 | -23.24 | 124.95 | 0.4769 | 722.6 | 999999 | |
| 14.77 | -8.00 | 8.31 | -8.00 | -8.90 | 269.07 | -23.44 | 123.96 | 0.4758 | 1056.2 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -3.55 | 269.23 | -23.28 | 113.79 | 0.4328 | 121.0 | 123.9 | |
| 2.30 | -8.00 | 1.30 | -8.00 | -8.95 | 268.67 | -23.84 | 123.59 | 0.4813 | 731.3 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -6.68 | 268.15 | -24.36 | 118.92 | 0.4700 | 769.0 | 573.4 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -5.75 | 268.03 | -24.48 | 117.05 | 0.4649 | 908.0 | 783.1 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -6.20 | 267.77 | -24.74 | 117.65 | 0.4716 | 755.0 | 629.9 | |
| 1.59 | 39.02 | 0.91 | 22.19 | -8.79 | 267.51 | -25.00 | 122.05 | 0.4948 | 775.8 | 576.2 | |
| 17.43 | -17.00 | 9.90 | -17.00 | -8.45 | 267.50 | -25.01 | 121.45 | 0.4922 | 1071.9 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -6.40 | 267.56 | -24.95 | 117.81 | 0.4759 | 414.0 | 403.6 | |
| 0.00 | 2.48 | 0.00 | 1.42 | -9.65 | 267.31 | -25.20 | 123.30 | 0.5043 | 791.0 | 583.1 | |
| 0.44 | 1.95 | 0.25 | 1.11 | -8.44 | 266.96 | -25.55 | 120.89 | 0.4991 | 666.4 | 498.1 | |
| 0.00 | 1.77 | 0.00 | 1.02 | -9.83 | 266.75 | -25.76 | 123.02 | 0.5128 | 761.0 | 641.1 | |
| 1.24 | 2.74 | 0.71 | 1.57 | -8.05 | 266.69 | -25.83 | 119.94 | 0.4997 | 823.9 | 633.9 | |
| 0.00 | 1.86 | 0.00 | 1.07 | -8.54 | 266.34 | -26.17 | 120.44 | 0.5078 | -135.0 | -45.6 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -8.52 | 266.07 | -26.44 | 120.15 | 0.5112 | 643.0 | 447.5 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -8.81 | 265.44 | -27.07 | 120.03 | 0.5215 | 763.0 | 589.8 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -6.50 | 265.57 | -26.94 | 116.15 | 0.5036 | 785.0 | 571.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.57 | 265.32 | -27.19 | 119.51 | 0.5213 | 619.0 | 479.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.95 | 265.22 | -27.29 | 120.05 | 0.5253 | 782.0 | 540.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -8.86 | 264.06 | -28.45 | 118.86 | 0.5396 | -763.0 | -540.7 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -7.89 | 264.07 | -28.44 | 117.26 | 0.5328 | 477.0 | 384.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -8.67 | 262.57 | -29.94 | 117.30 | 0.5574 | -766.0 | -635.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -11.81 | 262.06 | -30.45 | 121.72 | 0.5855 | -681.0 | -599.2 | |
| 0.00 | 2.57 | 0.00 | 1.55 | -10.45 | 262.15 | -30.36 | 119.75 | 0.5747 | -496.0 | -571.2 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -9.16 | 262.24 | -30.27 | 117.82 | 0.5648 | -776.0 | -646.2 | |
| 0.00 | 3.27 | 0.00 | 1.96 | -8.88 | 262.20 | -30.31 | 117.34 | 0.5635 | -772.0 | -590.0 | |
| 4.87 | 12.83 | 2.94 | 7.75 | -10.30 | 261.98 | -30.53 | 119.39 | 0.5757 | -1065.7 | -561.9 | |
| 0.00 | 3.36 | 0.00 | 2.03 | -9.90 | 261.85 | -30.66 | 118.66 | 0.5747 | -953.0 | -847.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -10.04 | 261.58 | -30.93 | 118.67 | 0.5790 | -672.0 | -526.8 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -13.41 | 261.05 | -31.46 | 123.17 | 0.6088 | -635.0 | -492.2 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -9.99 | 261.45 | -31.06 | 118.48 | 0.5803 | -560.0 | -438.9 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -10.71 | 261.04 | -31.47 | 119.25 | 0.5901 | 491.0 | 390.2 | |
| 0.00 | 1.68 | 0.00 | 1.04 | -11.66 | 260.53 | -31.98 | 120.25 | 0.6027 | -854.0 | -669.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.53 | 259.90 | -32.61 | 121.00 | 0.6160 | -715.0 | -564.9 | |
| 0.35 | 1.68 | 0.22 | 1.06 | -12.10 | 259.11 | -33.40 | 119.80 | 0.6225 | -860.0 | -744.5 | |
| 2.30 | 3.36 | 1.46 | 2.13 | -12.40 | 259.00 | -33.51 | 120.13 | 0.6258 | -927.4 | -706.6 | |
| 29.37 | 152.08 | 18.79 | 97.47 | -13.34 | 258.74 | -33.77 | 121.25 | 0.6350 | -1197.1 | -267.0 | |
| 1.68 | -47.00 | 1.07 | -47.00 | -12.60 | 258.78 | -33.73 | 120.26 | 0.6296 | -760.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
