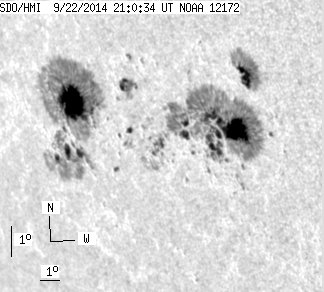

SDO HMI 2014-09-22 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.93 | 1080.26 | 169.36 | 955.56 | -11.08 | 238.92 | -53.03 | 108.62 | 0.8276 | -57.2 | -20.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.68 | -11.37 | 245.61 | -46.34 | 111.46 | 0.7644 | -490.0 | -333.8 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -12.09 | 245.37 | -46.59 | 112.23 | 0.7697 | 420.0 | 279.6 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -10.29 | 245.48 | -46.48 | 110.05 | 0.7618 | -424.0 | -278.8 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -14.23 | 244.32 | -47.64 | 114.34 | 0.7884 | 217.0 | 238.7 | |
| 0.71 | 1.86 | 0.54 | 1.43 | -10.89 | 245.09 | -46.87 | 110.63 | 0.7680 | 732.4 | 627.0 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -14.19 | 243.30 | -48.66 | 113.86 | 0.7981 | 378.0 | 295.1 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -12.77 | 243.55 | -48.41 | 112.27 | 0.7905 | 611.0 | 472.9 | |
| 13.80 | 71.40 | 10.68 | 55.04 | -9.15 | 244.30 | -47.66 | 108.16 | 0.7703 | 886.0 | 545.6 | |
| 0.00 | 1.95 | 0.00 | 1.56 | -12.04 | 243.55 | -48.41 | 111.40 | 0.7879 | 535.0 | 449.5 | |
| 0.00 | 2.57 | 0.00 | 2.07 | -12.69 | 243.38 | -48.57 | 112.11 | 0.7918 | 648.0 | 575.9 | |
| 0.00 | 1.50 | 0.00 | 1.22 | -12.39 | 243.23 | -48.73 | 111.69 | 0.7923 | 709.0 | 601.4 | |
| 36.81 | 425.47 | 29.27 | 343.99 | -10.91 | 243.48 | -48.47 | 110.01 | 0.7846 | 1050.8 | 280.3 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -12.95 | 242.94 | -49.02 | 112.24 | 0.7971 | 551.0 | 463.4 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -12.37 | 242.71 | -49.25 | 111.46 | 0.7973 | 449.0 | 420.0 | |
| 0.00 | 1.86 | 0.00 | 1.51 | -11.92 | 242.83 | -49.13 | 110.97 | 0.7946 | 734.0 | 565.1 | |
| 2.92 | -12.00 | 2.35 | -12.00 | -10.70 | 242.78 | -49.17 | 109.48 | 0.7909 | 757.4 | 999999 | |
| 0.27 | -12.00 | 0.22 | -12.00 | -11.37 | 242.63 | -49.33 | 110.23 | 0.7947 | 717.0 | 999999 | |
| 4.16 | -12.00 | 3.37 | -12.00 | -11.12 | 242.64 | -49.32 | 109.93 | 0.7937 | 611.5 | 999999 | |
| 7.43 | -12.00 | 6.08 | -12.00 | -11.58 | 242.39 | -49.57 | 110.39 | 0.7978 | 625.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -12.46 | 242.17 | -49.79 | 111.34 | 0.8029 | 372.0 | 374.0 | |
| 1.15 | -12.00 | 0.94 | -12.00 | -10.92 | 242.40 | -49.55 | 109.61 | 0.7955 | 430.9 | 999999 | |
| 8.94 | -12.00 | 7.25 | -12.00 | -10.54 | 242.39 | -49.56 | 109.15 | 0.7944 | 620.8 | 999999 | |
| 3.63 | -12.00 | 2.97 | -12.00 | -11.29 | 242.17 | -49.78 | 109.96 | 0.7989 | 445.6 | 999999 | |
| 0.35 | 2.30 | 0.29 | 1.91 | -12.33 | 241.86 | -50.09 | 111.07 | 0.8054 | 407.0 | 359.0 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -12.08 | 241.83 | -50.13 | 110.77 | 0.8048 | 304.0 | 260.4 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -8.27 | 242.37 | -49.59 | 106.38 | 0.7876 | 458.0 | 378.4 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -11.79 | 241.52 | -50.44 | 110.31 | 0.8069 | 340.0 | 187.6 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -16.02 | 240.10 | -51.86 | 114.64 | 0.8338 | 381.0 | 319.0 | |
| 0.00 | 1.50 | 0.00 | 1.26 | -11.59 | 241.33 | -50.63 | 110.00 | 0.8081 | 484.0 | 391.3 | |
| 0.53 | 1.68 | 0.45 | 1.41 | -11.82 | 241.22 | -50.74 | 110.23 | 0.8099 | 416.5 | 292.3 | |
| 0.00 | 1.59 | 0.00 | 1.30 | -9.49 | 241.67 | -50.29 | 107.61 | 0.7984 | -604.0 | -528.8 | |
| 0.00 | 1.68 | 0.00 | 1.37 | -9.28 | 241.61 | -50.35 | 107.34 | 0.7982 | -521.0 | -405.4 | |
| 0.00 | 1.59 | 0.00 | 1.36 | -12.73 | 240.68 | -51.28 | 111.09 | 0.8179 | 437.0 | 316.3 | |
| 2.65 | -12.00 | 2.22 | -12.00 | -10.92 | 241.10 | -50.85 | 109.13 | 0.8082 | 524.7 | 999999 | |
| 5.84 | -12.00 | 4.91 | -12.00 | -11.28 | 240.97 | -50.99 | 109.50 | 0.8106 | 322.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.34 | -15.11 | 239.82 | -52.14 | 113.50 | 0.8333 | -215.0 | -179.2 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -11.98 | 240.24 | -51.72 | 110.06 | 0.8197 | 508.0 | 396.4 | |
| 0.00 | 1.15 | 0.00 | 0.99 | -12.21 | 240.12 | -51.83 | 110.29 | 0.8214 | 525.0 | 427.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -12.24 | 239.87 | -52.09 | 110.22 | 0.8239 | 352.0 | 342.0 | |
| 0.00 | 2.48 | 0.00 | 2.13 | -11.37 | 240.05 | -51.91 | 109.28 | 0.8196 | 279.0 | 128.4 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -12.00 | 239.68 | -52.28 | 109.89 | 0.8249 | 363.0 | 313.8 | |
| 3.27 | 15.57 | 2.84 | 13.59 | -11.65 | 239.73 | -52.23 | 109.49 | 0.8235 | 457.6 | 181.9 | |
| 0.00 | 1.33 | 0.00 | 1.16 | -12.27 | 239.55 | -52.40 | 110.15 | 0.8269 | 48.0 | 78.9 | |
| 0.00 | 2.21 | 0.00 | 1.91 | -11.07 | 239.88 | -52.08 | 108.87 | 0.8203 | -274.0 | -275.6 | |
| 0.00 | 1.06 | 0.00 | 0.90 | -9.14 | 240.13 | -51.83 | 106.68 | 0.8125 | -601.0 | -538.6 | |
| 1.06 | -42.00 | 0.93 | -42.00 | -11.71 | 239.46 | -52.50 | 109.47 | 0.8261 | 253.7 | 999999 | |
| 0.00 | 7.25 | 0.00 | 6.42 | -12.40 | 239.16 | -52.80 | 110.16 | 0.8309 | 114.0 | 109.6 | |
| 0.97 | -42.00 | 0.86 | -42.00 | -12.05 | 239.21 | -52.75 | 109.77 | 0.8294 | 300.9 | 999999 | |
| 0.00 | 3.89 | 0.00 | 3.40 | -11.00 | 239.34 | -52.62 | 108.60 | 0.8251 | -426.0 | -325.5 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -11.59 | 239.13 | -52.82 | 109.21 | 0.8287 | -47.0 | -76.9 | |
| 0.00 | 1.42 | 0.00 | 1.26 | -11.89 | 238.95 | -53.01 | 109.49 | 0.8313 | -333.0 | -295.1 | |
| 0.00 | 1.77 | 0.00 | 1.59 | -12.55 | 238.70 | -53.25 | 110.16 | 0.8354 | -114.0 | -124.8 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -9.74 | 239.40 | -52.56 | 107.15 | 0.8211 | -156.0 | -172.3 | |
| 0.00 | 3.80 | 0.00 | 3.41 | -12.30 | 238.67 | -53.28 | 109.87 | 0.8349 | -394.0 | -313.0 | |
| 0.00 | 1.95 | 0.00 | 1.72 | -11.23 | 238.92 | -53.03 | 108.73 | 0.8296 | -662.0 | -584.1 | |
| 0.00 | 1.42 | 0.00 | 1.22 | -9.13 | 239.33 | -52.63 | 106.40 | 0.8201 | -622.0 | -554.1 | |
| 0.00 | 1.86 | 0.00 | 1.65 | -11.69 | 238.69 | -53.26 | 109.18 | 0.8330 | -517.0 | -419.7 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -11.29 | 238.60 | -53.36 | 108.69 | 0.8328 | -251.0 | -189.1 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -9.37 | 239.02 | -52.94 | 106.59 | 0.8237 | -569.0 | -456.5 | |
| 2.48 | 3.89 | 2.23 | 3.51 | -11.43 | 238.14 | -53.82 | 108.70 | 0.8373 | -766.6 | -693.1 | |
| 0.88 | 2.83 | 0.77 | 2.47 | -9.06 | 238.73 | -53.22 | 106.13 | 0.8256 | -654.3 | -522.3 | |
| 0.00 | 6.81 | 0.00 | 6.18 | -11.89 | 238.01 | -53.95 | 109.18 | 0.8397 | -606.0 | -512.5 | |
| 2.48 | 23.71 | 2.20 | 21.00 | -9.85 | 238.29 | -53.66 | 106.92 | 0.8317 | -871.4 | -536.0 | |
| 3.98 | -63.00 | 3.55 | -63.00 | -10.05 | 238.19 | -53.76 | 107.12 | 0.8332 | -866.3 | 999999 | |
| 0.53 | 1.59 | 0.49 | 1.46 | -11.65 | 237.55 | -54.41 | 108.75 | 0.8432 | -483.5 | -437.2 | |
| 0.00 | 1.15 | 0.00 | 1.06 | -12.24 | 237.38 | -54.58 | 109.36 | 0.8463 | -483.0 | -521.2 | |
| 0.00 | 1.59 | 0.00 | 1.44 | -10.46 | 237.83 | -54.13 | 107.48 | 0.8376 | -559.0 | -525.3 | |
| 1.59 | 2.74 | 1.49 | 2.57 | -12.78 | 237.04 | -54.92 | 109.86 | 0.8506 | -646.0 | -497.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -14.66 | 236.37 | -55.59 | 111.74 | 0.8613 | 285.0 | 286.7 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -11.20 | 237.04 | -54.92 | 108.07 | 0.8465 | -671.0 | -507.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.66 | 236.53 | -55.43 | 108.44 | 0.8521 | -556.0 | -590.3 | |
| 0.00 | 0.62 | 0.00 | 0.60 | -13.11 | 235.72 | -56.24 | 109.80 | 0.8626 | -514.0 | -455.6 | |
| 2.83 | 450.60 | 2.67 | 440.97 | -11.00 | 236.23 | -55.73 | 107.60 | 0.8530 | -874.9 | -296.2 | |
| 1.24 | -73.00 | 1.21 | -73.00 | -12.66 | 235.49 | -56.47 | 109.22 | 0.8634 | -722.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.48 | -9.61 | 236.39 | -55.57 | 106.06 | 0.8483 | -457.0 | -380.6 | |
| 5.31 | -73.00 | 5.22 | -73.00 | -12.47 | 235.15 | -56.80 | 108.91 | 0.8657 | -710.9 | 999999 | |
| 1.68 | -73.00 | 1.67 | -73.00 | -12.73 | 234.78 | -57.18 | 109.08 | 0.8694 | -589.2 | 999999 | |
| 0.80 | -73.00 | 0.79 | -73.00 | -12.25 | 234.83 | -57.13 | 108.57 | 0.8678 | -588.0 | 999999 | |
| 60.25 | -73.00 | 58.40 | -73.00 | -10.89 | 235.21 | -56.75 | 107.16 | 0.8615 | -846.4 | 999999 | |
| 7.70 | -73.00 | 7.73 | -73.00 | -12.49 | 234.40 | -57.55 | 108.70 | 0.8718 | -653.4 | 999999 | |
| 1.33 | -73.00 | 1.32 | -73.00 | -11.75 | 234.48 | -57.47 | 107.91 | 0.8695 | -346.8 | 999999 | |
| 3.36 | -73.00 | 3.45 | -73.00 | -12.78 | 233.71 | -58.25 | 108.81 | 0.8780 | -302.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
