SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.12 | 0.00 | 5.60 | 6.24 | 327.84 | 36.43 | 270.81 | 0.5925 | 656.4 | 536.4 | |
|
previous
or next observation for the same group /

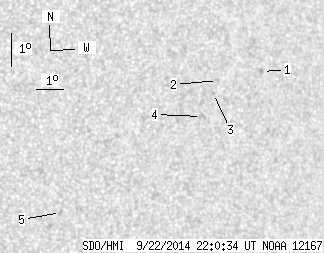

back to the solar disc SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.79 | 7.44 | 330.78 | 39.37 | 273.13 | 0.6322 | 581.0 | 510.0 | |
| 0.00 | 2.04 | 0.00 | 1.27 | 7.30 | 329.02 | 37.61 | 272.81 | 0.6083 | 604.0 | 553.6 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 6.92 | 328.82 | 37.42 | 272.17 | 0.6059 | 708.0 | 558.9 | |
| 0.00 | 3.10 | 0.00 | 1.91 | 6.27 | 328.31 | 36.90 | 271.04 | 0.5992 | 745.0 | 535.9 | |
| 0.00 | 1.86 | 0.00 | 1.08 | 3.74 | 322.99 | 31.58 | 265.68 | 0.5262 | 644.0 | 524.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
