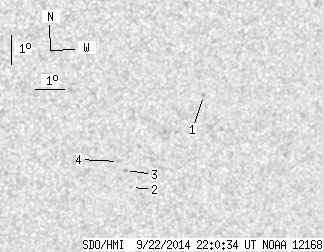

SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.07 | 0.00 | 2.44 | -21.13 | 310.91 | 19.51 | 213.81 | 0.5629 | -364.5 | -231.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.74 | -19.35 | 312.52 | 21.12 | 217.89 | 0.5557 | 625.0 | 526.2 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -22.38 | 310.47 | 19.07 | 211.91 | 0.5737 | -566.0 | -410.5 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -21.79 | 310.19 | 18.78 | 212.12 | 0.5644 | -777.0 | -646.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.47 | 309.90 | 18.50 | 212.06 | 0.5585 | -740.0 | -631.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
