SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.47 | 240.03 | 24.55 | 119.27 | 8.81 | 290.12 | -1.28 | 92.45 | 0.0660 | -603.0 | -465.1 | |
|
previous
or next observation for the same group /

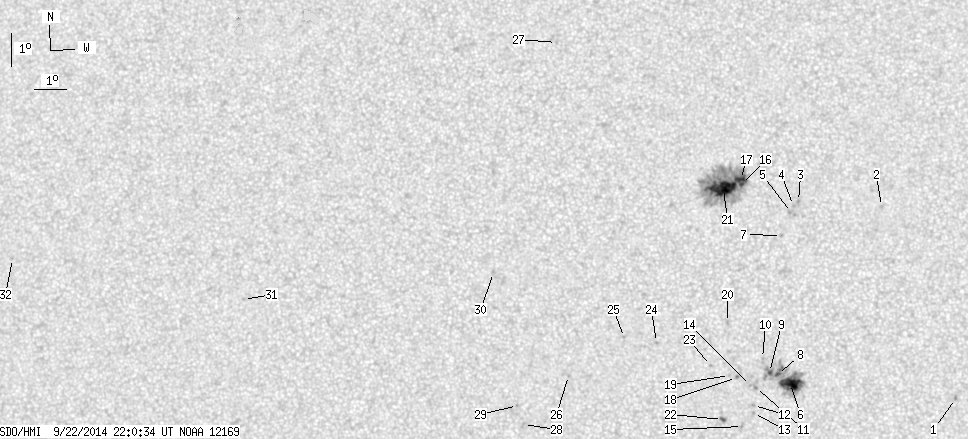

back to the solar disc SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.75 | 4.63 | 296.76 | 5.35 | 245.91 | 0.1023 | 915.0 | 743.8 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.43 | 294.57 | 3.16 | 317.49 | 0.0807 | -815.0 | -583.2 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.60 | 292.03 | 0.63 | 350.16 | 0.0631 | -1098.0 | -830.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 10.48 | 291.88 | 0.47 | 352.28 | 0.0606 | -848.0 | -743.2 | |
| 0.00 | 3.89 | 0.00 | 1.93 | 10.27 | 291.82 | 0.41 | 352.84 | 0.0568 | -777.0 | -751.5 | |
| 15.40 | 65.21 | 7.63 | 32.32 | 5.12 | 291.77 | 0.37 | 190.81 | 0.0344 | -1306.3 | -690.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 9.57 | 291.51 | 0.10 | 357.68 | 0.0443 | -982.0 | -730.3 | |
| 1.33 | -6.00 | 0.66 | -6.00 | 5.39 | 291.38 | -0.02 | 179.20 | 0.0290 | -1184.0 | 999999 | |
| 1.24 | -6.00 | 0.61 | -6.00 | 5.45 | 291.14 | -0.26 | 170.62 | 0.0283 | -1097.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 5.88 | 290.93 | -0.48 | 158.02 | 0.0222 | -697.0 | -565.0 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 5.00 | 290.72 | -0.69 | 161.48 | 0.0378 | -1102.0 | -883.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 4.46 | 290.66 | -0.75 | 163.91 | 0.0472 | -1056.0 | -795.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.22 | 290.66 | -0.75 | 165.21 | 0.0513 | -874.0 | -714.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.06 | 290.57 | -0.84 | 157.17 | 0.0378 | -931.0 | -732.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.83 | 290.33 | -1.08 | 161.48 | 0.0595 | 724.0 | 556.7 | |
| 1.15 | 137.68 | 0.57 | 68.40 | 11.11 | 290.29 | -1.12 | 15.14 | 0.0737 | -1075.4 | -508.9 | |
| 4.25 | -16.00 | 2.11 | -16.00 | 11.26 | 290.25 | -1.15 | 15.00 | 0.0764 | -1143.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.30 | 290.14 | -1.26 | 144.23 | 0.0377 | -1004.0 | -844.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 5.36 | 289.93 | -1.47 | 138.93 | 0.0391 | -649.0 | -441.7 | |
| 0.00 | 1.68 | 0.00 | 0.83 | 6.96 | 289.87 | -1.54 | 93.35 | 0.0268 | 889.0 | 635.7 | |
| 25.22 | -16.00 | 12.53 | -16.00 | 10.99 | 289.73 | -1.67 | 22.60 | 0.0748 | -1322.8 | 999999 | |
| 0.88 | 2.39 | 0.44 | 1.19 | 4.04 | 289.72 | -1.68 | 150.82 | 0.0604 | 1147.2 | 948.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.66 | 289.36 | -2.05 | 124.14 | 0.0432 | 941.0 | 757.7 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.35 | 287.72 | -3.69 | 100.64 | 0.0653 | 1007.0 | 749.6 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.49 | 286.75 | -4.66 | 96.62 | 0.0816 | 838.0 | 647.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.33 | 285.06 | -6.35 | 104.89 | 0.1144 | 882.0 | 771.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 15.37 | 284.49 | -6.92 | 38.60 | 0.1870 | -828.0 | -513.7 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 3.84 | 283.70 | -7.70 | 112.34 | 0.1453 | 841.0 | 675.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.40 | 283.52 | -7.89 | 108.19 | 0.1447 | 976.0 | 792.9 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 8.39 | 282.72 | -8.68 | 80.56 | 0.1521 | 899.0 | 658.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 7.38 | 274.97 | -16.44 | 87.79 | 0.2821 | 876.0 | 608.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 8.31 | 267.44 | -23.97 | 85.38 | 0.4050 | 754.0 | 625.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
