SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 199.44 | 1103.09 | 173.93 | 964.76 | -11.09 | 238.78 | -52.63 | 108.77 | 0.8238 | -23.3 | -29.3 | |
|
previous
or next observation for the same group /

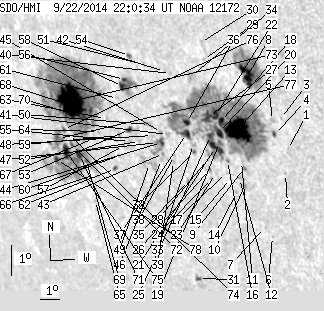

back to the solar disc SDO HMI 2014-09-22 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.80 | -11.32 | 245.70 | -45.71 | 111.66 | 0.7575 | -592.0 | -430.8 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -12.10 | 245.44 | -45.97 | 112.52 | 0.7633 | 268.0 | 250.9 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -10.35 | 245.58 | -45.83 | 110.41 | 0.7551 | -401.0 | -242.6 | |
| 1.06 | 2.83 | 0.81 | 2.15 | -10.89 | 245.21 | -46.20 | 110.92 | 0.7610 | 755.7 | 597.4 | |
| 0.00 | 2.65 | 0.00 | 2.01 | -10.45 | 245.21 | -46.20 | 110.37 | 0.7594 | 238.0 | 242.5 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -14.21 | 244.32 | -47.08 | 114.57 | 0.7829 | 196.0 | 161.8 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -13.95 | 244.03 | -47.38 | 114.12 | 0.7848 | 516.0 | 548.4 | |
| 16.63 | 72.47 | 12.72 | 55.24 | -9.12 | 244.34 | -47.07 | 108.36 | 0.7640 | 937.6 | 519.9 | |
| 0.00 | 2.30 | 0.00 | 1.82 | -12.08 | 243.59 | -47.82 | 111.69 | 0.7821 | 442.0 | 464.4 | |
| 0.00 | 1.95 | 0.00 | 1.55 | -12.70 | 243.43 | -47.97 | 112.37 | 0.7859 | 658.0 | 604.7 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -11.90 | 243.49 | -47.91 | 111.44 | 0.7824 | 524.0 | 433.2 | |
| 0.00 | 1.33 | 0.00 | 1.06 | -12.46 | 243.26 | -48.14 | 112.01 | 0.7867 | 701.0 | 579.3 | |
| 36.90 | 417.01 | 28.98 | 332.60 | -10.89 | 243.54 | -47.87 | 110.22 | 0.7784 | 1096.2 | 299.9 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -12.93 | 243.00 | -48.40 | 112.47 | 0.7910 | 549.0 | 478.2 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -12.50 | 242.83 | -48.57 | 111.89 | 0.7911 | 347.0 | 307.7 | |
| 0.35 | 1.24 | 0.28 | 0.99 | -11.93 | 242.84 | -48.57 | 111.20 | 0.7891 | 508.0 | 504.7 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -12.32 | 242.69 | -48.71 | 111.62 | 0.7919 | 376.0 | 312.8 | |
| 3.19 | -13.00 | 2.54 | -13.00 | -10.71 | 242.79 | -48.61 | 109.71 | 0.7853 | 781.5 | 999999 | |
| 1.42 | -13.00 | 1.14 | -13.00 | -11.38 | 242.59 | -48.81 | 110.45 | 0.7897 | 721.9 | 999999 | |
| 6.37 | -13.00 | 5.10 | -13.00 | -11.07 | 242.62 | -48.79 | 110.08 | 0.7883 | 589.9 | 999999 | |
| 8.23 | -13.00 | 6.65 | -13.00 | -11.56 | 242.36 | -49.04 | 110.58 | 0.7926 | 626.5 | 999999 | |
| 5.22 | -13.00 | 4.17 | -13.00 | -10.54 | 242.60 | -48.81 | 109.43 | 0.7868 | 713.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -12.41 | 242.15 | -49.25 | 111.50 | 0.7975 | 452.0 | 339.1 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -12.59 | 241.91 | -49.49 | 111.62 | 0.8004 | 212.0 | 156.8 | |
| 3.36 | -13.00 | 2.72 | -13.00 | -11.20 | 242.21 | -49.19 | 110.08 | 0.7928 | 445.3 | 999999 | |
| 0.35 | 1.68 | 0.29 | 1.38 | -12.30 | 241.89 | -49.51 | 111.27 | 0.7997 | 435.5 | 359.9 | |
| 6.55 | -13.00 | 5.27 | -13.00 | -10.60 | 242.25 | -49.15 | 109.37 | 0.7904 | 500.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.87 | -11.99 | 241.88 | -49.53 | 110.89 | 0.7987 | 348.0 | 318.7 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -8.81 | 242.38 | -49.03 | 107.24 | 0.7834 | 517.0 | 402.4 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -8.28 | 242.33 | -49.07 | 106.57 | 0.7823 | 381.0 | 354.0 | |
| 1.15 | 2.92 | 1.01 | 2.56 | -15.95 | 240.23 | -51.18 | 114.84 | 0.8276 | 533.5 | 334.0 | |
| 0.62 | 2.83 | 0.51 | 2.35 | -11.79 | 241.30 | -50.10 | 110.44 | 0.8037 | 385.6 | 254.0 | |
| 0.00 | 2.39 | 0.00 | 1.98 | -11.57 | 241.31 | -50.09 | 110.18 | 0.8029 | 439.0 | 325.1 | |
| 0.00 | 6.46 | 0.00 | 5.23 | -9.41 | 241.65 | -49.75 | 107.71 | 0.7927 | -602.0 | -423.1 | |
| 0.00 | 1.33 | 0.00 | 1.12 | -12.76 | 240.75 | -50.65 | 111.37 | 0.8121 | 500.0 | 382.6 | |
| 3.27 | -13.00 | 2.70 | -13.00 | -10.89 | 241.14 | -50.27 | 109.31 | 0.8024 | 526.2 | 999999 | |
| 5.40 | -13.00 | 4.48 | -13.00 | -11.25 | 241.05 | -50.35 | 109.70 | 0.8044 | 342.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -12.02 | 240.27 | -51.13 | 110.32 | 0.8143 | 368.0 | 335.9 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -12.22 | 240.17 | -51.24 | 110.51 | 0.8159 | 500.0 | 387.8 | |
| 0.00 | 1.33 | 0.00 | 1.10 | -9.40 | 240.70 | -50.71 | 107.37 | 0.8023 | -227.0 | -227.3 | |
| 0.00 | 3.45 | 0.00 | 2.93 | -11.37 | 240.09 | -51.31 | 109.50 | 0.8140 | 373.0 | 272.8 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -9.37 | 240.41 | -50.99 | 107.23 | 0.8050 | -584.0 | -562.5 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -12.01 | 239.73 | -51.68 | 110.11 | 0.8194 | 393.0 | 331.6 | |
| 2.57 | 13.18 | 2.20 | 11.37 | -11.66 | 239.72 | -51.68 | 109.70 | 0.8184 | 480.3 | 260.0 | |
| 0.00 | 1.24 | 0.00 | 1.06 | -11.34 | 239.81 | -51.60 | 109.35 | 0.8166 | -256.0 | -199.3 | |
| 0.00 | 1.15 | 0.00 | 0.99 | -12.21 | 239.57 | -51.83 | 110.29 | 0.8214 | 45.0 | 65.8 | |
| 0.97 | -44.00 | 0.84 | -44.00 | -11.68 | 239.52 | -51.89 | 109.65 | 0.8203 | 247.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.38 | -11.48 | 239.32 | -52.09 | 109.35 | 0.8216 | -288.0 | -178.7 | |
| 0.00 | 12.39 | 0.00 | 10.89 | -12.41 | 238.91 | -52.50 | 110.27 | 0.8281 | 15.0 | -75.9 | |
| 0.00 | 4.60 | 0.00 | 3.97 | -11.14 | 239.26 | -52.15 | 108.93 | 0.8212 | -398.0 | -386.3 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -9.25 | 239.40 | -52.00 | 106.75 | 0.8145 | -562.0 | -440.7 | |
| 0.00 | 1.50 | 0.00 | 1.33 | -11.74 | 238.59 | -52.82 | 109.39 | 0.8291 | -602.0 | -471.8 | |
| 2.30 | 5.75 | 2.04 | 5.10 | -11.41 | 238.17 | -53.24 | 108.86 | 0.8320 | -761.8 | -505.1 | |
| 0.97 | 2.65 | 0.84 | 2.29 | -9.04 | 238.75 | -52.66 | 106.28 | 0.8202 | -707.8 | -571.1 | |
| 0.00 | 1.33 | 0.00 | 1.18 | -11.80 | 238.06 | -53.35 | 109.27 | 0.8341 | -375.0 | -354.5 | |
| 1.50 | 21.85 | 1.32 | 19.10 | -9.83 | 238.31 | -53.09 | 107.07 | 0.8264 | -916.2 | -579.5 | |
| 0.00 | 1.86 | 0.00 | 1.68 | -11.96 | 237.70 | -53.71 | 109.34 | 0.8378 | -528.0 | -546.5 | |
| 4.16 | -56.00 | 3.66 | -56.00 | -10.06 | 238.16 | -53.25 | 107.30 | 0.8285 | -842.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.60 | -11.66 | 237.58 | -53.83 | 108.95 | 0.8380 | -529.0 | -517.9 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -12.31 | 237.39 | -54.02 | 109.63 | 0.8415 | -497.0 | -535.5 | |
| 0.00 | 1.42 | 0.00 | 1.26 | -10.47 | 237.80 | -53.61 | 107.66 | 0.8329 | -600.0 | -552.8 | |
| 1.15 | 2.30 | 1.06 | 2.12 | -12.75 | 237.03 | -54.37 | 110.02 | 0.8458 | -685.7 | -542.5 | |
| 0.00 | 0.62 | 0.00 | 0.57 | -11.18 | 236.97 | -54.43 | 108.21 | 0.8421 | -547.0 | -571.6 | |
| 0.00 | 1.50 | 0.00 | 1.40 | -11.64 | 236.47 | -54.94 | 108.57 | 0.8478 | -334.0 | -411.2 | |
| 0.00 | 0.80 | 0.00 | 0.77 | -13.93 | 235.54 | -55.87 | 110.83 | 0.8616 | -428.0 | -411.3 | |
| 0.00 | 0.80 | 0.00 | 0.76 | -13.07 | 235.79 | -55.62 | 109.96 | 0.8573 | -437.0 | -439.6 | |
| 0.00 | 1.68 | 0.00 | 1.58 | -11.90 | 236.12 | -55.29 | 108.75 | 0.8515 | -417.0 | -381.9 | |
| 2.21 | 480.81 | 2.06 | 463.42 | -11.04 | 236.21 | -55.19 | 107.81 | 0.8485 | -890.0 | -301.9 | |
| 1.15 | -68.00 | 1.10 | -68.00 | -12.66 | 235.49 | -55.92 | 109.40 | 0.8588 | -712.1 | 999999 | |
| 3.10 | -68.00 | 2.92 | -68.00 | -11.28 | 235.76 | -55.64 | 107.93 | 0.8530 | -858.4 | 999999 | |
| 3.98 | -68.00 | 3.86 | -68.00 | -12.51 | 235.15 | -56.25 | 109.12 | 0.8612 | -760.6 | 999999 | |
| 1.33 | -68.00 | 1.29 | -68.00 | -12.23 | 234.80 | -56.61 | 108.70 | 0.8635 | -579.2 | 999999 | |
| 54.33 | -68.00 | 51.86 | -68.00 | -10.84 | 235.18 | -56.23 | 107.25 | 0.8570 | -909.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -11.92 | 234.73 | -56.68 | 108.34 | 0.8633 | -533.0 | -594.0 | |
| 7.79 | -68.00 | 7.69 | -68.00 | -12.49 | 234.42 | -56.98 | 108.88 | 0.8672 | -653.0 | 999999 | |
| 1.24 | -68.00 | 1.21 | -68.00 | -11.79 | 234.49 | -56.92 | 108.11 | 0.8650 | -424.7 | 999999 | |
| 7.70 | -68.00 | 7.66 | -68.00 | -12.11 | 234.10 | -57.31 | 108.36 | 0.8690 | -280.4 | 999999 | |
| 2.92 | -68.00 | 2.95 | -68.00 | -12.82 | 233.73 | -57.67 | 109.03 | 0.8735 | -421.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
