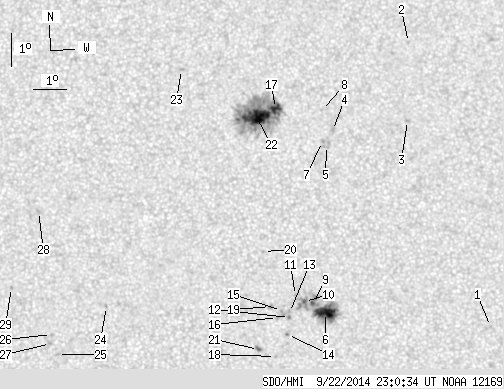

SDO HMI 2014-09-22 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.01 | 243.07 | 26.31 | 120.69 | 9.03 | 290.25 | -0.60 | 90.13 | 0.0643 | -701.8 | -473.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.66 | 296.78 | 5.93 | 248.27 | 0.1113 | 842.0 | 646.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.24 | 294.39 | 3.54 | 330.94 | 0.1242 | -805.0 | -573.2 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 10.89 | 294.33 | 3.47 | 318.46 | 0.0901 | -892.0 | -631.8 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 10.60 | 292.03 | 1.17 | 342.00 | 0.0654 | -929.0 | -767.2 | |
| 0.00 | 4.07 | 0.00 | 2.02 | 10.15 | 291.84 | 0.99 | 342.58 | 0.0569 | -554.0 | -747.0 | |
| 15.49 | 58.85 | 7.68 | 29.17 | 5.12 | 291.79 | 0.94 | 205.96 | 0.0375 | -1309.9 | -754.1 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.27 | 291.72 | 0.87 | 345.17 | 0.0584 | -975.0 | -818.1 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 11.20 | 291.69 | 0.84 | 348.78 | 0.0742 | -705.0 | -570.8 | |
| 1.06 | -6.00 | 0.53 | -6.00 | 5.40 | 291.40 | 0.55 | 198.28 | 0.0305 | -1208.3 | 999999 | |
| 0.80 | -6.00 | 0.39 | -6.00 | 5.46 | 291.16 | 0.31 | 190.85 | 0.0284 | -1135.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.64 | 290.89 | 0.03 | 181.41 | 0.0247 | -673.0 | -564.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 4.98 | 290.71 | -0.15 | 175.95 | 0.0364 | -1048.0 | -872.1 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 5.13 | 290.71 | -0.15 | 175.64 | 0.0338 | -789.0 | -556.8 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 4.46 | 290.65 | -0.21 | 175.41 | 0.0454 | -921.0 | -740.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.19 | 290.47 | -0.39 | 168.26 | 0.0333 | -769.0 | -672.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 4.98 | 290.34 | -0.51 | 166.24 | 0.0374 | -616.0 | -569.5 | |
| 6.81 | 146.01 | 3.38 | 72.52 | 11.27 | 290.28 | -0.57 | 7.57 | 0.0745 | -1121.1 | -465.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.80 | 290.28 | -0.57 | 170.05 | 0.0578 | 706.0 | 565.2 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 5.31 | 290.13 | -0.72 | 157.60 | 0.0330 | -973.0 | -712.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.96 | 289.92 | -0.93 | 95.33 | 0.0163 | 845.0 | 658.9 | |
| 0.80 | 2.65 | 0.40 | 1.32 | 4.01 | 289.77 | -1.08 | 160.40 | 0.0565 | 1089.1 | 832.0 | |
| 28.05 | -17.00 | 13.93 | -17.00 | 11.02 | 289.70 | -1.15 | 15.90 | 0.0724 | -1290.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.43 | 287.39 | -3.47 | 32.13 | 0.1116 | -883.0 | -747.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.28 | 285.17 | -5.68 | 107.07 | 0.1036 | 961.0 | 737.4 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 3.82 | 283.69 | -7.16 | 114.03 | 0.1368 | 839.0 | 686.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.42 | 283.51 | -7.35 | 109.42 | 0.1358 | 952.0 | 774.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 4.14 | 283.48 | -7.37 | 111.20 | 0.1379 | 878.0 | 681.9 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 8.11 | 283.06 | -7.79 | 81.68 | 0.1363 | 1058.0 | 780.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 5.81 | 282.27 | -8.58 | 97.76 | 0.1505 | 954.0 | 788.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
