SDO HMI 2014-09-22 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.41 | 23.60 | 5.87 | 17.12 | -15.31 | 249.43 | -41.42 | 118.86 | 0.7303 | 272.5 | 71.2 | |
|
previous
or next observation for the same group /

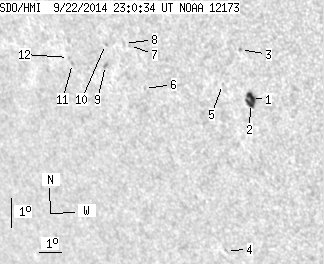

back to the solar disc SDO HMI 2014-09-22 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.96 | 12.03 | 3.46 | 8.41 | -15.28 | 251.71 | -39.14 | 120.13 | 0.7063 | 930.6 | 595.8 | |
| 3.45 | -1.00 | 2.41 | -1.00 | -15.48 | 251.63 | -39.22 | 120.33 | 0.7084 | 700.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.92 | -13.75 | 251.60 | -39.25 | 118.10 | 0.6991 | 718.0 | 550.6 | |
| 0.00 | 1.50 | 0.00 | 1.14 | -20.53 | 249.21 | -41.64 | 124.89 | 0.7609 | 416.0 | 374.4 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -14.95 | 250.61 | -40.24 | 119.04 | 0.7162 | 554.0 | 398.4 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.37 | 247.23 | -43.62 | 117.66 | 0.7534 | -507.0 | -433.4 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -14.01 | 246.93 | -43.93 | 115.85 | 0.7502 | -604.0 | -561.7 | |
| 0.00 | 1.68 | 0.00 | 1.26 | -13.97 | 246.72 | -44.13 | 115.69 | 0.7521 | -543.0 | -511.1 | |
| 0.00 | 1.50 | 0.00 | 1.16 | -14.77 | 245.68 | -45.17 | 116.14 | 0.7662 | -748.0 | -657.9 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -14.08 | 245.86 | -44.99 | 115.40 | 0.7614 | -638.0 | -545.5 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -14.84 | 244.18 | -46.67 | 115.51 | 0.7814 | 400.0 | 283.1 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -14.66 | 244.05 | -46.80 | 115.23 | 0.7820 | 369.0 | 308.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
