SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.78 | 0.00 | 3.04 | 6.80 | 328.98 | 38.68 | 272.41 | 0.6232 | 633.2 | 497.3 | |
|
previous
or next observation for the same group /

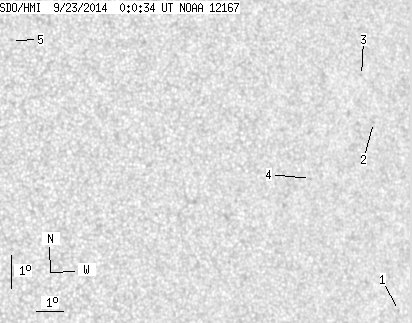

back to the solar disc SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.70 | 2.06 | 331.55 | 41.25 | 265.10 | 0.6637 | 637.0 | 520.3 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 7.79 | 330.99 | 40.69 | 273.75 | 0.6496 | 535.0 | 351.1 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 9.23 | 330.69 | 40.39 | 275.98 | 0.6454 | 614.0 | 545.4 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 6.30 | 328.36 | 38.05 | 271.21 | 0.6151 | 751.0 | 600.6 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 11.17 | 317.97 | 27.66 | 280.64 | 0.4654 | 629.0 | 488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
