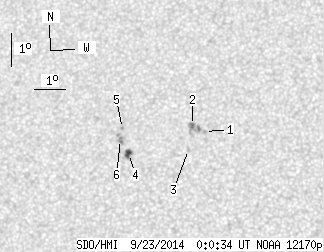

SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.51 | 25.57 | 2.34 | 13.23 | 15.70 | 275.52 | -14.78 | 57.73 | 0.2917 | 237.7 | -49.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.82 | 15.91 | 276.97 | -13.33 | 54.66 | 0.2731 | -1015.0 | -751.5 | |
| 1.15 | 9.74 | 0.59 | 5.02 | 16.08 | 276.57 | -13.73 | 54.88 | 0.2801 | -898.1 | -782.9 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 15.35 | 276.49 | -13.81 | 57.29 | 0.2748 | -822.0 | -659.1 | |
| 3.36 | 5.84 | 1.75 | 3.03 | 15.17 | 274.57 | -15.73 | 60.88 | 0.3009 | 1097.6 | 841.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 15.93 | 274.32 | -15.99 | 59.04 | 0.3102 | 913.0 | 756.8 | |
| 0.00 | 5.75 | 0.00 | 2.99 | 15.59 | 274.28 | -16.02 | 60.06 | 0.3082 | 1040.0 | 861.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
