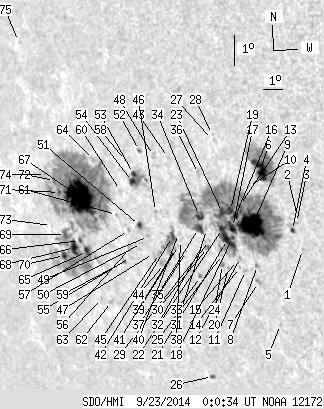

SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.55 | 1094.14 | 165.76 | 930.63 | -11.03 | 238.83 | -51.47 | 109.12 | 0.8128 | 20.5 | -36.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.92 | -11.47 | 245.73 | -44.57 | 112.36 | 0.7461 | -597.0 | -489.4 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -10.43 | 245.71 | -44.59 | 111.04 | 0.7421 | -581.0 | -337.4 | |
| 0.00 | 1.42 | 0.00 | 1.05 | -10.63 | 245.63 | -44.67 | 111.26 | 0.7437 | -418.0 | -387.6 | |
| 1.42 | 4.25 | 1.05 | 3.15 | -10.90 | 245.41 | -44.89 | 111.50 | 0.7472 | 639.3 | 526.2 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -13.99 | 244.17 | -46.13 | 114.75 | 0.7725 | 619.0 | 448.8 | |
| 19.38 | 68.06 | 14.50 | 50.81 | -9.08 | 244.34 | -45.96 | 108.75 | 0.7519 | 964.5 | 511.2 | |
| 0.00 | 2.48 | 0.00 | 1.93 | -12.71 | 243.50 | -46.80 | 112.90 | 0.7742 | 665.0 | 586.3 | |
| 0.00 | 1.68 | 0.00 | 1.30 | -12.17 | 243.59 | -46.71 | 112.27 | 0.7712 | 709.0 | 624.4 | |
| 38.94 | 428.78 | 29.89 | 334.01 | -10.87 | 243.65 | -46.65 | 110.70 | 0.7657 | 1106.8 | 319.0 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -9.67 | 243.70 | -46.60 | 109.23 | 0.7608 | 377.0 | 380.0 | |
| 0.00 | 1.68 | 0.00 | 1.32 | -12.38 | 242.99 | -47.31 | 112.27 | 0.7781 | 519.0 | 429.2 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -11.98 | 242.86 | -47.44 | 111.73 | 0.7779 | 578.0 | 573.9 | |
| 1.24 | -9.00 | 0.96 | -9.00 | -10.32 | 243.18 | -47.12 | 109.82 | 0.7687 | 672.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.31 | 242.74 | -47.57 | 112.08 | 0.7804 | 397.0 | 314.6 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.09 | 242.70 | -47.60 | 111.80 | 0.7800 | 413.0 | 365.3 | |
| 2.92 | -9.00 | 2.27 | -9.00 | -10.65 | 242.93 | -47.37 | 110.13 | 0.7725 | 816.0 | 999999 | |
| 5.66 | -9.00 | 4.43 | -9.00 | -11.05 | 242.71 | -47.60 | 110.53 | 0.7762 | 690.8 | 999999 | |
| 0.89 | -9.00 | 0.69 | -9.00 | -11.37 | 242.64 | -47.67 | 110.90 | 0.7780 | 768.7 | 999999 | |
| 3.01 | -9.00 | 2.34 | -9.00 | -10.51 | 242.73 | -47.57 | 109.88 | 0.7740 | 795.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -12.36 | 242.22 | -48.08 | 111.92 | 0.7858 | 488.0 | 394.0 | |
| 11.06 | -9.00 | 8.73 | -9.00 | -11.46 | 242.39 | -47.92 | 110.90 | 0.7809 | 628.2 | 999999 | |
| 3.98 | -9.00 | 3.15 | -9.00 | -11.13 | 242.23 | -48.07 | 110.43 | 0.7813 | 469.7 | 999999 | |
| 4.78 | -9.00 | 3.75 | -9.00 | -10.61 | 242.34 | -47.96 | 109.85 | 0.7784 | 558.1 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.63 | -12.29 | 241.96 | -48.35 | 111.73 | 0.7881 | 543.0 | 406.9 | |
| 0.00 | 1.50 | 0.00 | 1.20 | -11.96 | 242.04 | -48.27 | 111.37 | 0.7862 | 327.0 | 300.8 | |
| 1.06 | 2.30 | 0.91 | 1.96 | -16.02 | 240.37 | -49.93 | 115.44 | 0.8167 | 629.7 | 449.4 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -8.34 | 242.31 | -47.99 | 107.03 | 0.7711 | 476.0 | 476.3 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -8.18 | 242.34 | -47.96 | 106.84 | 0.7704 | 541.0 | 447.1 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -11.57 | 241.52 | -48.78 | 110.69 | 0.7899 | 430.0 | 325.7 | |
| 0.53 | 1.77 | 0.43 | 1.43 | -11.81 | 241.37 | -48.93 | 110.91 | 0.7922 | 413.8 | 270.4 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -11.23 | 241.46 | -48.84 | 110.25 | 0.7894 | 288.0 | 219.3 | |
| 0.00 | 1.59 | 0.00 | 1.29 | -11.63 | 241.28 | -49.03 | 110.66 | 0.7926 | 366.0 | 271.1 | |
| 0.44 | 1.33 | 0.36 | 1.09 | -12.78 | 240.79 | -49.51 | 111.84 | 0.8012 | 478.2 | 327.6 | |
| 5.31 | -9.00 | 4.27 | -9.00 | -10.84 | 241.22 | -49.08 | 109.70 | 0.7905 | 522.8 | 999999 | |
| 5.75 | -9.00 | 4.65 | -9.00 | -11.23 | 241.09 | -49.22 | 110.11 | 0.7931 | 370.1 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.67 | -9.47 | 241.46 | -48.84 | 108.12 | 0.7836 | -536.0 | -387.2 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -12.03 | 240.32 | -49.98 | 110.77 | 0.8033 | 289.0 | 311.1 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -11.71 | 240.11 | -50.19 | 110.30 | 0.8042 | 430.0 | 367.8 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -11.88 | 239.97 | -50.33 | 110.45 | 0.8061 | 420.0 | 394.0 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -11.49 | 240.07 | -50.23 | 110.03 | 0.8040 | 386.0 | 329.2 | |
| 0.00 | 1.15 | 0.00 | 0.96 | -11.99 | 239.80 | -50.50 | 110.52 | 0.8082 | 396.0 | 334.7 | |
| 3.27 | 21.33 | 2.73 | 17.91 | -11.62 | 239.75 | -50.55 | 110.06 | 0.8075 | 479.9 | 158.7 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -9.10 | 240.12 | -50.18 | 107.19 | 0.7961 | -268.0 | -373.1 | |
| 0.00 | 6.11 | 0.00 | 5.21 | -12.53 | 239.11 | -51.19 | 110.89 | 0.8164 | 95.0 | 84.8 | |
| 0.00 | 2.30 | 0.00 | 1.97 | -12.23 | 238.95 | -51.35 | 110.48 | 0.8170 | -96.0 | 28.0 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -10.89 | 239.10 | -51.21 | 108.97 | 0.8115 | -547.0 | -495.9 | |
| 0.00 | 1.06 | 0.00 | 0.91 | -12.26 | 238.64 | -51.66 | 110.41 | 0.8200 | -222.0 | -166.9 | |
| 0.00 | 3.36 | 0.00 | 2.78 | -9.11 | 239.40 | -50.91 | 106.95 | 0.8034 | -470.0 | -524.2 | |
| 0.00 | 1.50 | 0.00 | 1.29 | -11.73 | 238.54 | -51.77 | 109.75 | 0.8194 | -523.0 | -485.4 | |
| 0.00 | 1.68 | 0.00 | 1.46 | -12.00 | 238.11 | -52.19 | 109.91 | 0.8241 | -289.0 | -260.9 | |
| 2.39 | 5.66 | 2.07 | 4.89 | -11.42 | 238.17 | -52.14 | 109.26 | 0.8219 | -761.3 | -490.6 | |
| 0.53 | 1.77 | 0.45 | 1.49 | -9.02 | 238.73 | -51.57 | 106.62 | 0.8097 | -739.8 | -622.4 | |
| 2.48 | 22.57 | 2.11 | 19.21 | -9.78 | 238.27 | -52.04 | 107.37 | 0.8162 | -875.5 | -530.0 | |
| 3.27 | -53.00 | 2.81 | -53.00 | -10.04 | 238.16 | -52.14 | 107.64 | 0.8180 | -954.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.26 | -12.51 | 237.40 | -52.90 | 110.25 | 0.8321 | -678.0 | -547.9 | |
| 0.00 | 2.57 | 0.00 | 2.27 | -12.22 | 237.44 | -52.87 | 109.93 | 0.8309 | -537.0 | -582.1 | |
| 0.00 | 1.15 | 0.00 | 1.01 | -11.64 | 237.55 | -52.75 | 109.30 | 0.8282 | -763.0 | -603.2 | |
| 0.00 | 1.06 | 0.00 | 0.91 | -9.41 | 237.95 | -52.35 | 106.82 | 0.8182 | -479.0 | -430.2 | |
| 0.35 | 1.68 | 0.32 | 1.51 | -12.67 | 237.04 | -53.26 | 110.31 | 0.8358 | -626.0 | -501.7 | |
| 0.00 | 1.24 | 0.00 | 1.08 | -10.40 | 237.47 | -52.83 | 107.82 | 0.8255 | -156.0 | -202.1 | |
| 0.00 | 1.06 | 0.00 | 0.94 | -11.19 | 237.06 | -53.24 | 108.61 | 0.8315 | -664.0 | -609.1 | |
| 0.00 | 2.39 | 0.00 | 2.23 | -14.06 | 235.90 | -54.40 | 111.48 | 0.8497 | 102.0 | 14.9 | |
| 0.00 | 1.33 | 0.00 | 1.26 | -14.02 | 235.38 | -54.93 | 111.25 | 0.8541 | -426.0 | -443.4 | |
| 0.00 | 2.66 | 0.00 | 2.37 | -9.55 | 236.28 | -54.02 | 106.45 | 0.8343 | -384.0 | -369.4 | |
| 4.43 | 464.98 | 4.16 | 434.49 | -12.55 | 235.12 | -55.18 | 109.52 | 0.8523 | -731.6 | -344.5 | |
| 1.24 | -65.00 | 1.17 | -65.00 | -12.24 | 234.84 | -55.46 | 109.07 | 0.8539 | -570.6 | 999999 | |
| 53.81 | -65.00 | 49.84 | -65.00 | -10.81 | 235.21 | -55.09 | 107.58 | 0.8470 | -965.4 | 999999 | |
| 8.23 | -65.00 | 7.89 | -65.00 | -12.50 | 234.42 | -55.88 | 109.23 | 0.8581 | -700.9 | 999999 | |
| 4.60 | -65.00 | 4.44 | -65.00 | -12.13 | 234.05 | -56.26 | 108.70 | 0.8603 | -321.3 | 999999 | |
| 2.66 | -65.00 | 2.60 | -65.00 | -12.82 | 233.75 | -56.55 | 109.38 | 0.8644 | -470.2 | 999999 | |
| 1.33 | -65.00 | 1.27 | -65.00 | -10.80 | 234.12 | -56.18 | 107.23 | 0.8565 | 99.8 | 999999 | |
| 1.59 | -65.00 | 1.52 | -65.00 | -10.44 | 233.95 | -56.36 | 106.77 | 0.8571 | -204.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -11.92 | 233.33 | -56.98 | 108.24 | 0.8658 | -229.0 | -211.3 | |
| 0.00 | 4.78 | 0.00 | 4.62 | -10.30 | 233.48 | -56.82 | 106.48 | 0.8608 | 180.0 | 112.8 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -6.24 | 232.89 | -57.41 | 101.71 | 0.8574 | -412.0 | -354.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
