SDO HMI 2014-09-23 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.41 | 0.00 | 6.60 | -12.23 | 286.95 | -2.80 | 173.01 | 0.3581 | 802.0 | 655.7 | |
|
previous
or next observation for the same group /

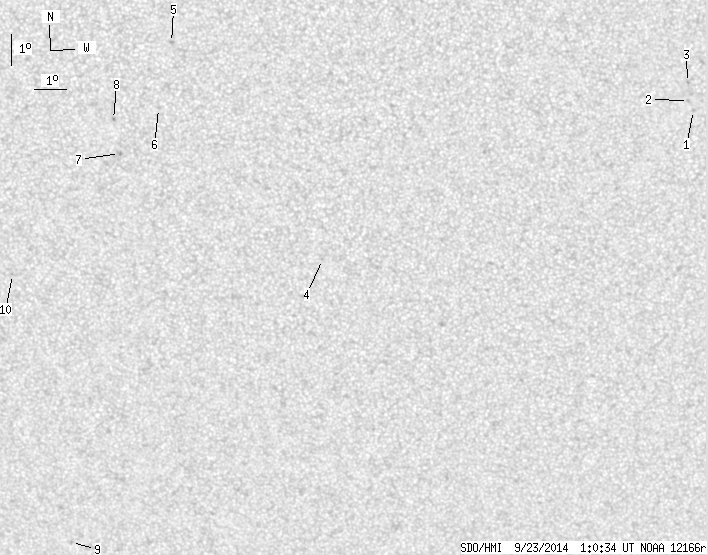

back to the solar disc SDO HMI 2014-09-23 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | -10.27 | 299.91 | 10.16 | 210.40 | 0.3444 | 829.0 | 610.0 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -9.95 | 299.75 | 9.99 | 210.47 | 0.3385 | 816.0 | 629.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -9.39 | 299.70 | 9.95 | 211.23 | 0.3301 | 801.0 | 675.4 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -14.90 | 288.49 | -1.27 | 176.73 | 0.3760 | 729.0 | 591.4 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -8.04 | 283.93 | -5.82 | 158.85 | 0.2797 | 1010.0 | 669.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -10.12 | 283.49 | -6.26 | 159.97 | 0.3147 | 685.0 | 547.0 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -11.56 | 282.25 | -7.50 | 158.10 | 0.3442 | 815.0 | 722.9 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -10.48 | 282.10 | -7.65 | 156.42 | 0.3289 | 942.0 | 805.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -24.56 | 280.04 | -9.71 | 163.64 | 0.5466 | 740.0 | 638.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -15.52 | 278.74 | -11.02 | 154.24 | 0.4254 | 653.0 | 521.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
