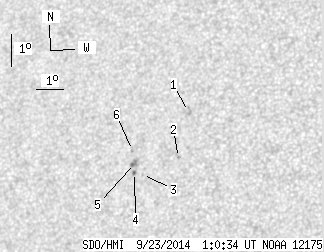

SDO HMI 2014-09-23 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 12.83 | 0.26 | 7.49 | 16.49 | 258.48 | -31.27 | 69.97 | 0.5320 | 752.6 | 666.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.07 | 0.00 | 2.36 | 17.67 | 259.49 | -30.26 | 67.37 | 0.5223 | 626.0 | 652.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 16.25 | 259.37 | -30.38 | 70.07 | 0.5185 | 806.0 | 637.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 15.65 | 258.16 | -31.59 | 71.67 | 0.5335 | 698.0 | 541.3 | |
| 0.44 | 1.59 | 0.26 | 0.93 | 15.70 | 257.86 | -31.89 | 71.70 | 0.5378 | 846.8 | 670.4 | |
| 0.00 | 4.43 | 0.00 | 2.60 | 15.97 | 257.81 | -31.94 | 71.22 | 0.5393 | 897.0 | 742.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 16.36 | 257.67 | -32.09 | 70.57 | 0.5426 | 617.0 | 491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
