SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.29 | 0.00 | 4.07 | -8.07 | 326.47 | 37.26 | 248.36 | 0.6468 | -360.8 | -294.8 | |
|
previous
or next observation for the same group /

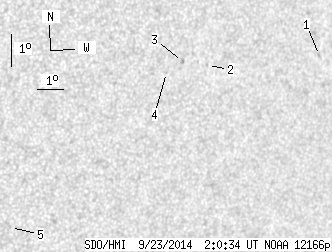

back to the solar disc SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.86 | -7.75 | 331.21 | 42.01 | 251.32 | 0.7023 | 666.0 | 536.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -7.70 | 326.76 | 37.56 | 249.21 | 0.6484 | -598.0 | -422.9 | |
| 0.00 | 2.57 | 0.00 | 1.64 | -7.50 | 325.79 | 36.58 | 248.97 | 0.6353 | -683.0 | -585.2 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -7.80 | 325.21 | 36.01 | 248.20 | 0.6296 | -579.0 | -458.7 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -12.30 | 320.01 | 30.80 | 237.87 | 0.5931 | -610.0 | -464.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
