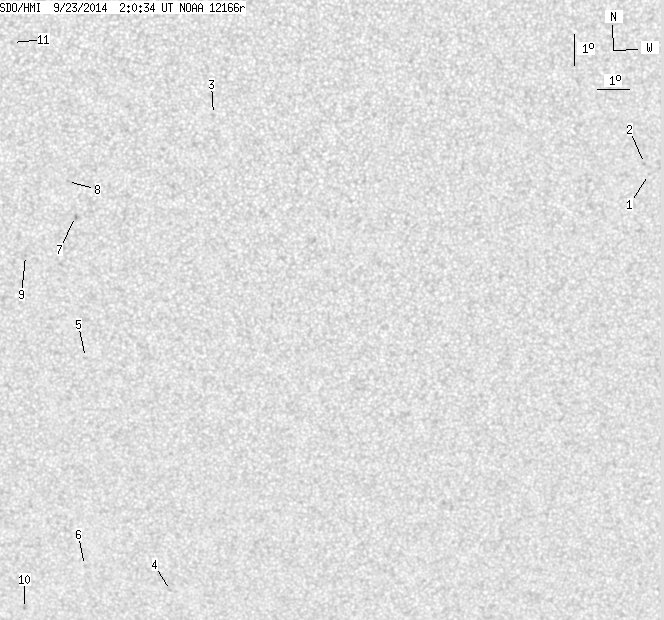

SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.12 | 0.00 | 7.04 | -13.73 | 285.19 | -4.02 | 169.59 | 0.3776 | 737.0 | 586.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.47 | -10.29 | 299.92 | 10.71 | 211.73 | 0.3493 | 645.0 | 503.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -9.94 | 299.78 | 10.58 | 211.94 | 0.3433 | 797.0 | 689.3 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -8.27 | 286.57 | -2.63 | 170.24 | 0.2691 | 651.0 | 441.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -23.92 | 284.91 | -4.29 | 172.43 | 0.5207 | 683.0 | 557.1 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -16.06 | 282.46 | -6.74 | 163.93 | 0.4092 | 579.0 | 500.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -23.08 | 282.12 | -7.09 | 167.23 | 0.5157 | 645.0 | 472.4 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -11.52 | 282.29 | -6.91 | 159.62 | 0.3402 | 952.0 | 774.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -10.42 | 282.07 | -7.13 | 157.79 | 0.3245 | 905.0 | 736.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -12.79 | 280.70 | -8.51 | 156.89 | 0.3690 | 888.0 | 701.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -24.62 | 280.02 | -9.18 | 164.51 | 0.5454 | 677.0 | 602.7 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -6.11 | 280.47 | -8.73 | 146.28 | 0.2730 | 685.0 | 468.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
