SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.53 | 238.19 | 28.57 | 118.45 | 9.02 | 289.83 | 0.63 | 295.09 | 0.0749 | -592.9 | -435.5 | |
|
previous
or next observation for the same group /

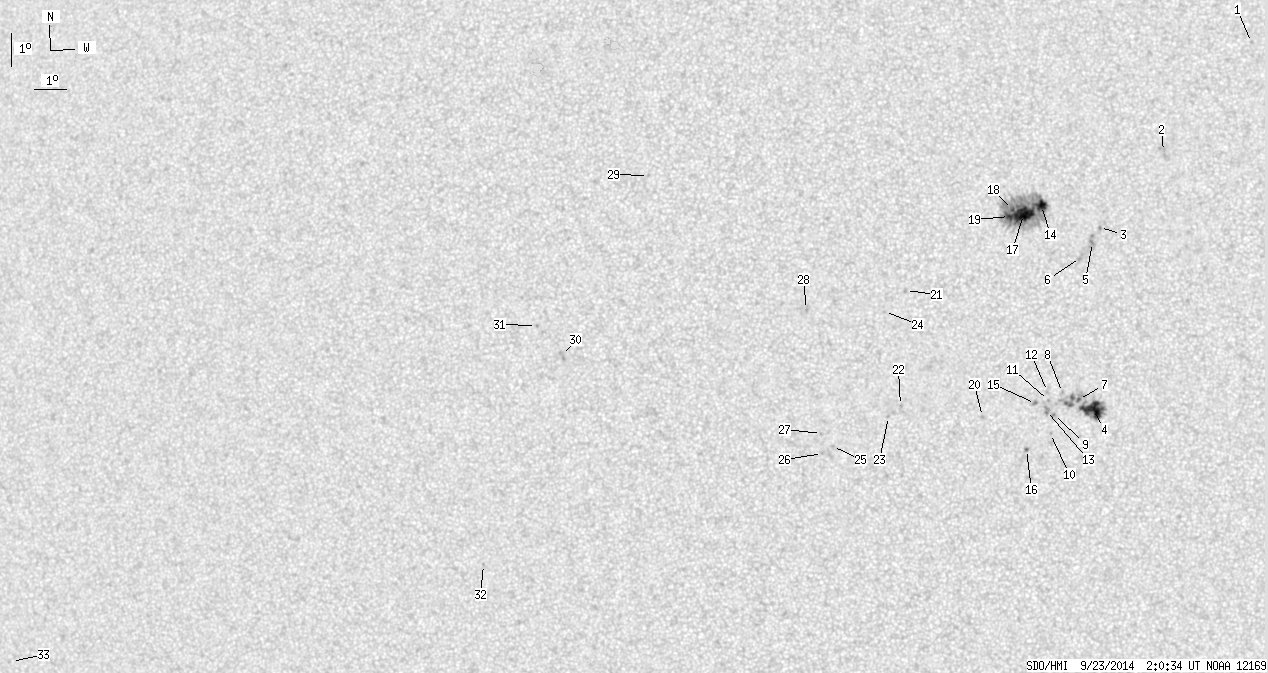

back to the solar disc SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.72 | 16.16 | 296.94 | 7.74 | 320.94 | 0.2063 | -817.0 | -603.7 | |
| 0.00 | 5.31 | 0.00 | 2.65 | 12.89 | 294.09 | 4.89 | 320.90 | 0.1324 | -642.0 | -645.3 | |
| 0.00 | 1.42 | 0.00 | 0.70 | 10.61 | 292.09 | 2.88 | 321.61 | 0.0800 | -979.0 | -759.1 | |
| 20.63 | 52.05 | 10.23 | 25.82 | 5.14 | 291.86 | 2.66 | 234.36 | 0.0571 | -1191.6 | -712.9 | |
| 0.00 | 7.44 | 0.00 | 3.69 | 10.16 | 291.87 | 2.67 | 320.00 | 0.0715 | -1088.0 | -790.8 | |
| 0.00 | 2.92 | 0.00 | 1.45 | 9.71 | 291.50 | 2.29 | 319.79 | 0.0614 | -797.0 | -739.3 | |
| 0.71 | -4.00 | 0.35 | -4.00 | 5.44 | 291.41 | 2.21 | 233.99 | 0.0476 | -1159.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.83 | 5.66 | 290.93 | 1.72 | 231.08 | 0.0386 | -750.0 | -525.9 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 5.00 | 290.65 | 1.45 | 215.20 | 0.0439 | -911.0 | -643.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.42 | 290.56 | 1.36 | 207.32 | 0.0517 | -854.0 | -595.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.42 | 290.50 | 1.30 | 218.52 | 0.0364 | -869.0 | -702.3 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 5.69 | 290.47 | 1.27 | 223.02 | 0.0325 | -449.0 | -377.3 | |
| 0.00 | 3.81 | 0.00 | 1.89 | 5.12 | 290.44 | 1.24 | 212.63 | 0.0401 | -768.0 | -774.0 | |
| 8.14 | 134.11 | 4.05 | 66.61 | 11.29 | 290.31 | 1.11 | 345.58 | 0.0768 | -1103.2 | -496.9 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 5.33 | 290.11 | 0.91 | 207.76 | 0.0340 | -952.0 | -704.4 | |
| 0.35 | 1.95 | 0.18 | 0.97 | 3.94 | 289.83 | 0.63 | 191.50 | 0.0554 | 1001.0 | 785.1 | |
| 22.48 | -14.00 | 11.17 | -14.00 | 11.02 | 289.76 | 0.56 | 352.13 | 0.0703 | -1315.2 | 999999 | |
| 1.33 | -14.00 | 0.66 | -14.00 | 11.17 | 289.42 | 0.22 | 356.97 | 0.0724 | -950.1 | 999999 | |
| 3.89 | -14.00 | 1.93 | -14.00 | 10.96 | 289.33 | 0.13 | 358.13 | 0.0686 | -1153.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 4.94 | 288.51 | -0.69 | 161.79 | 0.0388 | 889.0 | 708.6 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 8.72 | 286.16 | -3.04 | 60.65 | 0.0604 | 840.0 | 733.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.26 | 286.03 | -3.17 | 119.27 | 0.0635 | 958.0 | 745.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 4.93 | 285.67 | -3.53 | 120.83 | 0.0719 | 917.0 | 728.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.09 | 285.53 | -3.67 | 73.78 | 0.0664 | 831.0 | 658.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.01 | 283.98 | -5.22 | 119.96 | 0.1053 | 842.0 | 663.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.80 | 283.68 | -5.53 | 120.25 | 0.1118 | 827.0 | 688.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.40 | 283.64 | -5.56 | 115.24 | 0.1073 | 744.0 | 563.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.13 | 283.15 | -6.05 | 79.39 | 0.1067 | 1002.0 | 855.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 12.08 | 278.16 | -11.04 | 64.33 | 0.2087 | 789.0 | 611.1 | |
| 0.00 | 3.98 | 0.00 | 2.03 | 6.60 | 275.66 | -13.54 | 91.09 | 0.2336 | 625.0 | 670.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 7.48 | 274.83 | -14.38 | 87.36 | 0.2475 | 838.0 | 759.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 0.22 | 273.29 | -15.91 | 112.60 | 0.2983 | 778.0 | 591.6 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -3.50 | 257.65 | -31.55 | 107.51 | 0.5498 | 39.0 | 59.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
