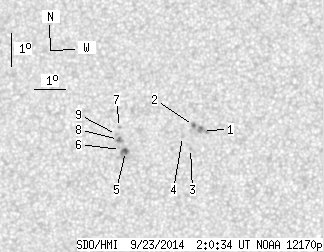

SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.01 | 24.60 | 1.56 | 12.70 | 15.64 | 275.33 | -13.87 | 56.34 | 0.2785 | 87.6 | 116.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.13 | 0.00 | 2.63 | 15.97 | 276.95 | -12.25 | 52.28 | 0.2590 | -1024.0 | -916.4 | |
| 0.62 | 2.21 | 0.32 | 1.14 | 16.11 | 276.66 | -12.55 | 52.46 | 0.2644 | -955.6 | -816.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 15.41 | 276.60 | -12.60 | 54.81 | 0.2585 | -930.0 | -709.4 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 15.77 | 276.32 | -12.88 | 54.21 | 0.2656 | -626.0 | -441.8 | |
| 1.86 | 7.61 | 0.96 | 3.93 | 15.26 | 274.53 | -14.68 | 59.01 | 0.2864 | 1196.8 | 838.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.32 | 274.36 | -14.84 | 59.10 | 0.2892 | 549.0 | 600.5 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 15.98 | 274.28 | -14.92 | 57.23 | 0.2958 | 811.0 | 625.8 | |
| 0.53 | 3.63 | 0.28 | 1.88 | 15.62 | 274.27 | -14.93 | 58.32 | 0.2928 | 1095.0 | 882.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 15.77 | 274.20 | -15.00 | 57.99 | 0.2951 | 768.0 | 600.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
