SDO HMI 2014-09-23 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.43 | 231.87 | 27.53 | 115.22 | 8.81 | 289.66 | 1.00 | 287.49 | 0.0752 | -530.2 | -400.2 | |
|
previous
or next observation for the same group /

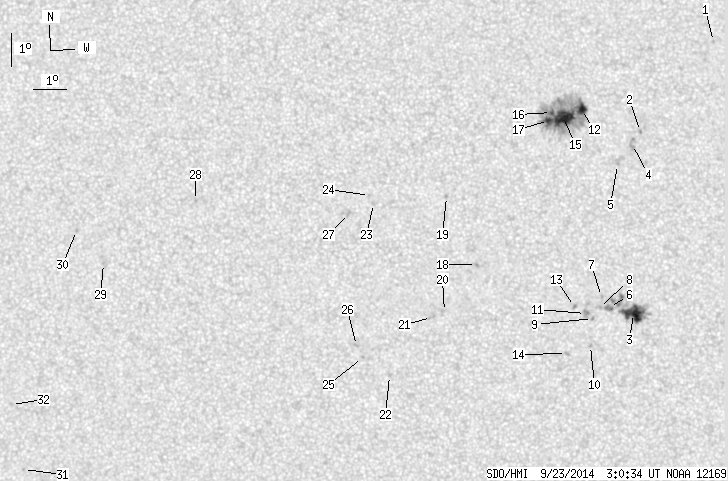

back to the solar disc SDO HMI 2014-09-23 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.30 | 294.43 | 5.77 | 318.23 | 0.1476 | -837.0 | -574.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 10.60 | 292.12 | 3.47 | 316.36 | 0.0866 | -1025.0 | -840.3 | |
| 20.36 | 48.87 | 10.11 | 24.26 | 5.13 | 291.86 | 3.21 | 239.24 | 0.0651 | -1196.5 | -652.7 | |
| 0.00 | 5.40 | 0.00 | 2.68 | 10.22 | 291.87 | 3.22 | 315.15 | 0.0787 | -521.0 | -796.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 9.62 | 291.41 | 2.76 | 313.57 | 0.0657 | -694.0 | -611.2 | |
| 0.00 | 5.31 | 0.00 | 2.63 | 5.32 | 291.13 | 2.48 | 235.18 | 0.0527 | -973.0 | -890.6 | |
| 0.00 | 1.42 | 0.00 | 0.70 | 5.65 | 290.89 | 2.24 | 238.12 | 0.0460 | -578.0 | -498.6 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 5.32 | 290.83 | 2.18 | 231.63 | 0.0485 | -831.0 | -692.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.99 | 290.62 | 1.97 | 223.71 | 0.0497 | -881.0 | -704.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 4.18 | 290.56 | 1.90 | 213.55 | 0.0602 | -722.0 | -642.2 | |
| 0.00 | 4.69 | 0.00 | 2.33 | 5.14 | 290.41 | 1.75 | 222.65 | 0.0452 | -703.0 | -716.7 | |
| 7.44 | 132.18 | 3.70 | 65.66 | 11.28 | 290.32 | 1.67 | 338.91 | 0.0797 | -1105.6 | -498.3 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 5.35 | 290.08 | 1.42 | 220.04 | 0.0386 | -1025.0 | -734.2 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 3.94 | 289.83 | 1.18 | 200.75 | 0.0581 | 1019.0 | 701.8 | |
| 21.60 | -12.00 | 10.73 | -12.00 | 11.04 | 289.77 | 1.11 | 344.71 | 0.0727 | -1321.2 | 999999 | |
| 1.51 | -12.00 | 0.75 | -12.00 | 11.19 | 289.40 | 0.75 | 349.99 | 0.0739 | -942.8 | 999999 | |
| 4.52 | -12.00 | 2.24 | -12.00 | 10.95 | 289.31 | 0.65 | 350.67 | 0.0695 | -1193.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.62 | 287.11 | -1.54 | 105.34 | 0.0278 | 930.0 | 836.6 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 8.66 | 286.20 | -2.46 | 56.19 | 0.0513 | 991.0 | 711.2 | |
| 0.00 | 0.53 | 0.00 | 0.26 | 5.20 | 286.15 | -2.50 | 126.31 | 0.0542 | 555.0 | 436.5 | |
| 0.00 | 2.21 | 0.00 | 1.10 | 5.02 | 285.76 | -2.90 | 124.90 | 0.0617 | 685.0 | 636.1 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 3.26 | 284.49 | -4.16 | 132.14 | 0.0981 | 736.0 | 539.0 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 8.44 | 283.97 | -4.68 | 72.94 | 0.0848 | 809.0 | 598.2 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 8.68 | 283.85 | -4.81 | 70.72 | 0.0881 | 727.0 | 556.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 3.80 | 283.67 | -4.98 | 122.92 | 0.1036 | 883.0 | 692.8 | |
| 0.00 | 2.04 | 0.00 | 1.01 | 4.16 | 283.49 | -5.16 | 119.01 | 0.1031 | 863.0 | 622.7 | |
| 0.00 | 3.10 | 0.00 | 1.54 | 8.13 | 283.21 | -5.44 | 78.24 | 0.0963 | 1044.0 | 737.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 8.45 | 278.51 | -10.14 | 81.36 | 0.1770 | 868.0 | 669.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.49 | 275.71 | -12.94 | 91.69 | 0.2236 | 837.0 | 689.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 7.46 | 274.84 | -13.81 | 87.39 | 0.2380 | 1007.0 | 798.6 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 0.20 | 273.31 | -15.35 | 113.42 | 0.2897 | 858.0 | 660.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 2.16 | 272.92 | -15.73 | 106.55 | 0.2839 | 812.0 | 558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
