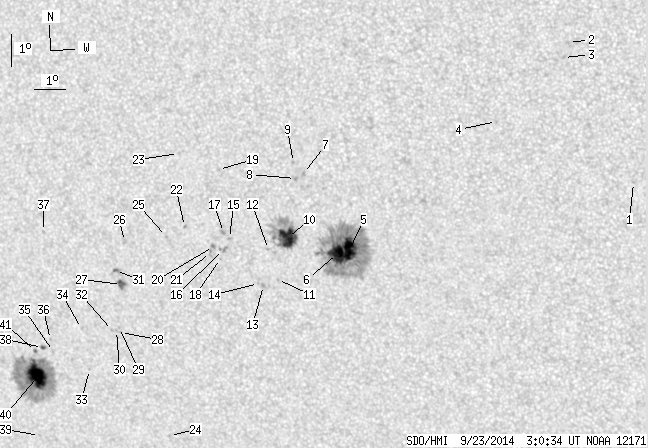

SDO HMI 2014-09-23 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.05 | 479.60 | 58.58 | 273.84 | -10.46 | 265.00 | -23.65 | 126.85 | 0.4902 | 249.6 | 115.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | -6.51 | 278.69 | -9.96 | 143.51 | 0.2903 | 806.0 | 595.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -2.25 | 276.76 | -11.89 | 127.65 | 0.2612 | 756.0 | 558.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -2.71 | 276.60 | -12.05 | 128.64 | 0.2682 | 891.0 | 749.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -4.73 | 274.49 | -14.16 | 129.41 | 0.3169 | 857.0 | 741.1 | |
| 23.11 | 210.35 | 12.60 | 114.82 | -8.86 | 269.69 | -18.96 | 129.79 | 0.4197 | 1326.0 | 390.5 | |
| 21.25 | -5.00 | 11.62 | -5.00 | -9.00 | 269.29 | -19.36 | 129.46 | 0.4259 | 1013.4 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -6.56 | 268.32 | -20.33 | 123.39 | 0.4152 | 915.0 | 718.1 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -6.72 | 268.05 | -20.60 | 123.37 | 0.4202 | 747.0 | 667.4 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -6.23 | 268.01 | -20.64 | 122.32 | 0.4165 | 868.0 | 672.5 | |
| 24.08 | 59.05 | 13.28 | 32.57 | -8.57 | 267.70 | -20.96 | 126.44 | 0.4415 | 1050.6 | 404.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -9.91 | 267.28 | -21.37 | 128.27 | 0.4591 | 853.0 | 720.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -8.98 | 267.05 | -21.60 | 126.33 | 0.4533 | 366.0 | 218.0 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -10.12 | 266.81 | -21.85 | 128.01 | 0.4669 | 794.0 | 662.1 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -10.06 | 266.65 | -22.01 | 127.71 | 0.4683 | 649.0 | 554.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -8.69 | 265.78 | -22.87 | 124.26 | 0.4667 | 778.0 | 649.9 | |
| 0.00 | 4.34 | 0.00 | 2.44 | -9.05 | 265.56 | -23.09 | 124.62 | 0.4726 | 793.0 | 694.4 | |
| 0.00 | 1.86 | 0.00 | 1.04 | -8.51 | 265.60 | -23.06 | 123.72 | 0.4675 | 903.0 | 674.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -9.33 | 265.44 | -23.21 | 124.98 | 0.4766 | 529.0 | 522.8 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -6.56 | 265.55 | -23.11 | 120.03 | 0.4522 | 650.0 | 508.4 | |
| 0.00 | 2.21 | 0.00 | 1.25 | -8.97 | 265.24 | -23.42 | 124.10 | 0.4760 | 918.0 | 708.4 | |
| 0.00 | 2.74 | 0.00 | 1.55 | -9.16 | 265.12 | -23.53 | 124.31 | 0.4791 | 577.0 | 459.9 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -8.39 | 264.31 | -24.34 | 122.05 | 0.4831 | -826.0 | -681.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -6.13 | 264.24 | -24.41 | 117.83 | 0.4666 | 583.0 | 461.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -15.09 | 263.14 | -25.51 | 131.28 | 0.5556 | 676.0 | 548.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.73 | 263.68 | -24.97 | 121.98 | 0.4939 | -611.0 | -450.2 | |
| 0.00 | 3.01 | 0.00 | 1.74 | -8.97 | 262.24 | -26.41 | 120.92 | 0.5142 | -909.0 | -574.7 | |
| 3.54 | 5.93 | 2.06 | 3.45 | -10.33 | 262.02 | -26.63 | 122.94 | 0.5276 | -1058.1 | -812.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.86 | 261.83 | -26.82 | 125.16 | 0.5422 | -733.0 | -574.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -11.70 | 261.82 | -26.84 | 124.90 | 0.5411 | -551.0 | -463.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -11.80 | 261.70 | -26.95 | 124.94 | 0.5433 | -718.0 | -622.5 | |
| 0.80 | 4.43 | 0.46 | 2.57 | -9.90 | 261.86 | -26.80 | 122.08 | 0.5262 | -860.6 | -676.6 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -11.81 | 261.56 | -27.09 | 124.81 | 0.5450 | -644.0 | -538.4 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -13.11 | 260.61 | -28.04 | 125.81 | 0.5668 | 581.0 | 487.3 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -11.81 | 260.49 | -28.17 | 123.76 | 0.5579 | -805.0 | -619.9 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -12.61 | 259.40 | -29.25 | 123.95 | 0.5770 | -715.0 | -548.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -12.23 | 259.35 | -29.31 | 123.33 | 0.5748 | -868.0 | -690.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -8.82 | 259.46 | -29.19 | 118.15 | 0.5487 | 628.0 | 494.2 | |
| 1.06 | 2.57 | 0.65 | 1.56 | -12.50 | 259.03 | -29.62 | 123.45 | 0.5806 | -960.5 | -734.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -15.36 | 258.51 | -30.15 | 127.01 | 0.6087 | -600.0 | -521.1 | |
| 28.68 | 151.21 | 17.59 | 92.86 | -13.45 | 258.72 | -29.93 | 124.55 | 0.5914 | -1251.8 | -281.2 | |
| 0.53 | -40.00 | 0.32 | -40.00 | -12.65 | 258.76 | -29.89 | 123.42 | 0.5849 | -860.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
