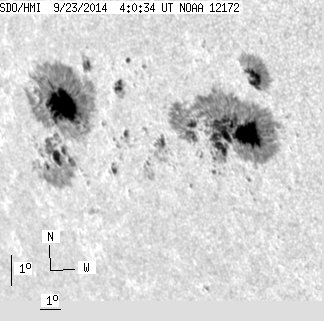

SDO HMI 2014-09-23 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 212.14 | 1157.40 | 170.45 | 937.02 | -11.04 | 238.93 | -49.17 | 109.98 | 0.7904 | 34.0 | -27.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.82 | -10.74 | 245.90 | -42.20 | 112.55 | 0.7170 | -476.0 | -395.5 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -12.47 | 245.23 | -42.87 | 114.45 | 0.7320 | 570.0 | 350.6 | |
| 0.00 | 2.04 | 0.00 | 1.44 | -10.17 | 245.63 | -42.48 | 111.67 | 0.7176 | 211.0 | 329.5 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -13.09 | 244.72 | -43.38 | 114.96 | 0.7403 | 383.0 | 326.7 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -14.11 | 244.40 | -43.71 | 116.06 | 0.7483 | 452.0 | 407.6 | |
| 17.88 | 67.73 | 12.85 | 48.57 | -9.05 | 244.42 | -43.68 | 109.65 | 0.7266 | 974.3 | 548.6 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -12.96 | 243.67 | -44.43 | 114.28 | 0.7507 | 681.0 | 530.4 | |
| 0.00 | 1.86 | 0.00 | 1.39 | -12.74 | 243.55 | -44.56 | 113.96 | 0.7512 | 626.0 | 585.6 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -12.36 | 243.55 | -44.56 | 113.48 | 0.7496 | 694.0 | 656.1 | |
| 44.09 | 463.94 | 32.40 | 345.64 | -10.89 | 243.76 | -44.34 | 111.73 | 0.7412 | 1140.0 | 320.5 | |
| 0.00 | 2.48 | 0.00 | 1.85 | -12.09 | 243.39 | -44.72 | 113.07 | 0.7501 | -6.0 | 105.8 | |
| 2.21 | -10.00 | 1.64 | -10.00 | -10.49 | 243.32 | -44.79 | 111.02 | 0.7444 | 753.9 | 999999 | |
| 1.68 | -10.00 | 1.25 | -10.00 | -10.67 | 243.11 | -44.99 | 111.15 | 0.7473 | 931.7 | 999999 | |
| 0.27 | -10.00 | 0.20 | -10.00 | -11.30 | 242.77 | -45.33 | 111.79 | 0.7534 | 739.0 | 999999 | |
| 9.65 | -10.00 | 7.22 | -10.00 | -10.95 | 242.80 | -45.31 | 111.37 | 0.7518 | 735.3 | 999999 | |
| 3.10 | -10.00 | 2.31 | -10.00 | -10.53 | 242.88 | -45.23 | 110.88 | 0.7493 | 823.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -12.08 | 242.51 | -45.59 | 112.65 | 0.7592 | 321.0 | 278.7 | |
| 4.96 | -10.00 | 3.74 | -10.00 | -11.50 | 242.60 | -45.51 | 111.97 | 0.7561 | 715.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -12.26 | 242.25 | -45.85 | 112.75 | 0.7627 | 528.0 | 407.0 | |
| 4.34 | -10.00 | 3.28 | -10.00 | -11.36 | 242.40 | -45.70 | 111.71 | 0.7575 | 639.1 | 999999 | |
| 5.75 | -10.00 | 4.33 | -10.00 | -10.66 | 242.50 | -45.60 | 110.88 | 0.7538 | 597.5 | 999999 | |
| 4.87 | -10.00 | 3.68 | -10.00 | -11.08 | 242.33 | -45.78 | 111.33 | 0.7573 | 522.8 | 999999 | |
| 0.71 | 1.95 | 0.54 | 1.49 | -12.25 | 242.03 | -46.07 | 112.64 | 0.7649 | 492.2 | 388.6 | |
| 0.71 | -10.00 | 0.54 | -10.00 | -11.79 | 242.13 | -45.97 | 112.13 | 0.7621 | 487.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -12.02 | 242.08 | -46.02 | 112.39 | 0.7635 | 405.0 | 380.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -8.38 | 242.51 | -45.60 | 107.98 | 0.7454 | 572.0 | 476.4 | |
| 0.00 | 1.77 | 0.00 | 1.44 | -16.09 | 240.67 | -47.44 | 116.62 | 0.7938 | 677.0 | 586.8 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -8.11 | 242.37 | -45.73 | 107.58 | 0.7460 | 575.0 | 476.2 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -8.27 | 242.30 | -45.80 | 107.76 | 0.7473 | 597.0 | 500.9 | |
| 0.00 | 2.30 | 0.00 | 1.77 | -11.75 | 241.56 | -46.54 | 111.83 | 0.7678 | 504.0 | 340.1 | |
| 0.00 | 1.42 | 0.00 | 1.08 | -10.92 | 241.70 | -46.41 | 110.86 | 0.7633 | 485.0 | 409.2 | |
| 0.00 | 1.33 | 0.00 | 1.03 | -11.71 | 241.35 | -46.76 | 111.68 | 0.7699 | 372.0 | 261.6 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -8.74 | 241.92 | -46.18 | 108.21 | 0.7531 | 352.0 | 300.0 | |
| 5.31 | -10.00 | 4.08 | -10.00 | -10.79 | 241.36 | -46.74 | 110.56 | 0.7663 | 564.0 | 999999 | |
| 5.58 | -10.00 | 4.30 | -10.00 | -11.15 | 241.24 | -46.86 | 110.95 | 0.7689 | 438.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.18 | -12.80 | 240.82 | -47.29 | 112.78 | 0.7794 | 456.0 | 381.5 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -9.32 | 241.38 | -46.73 | 108.73 | 0.7609 | -548.0 | -453.2 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -12.26 | 240.22 | -47.89 | 111.87 | 0.7834 | 422.0 | 368.5 | |
| 0.00 | 1.42 | 0.00 | 1.12 | -11.85 | 240.18 | -47.93 | 111.36 | 0.7823 | 498.0 | 408.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -12.18 | 240.00 | -48.10 | 111.69 | 0.7853 | 362.0 | 338.0 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -11.36 | 240.01 | -48.09 | 110.70 | 0.7822 | 272.0 | 321.7 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -10.37 | 240.18 | -47.92 | 109.56 | 0.7771 | -376.0 | -364.8 | |
| 2.83 | 22.75 | 2.25 | 18.16 | -11.50 | 239.84 | -48.26 | 110.80 | 0.7845 | 571.7 | 173.2 | |
| 0.00 | 1.68 | 0.00 | 1.36 | -11.85 | 239.20 | -48.91 | 110.96 | 0.7921 | 283.0 | 178.1 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -12.08 | 239.09 | -49.01 | 111.19 | 0.7939 | 232.0 | 216.0 | |
| 0.00 | 14.25 | 0.00 | 11.63 | -12.50 | 238.94 | -49.17 | 111.64 | 0.7969 | 82.0 | 106.5 | |
| 0.00 | 2.48 | 0.00 | 2.00 | -11.19 | 239.12 | -48.98 | 110.14 | 0.7907 | 240.0 | 155.9 | |
| 0.00 | 1.68 | 0.00 | 1.33 | -9.15 | 239.50 | -48.61 | 107.80 | 0.7801 | -731.0 | -684.8 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -9.38 | 239.08 | -49.02 | 107.93 | 0.7851 | -550.0 | -507.2 | |
| 0.00 | 1.06 | 0.00 | 0.87 | -11.53 | 238.57 | -49.54 | 110.33 | 0.7972 | -323.0 | -277.1 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -9.80 | 238.91 | -49.20 | 108.38 | 0.7883 | 166.0 | 123.3 | |
| 0.00 | 1.51 | 0.00 | 1.24 | -11.78 | 238.27 | -49.84 | 110.51 | 0.8010 | -643.0 | -522.8 | |
| 0.00 | 1.51 | 0.00 | 1.27 | -13.28 | 237.81 | -50.29 | 112.11 | 0.8103 | -668.0 | -541.5 | |
| 1.33 | 2.30 | 1.06 | 1.84 | -9.03 | 238.77 | -49.33 | 107.39 | 0.7872 | -671.7 | -545.5 | |
| 1.95 | 6.91 | 1.60 | 5.69 | -11.38 | 238.17 | -49.93 | 110.00 | 0.8006 | -788.9 | -530.8 | |
| 0.00 | 2.30 | 0.00 | 1.92 | -12.18 | 237.73 | -50.37 | 110.78 | 0.8075 | -397.0 | -360.8 | |
| 1.77 | 15.14 | 1.44 | 12.34 | -9.77 | 238.20 | -49.90 | 108.09 | 0.7953 | -852.2 | -603.8 | |
| 3.63 | -57.00 | 2.96 | -57.00 | -9.97 | 238.11 | -49.99 | 108.29 | 0.7968 | -949.3 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.92 | -11.80 | 237.68 | -50.42 | 110.32 | 0.8068 | -467.0 | -543.7 | |
| 2.12 | 5.31 | 1.80 | 4.50 | -12.63 | 237.26 | -50.84 | 111.14 | 0.8134 | -831.6 | -653.4 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -11.63 | 237.53 | -50.57 | 110.06 | 0.8076 | -401.0 | -460.6 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -9.20 | 238.03 | -50.07 | 107.33 | 0.7952 | -434.0 | -426.8 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -12.72 | 236.99 | -51.11 | 111.14 | 0.8162 | -666.0 | -606.6 | |
| 0.00 | 1.59 | 0.00 | 1.34 | -11.17 | 237.06 | -51.04 | 109.34 | 0.8107 | -763.0 | -647.7 | |
| 0.00 | 1.33 | 0.00 | 1.17 | -14.06 | 235.98 | -52.12 | 112.31 | 0.8298 | 309.0 | 172.8 | |
| 0.00 | 3.19 | 0.00 | 2.83 | -14.10 | 235.66 | -52.44 | 112.22 | 0.8327 | -407.0 | -375.1 | |
| 0.00 | 1.42 | 0.00 | 1.25 | -13.16 | 235.81 | -52.29 | 111.20 | 0.8285 | -593.0 | -552.9 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -8.81 | 236.85 | -51.25 | 106.47 | 0.8059 | 362.0 | 281.7 | |
| 4.78 | 11.78 | 4.01 | 9.87 | -9.39 | 236.68 | -51.42 | 107.10 | 0.8091 | 302.6 | -106.8 | |
| 0.00 | 1.86 | 0.00 | 1.64 | -12.94 | 235.72 | -52.38 | 110.93 | 0.8286 | -462.0 | -385.9 | |
| 0.00 | 1.59 | 0.00 | 1.38 | -11.93 | 236.02 | -52.09 | 109.86 | 0.8229 | -356.0 | -336.6 | |
| 0.00 | 1.68 | 0.00 | 1.48 | -12.77 | 235.57 | -52.53 | 110.67 | 0.8295 | -672.0 | -611.8 | |
| 1.33 | 350.79 | 1.15 | 307.26 | -11.23 | 235.80 | -52.30 | 108.97 | 0.8228 | -819.9 | -355.6 | |
| 3.81 | 127.67 | 3.39 | 116.19 | -12.59 | 235.11 | -52.99 | 110.30 | 0.8331 | -781.4 | -330.3 | |
| 2.83 | -74.00 | 2.53 | -74.00 | -12.24 | 234.80 | -53.30 | 109.80 | 0.8349 | -753.6 | 999999 | |
| 58.79 | -73.00 | 51.60 | -73.00 | -10.79 | 235.15 | -52.95 | 108.24 | 0.8276 | -958.4 | 999999 | |
| 8.77 | -74.00 | 7.94 | -74.00 | -12.51 | 234.41 | -53.69 | 109.96 | 0.8391 | -724.2 | 999999 | |
| 1.15 | -74.00 | 1.04 | -74.00 | -12.10 | 234.38 | -53.73 | 109.48 | 0.8383 | -529.9 | 999999 | |
| 3.45 | -73.00 | 3.05 | -73.00 | -10.24 | 234.73 | -53.38 | 107.46 | 0.8301 | -425.3 | 999999 | |
| 0.27 | -74.00 | 0.24 | -74.00 | -12.35 | 234.04 | -54.07 | 109.66 | 0.8420 | -242.3 | 999999 | |
| 1.51 | -74.00 | 1.39 | -74.00 | -12.89 | 233.76 | -54.34 | 110.17 | 0.8459 | -539.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.40 | -12.23 | 233.38 | -54.72 | 109.30 | 0.8474 | -115.0 | -28.8 | |
| 0.71 | -73.00 | 0.64 | -73.00 | -10.49 | 233.83 | -54.27 | 107.45 | 0.8389 | -228.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -11.98 | 233.35 | -54.75 | 109.01 | 0.8470 | -204.0 | -186.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
