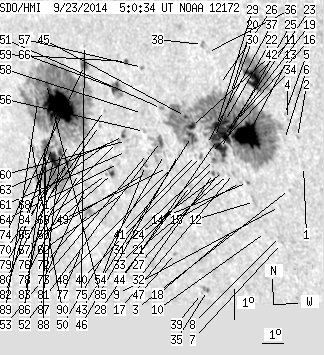

SDO HMI 2014-09-23 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.77 | 1185.68 | 175.11 | 948.26 | -11.06 | 238.99 | -48.57 | 110.23 | 0.7844 | 26.8 | -17.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.62 | -11.67 | 246.01 | -41.55 | 114.09 | 0.7138 | -685.0 | -506.1 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -10.76 | 245.93 | -41.63 | 112.86 | 0.7106 | -625.0 | -430.6 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -12.46 | 245.27 | -42.28 | 114.73 | 0.7256 | 520.0 | 416.4 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -10.22 | 245.60 | -41.95 | 111.99 | 0.7119 | 635.0 | 476.9 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -10.07 | 245.50 | -42.05 | 111.75 | 0.7123 | -416.0 | -333.6 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -10.87 | 245.37 | -42.19 | 112.73 | 0.7173 | 563.0 | 489.3 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -14.24 | 244.54 | -43.02 | 116.59 | 0.7417 | 513.0 | 386.6 | |
| 0.00 | 1.95 | 0.00 | 1.43 | -14.02 | 244.55 | -43.00 | 116.31 | 0.7406 | 184.0 | 316.0 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -13.04 | 244.73 | -42.83 | 115.19 | 0.7341 | 444.0 | 364.8 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -13.94 | 243.93 | -43.63 | 115.90 | 0.7467 | 527.0 | 466.2 | |
| 20.90 | 68.27 | 14.87 | 48.47 | -9.01 | 244.42 | -43.13 | 109.84 | 0.7202 | 966.4 | 525.0 | |
| 0.00 | 4.34 | 0.00 | 3.21 | -12.98 | 243.68 | -43.88 | 114.57 | 0.7450 | 677.0 | 462.1 | |
| 41.08 | 480.17 | 29.89 | 354.26 | -10.88 | 243.81 | -43.74 | 111.99 | 0.7346 | 1162.0 | 317.6 | |
| 0.35 | 1.15 | 0.26 | 0.85 | -12.39 | 243.51 | -44.05 | 113.75 | 0.7442 | 678.2 | 549.1 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -12.42 | 243.20 | -44.36 | 113.64 | 0.7476 | 547.0 | 439.2 | |
| 1.15 | -13.00 | 0.84 | -13.00 | -10.48 | 243.37 | -44.18 | 111.27 | 0.7377 | 732.0 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.58 | -12.15 | 242.95 | -44.60 | 113.19 | 0.7491 | 371.0 | 313.0 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -14.00 | 242.52 | -45.04 | 115.27 | 0.7615 | 295.0 | 206.3 | |
| 1.95 | -13.00 | 1.43 | -13.00 | -10.65 | 243.17 | -44.39 | 111.40 | 0.7407 | 940.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -9.60 | 243.31 | -44.24 | 110.12 | 0.7350 | 220.0 | 220.8 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -12.20 | 242.73 | -44.83 | 113.15 | 0.7517 | 260.0 | 254.1 | |
| 4.43 | -13.00 | 3.27 | -13.00 | -10.52 | 242.89 | -44.66 | 111.11 | 0.7431 | 818.0 | 999999 | |
| 10.09 | -13.00 | 7.48 | -13.00 | -11.00 | 242.76 | -44.80 | 111.66 | 0.7465 | 705.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -12.13 | 242.52 | -45.03 | 112.96 | 0.7536 | 337.0 | 310.6 | |
| 10.89 | -13.00 | 8.13 | -13.00 | -11.40 | 242.55 | -45.01 | 112.06 | 0.7504 | 685.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -9.36 | 242.88 | -44.67 | 109.62 | 0.7388 | 449.0 | 370.5 | |
| 0.00 | 1.15 | 0.00 | 0.87 | -12.24 | 242.28 | -45.28 | 112.99 | 0.7566 | 492.0 | 385.0 | |
| 0.27 | -13.00 | 0.20 | -13.00 | -11.12 | 242.47 | -45.08 | 111.68 | 0.7500 | 727.3 | 999999 | |
| 4.07 | -13.00 | 3.03 | -13.00 | -10.68 | 242.52 | -45.04 | 111.14 | 0.7478 | 624.2 | 999999 | |
| 3.63 | -13.00 | 2.71 | -13.00 | -11.07 | 242.35 | -45.20 | 111.56 | 0.7511 | 530.2 | 999999 | |
| 0.80 | -13.00 | 0.60 | -13.00 | -11.78 | 242.21 | -45.35 | 112.38 | 0.7555 | 492.2 | 999999 | |
| 0.80 | 1.68 | 0.60 | 1.27 | -12.23 | 242.06 | -45.50 | 112.88 | 0.7588 | 505.6 | 425.4 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -12.01 | 242.11 | -45.44 | 112.62 | 0.7574 | 400.0 | 335.5 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -11.60 | 242.07 | -45.49 | 112.10 | 0.7562 | 410.0 | 324.5 | |
| 0.53 | 3.10 | 0.43 | 2.48 | -16.10 | 240.76 | -46.80 | 116.93 | 0.7878 | 695.8 | 561.8 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -8.39 | 242.52 | -45.04 | 108.22 | 0.7393 | 688.0 | 580.6 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -11.32 | 241.95 | -45.61 | 111.70 | 0.7564 | 300.0 | 247.3 | |
| 0.00 | 3.01 | 0.00 | 2.21 | -8.16 | 242.34 | -45.22 | 107.85 | 0.7405 | 560.0 | 489.2 | |
| 0.00 | 0.44 | 0.00 | 0.36 | -16.22 | 240.44 | -47.11 | 116.92 | 0.7913 | 245.0 | 194.6 | |
| 0.71 | 2.21 | 0.54 | 1.68 | -11.74 | 241.60 | -45.96 | 112.06 | 0.7617 | 436.9 | 294.6 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -11.72 | 241.38 | -46.18 | 111.95 | 0.7640 | 358.0 | 265.2 | |
| 4.52 | -13.00 | 3.43 | -13.00 | -10.81 | 241.39 | -46.17 | 110.82 | 0.7603 | 589.8 | 999999 | |
| 5.76 | -13.00 | 4.39 | -13.00 | -11.13 | 241.33 | -46.23 | 111.19 | 0.7622 | 459.9 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.65 | -12.71 | 240.92 | -46.63 | 112.96 | 0.7725 | 182.0 | 267.5 | |
| 1.15 | -13.00 | 0.88 | -13.00 | -10.51 | 241.18 | -46.37 | 110.36 | 0.7614 | 351.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -11.76 | 240.60 | -46.95 | 111.66 | 0.7721 | 505.0 | 463.8 | |
| 0.00 | 1.33 | 0.00 | 1.08 | -15.01 | 239.61 | -47.95 | 115.12 | 0.7943 | -592.0 | -559.4 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.21 | 240.18 | -47.38 | 112.03 | 0.7781 | 483.0 | 424.9 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -12.23 | 239.99 | -47.56 | 111.97 | 0.7800 | 323.0 | 281.3 | |
| 0.00 | 1.59 | 0.00 | 1.25 | -11.82 | 239.95 | -47.60 | 111.46 | 0.7789 | 337.0 | 288.1 | |
| 0.00 | 2.21 | 0.00 | 1.72 | -10.36 | 240.13 | -47.42 | 109.74 | 0.7719 | -387.0 | -379.4 | |
| 3.01 | 21.16 | 2.37 | 16.72 | -11.42 | 239.86 | -47.70 | 110.93 | 0.7784 | 549.2 | 87.9 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -11.87 | 239.16 | -48.40 | 111.18 | 0.7871 | 207.0 | 163.8 | |
| 0.44 | 3.01 | 0.36 | 2.42 | -12.26 | 238.97 | -48.59 | 111.58 | 0.7904 | 438.2 | 312.0 | |
| 0.00 | 8.23 | 0.00 | 6.65 | -12.52 | 238.90 | -48.66 | 111.87 | 0.7920 | 67.0 | 88.2 | |
| 0.00 | 1.51 | 0.00 | 1.20 | -11.17 | 239.18 | -48.38 | 110.35 | 0.7845 | 260.0 | 166.6 | |
| 0.00 | 1.42 | 0.00 | 1.10 | -9.14 | 239.50 | -48.05 | 107.98 | 0.7743 | -747.0 | -678.5 | |
| 0.00 | 1.42 | 0.00 | 1.12 | -10.60 | 239.21 | -48.34 | 109.67 | 0.7822 | -402.0 | -352.3 | |
| 1.24 | 2.13 | 0.98 | 1.68 | -9.02 | 238.79 | -48.77 | 107.57 | 0.7814 | -717.1 | -587.5 | |
| 0.00 | 2.13 | 0.00 | 1.73 | -11.54 | 238.25 | -49.31 | 110.43 | 0.7950 | -398.0 | -398.0 | |
| 0.00 | 1.86 | 0.00 | 1.52 | -11.90 | 238.16 | -49.39 | 110.83 | 0.7971 | -347.0 | -325.2 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -13.20 | 237.77 | -49.79 | 112.21 | 0.8053 | -654.0 | -546.0 | |
| 1.15 | 3.63 | 0.94 | 2.95 | -11.43 | 238.14 | -49.42 | 110.25 | 0.7958 | -758.8 | -583.5 | |
| 0.00 | 1.42 | 0.00 | 1.17 | -12.32 | 237.67 | -49.89 | 111.14 | 0.8033 | -464.0 | -468.0 | |
| 0.00 | 3.36 | 0.00 | 2.76 | -11.65 | 237.80 | -49.76 | 110.39 | 0.7998 | -573.0 | -567.4 | |
| 4.87 | 13.81 | 3.93 | 11.13 | -9.92 | 238.09 | -49.46 | 108.43 | 0.7913 | -905.4 | -640.3 | |
| 2.21 | 6.20 | 1.85 | 5.19 | -12.68 | 237.29 | -50.27 | 111.41 | 0.8081 | -834.8 | -659.2 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -11.61 | 237.52 | -50.04 | 110.24 | 0.8024 | -595.0 | -488.3 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -12.74 | 236.98 | -50.58 | 111.36 | 0.8113 | -596.0 | -526.9 | |
| 0.00 | 1.06 | 0.00 | 0.87 | -10.68 | 237.40 | -50.15 | 109.08 | 0.8006 | -653.0 | -581.2 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -11.19 | 237.04 | -50.51 | 109.55 | 0.8057 | -691.0 | -622.7 | |
| 0.00 | 7.08 | 0.00 | 6.21 | -14.07 | 235.73 | -51.83 | 112.43 | 0.8271 | -399.0 | -348.0 | |
| 0.00 | 3.01 | 0.00 | 2.61 | -13.20 | 235.85 | -51.70 | 111.47 | 0.8232 | -626.0 | -396.2 | |
| 3.72 | 6.38 | 3.08 | 5.28 | -9.34 | 236.73 | -50.83 | 107.24 | 0.8032 | 259.8 | -54.9 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -8.70 | 236.86 | -50.70 | 106.51 | 0.8001 | 149.0 | 172.4 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -12.01 | 236.04 | -51.51 | 110.15 | 0.8177 | -265.0 | -271.0 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -15.27 | 234.91 | -52.65 | 113.48 | 0.8382 | 287.0 | 215.5 | |
| 0.00 | 1.15 | 0.00 | 1.00 | -12.85 | 235.56 | -52.00 | 110.95 | 0.8249 | -681.0 | -590.5 | |
| 0.00 | 1.33 | 0.00 | 1.16 | -11.95 | 235.31 | -52.25 | 109.83 | 0.8244 | -131.0 | -164.1 | |
| 2.83 | 487.69 | 2.49 | 426.25 | -12.55 | 235.09 | -52.47 | 110.43 | 0.8282 | -784.9 | -331.9 | |
| 3.45 | -80.00 | 3.05 | -80.00 | -12.26 | 234.81 | -52.74 | 110.00 | 0.8299 | -750.1 | 999999 | |
| 63.84 | -80.00 | 55.30 | -80.00 | -10.77 | 235.17 | -52.39 | 108.40 | 0.8223 | -945.4 | 999999 | |
| 9.30 | -80.00 | 8.31 | -80.00 | -12.52 | 234.38 | -53.18 | 110.15 | 0.8346 | -721.4 | 999999 | |
| 0.27 | -80.00 | 0.24 | -80.00 | -12.14 | 234.44 | -53.12 | 109.73 | 0.8329 | -639.7 | 999999 | |
| 2.74 | -80.00 | 2.39 | -80.00 | -10.10 | 234.67 | -52.89 | 107.45 | 0.8251 | -438.4 | 999999 | |
| 3.81 | -80.00 | 3.41 | -80.00 | -12.08 | 234.09 | -53.46 | 109.54 | 0.8359 | -421.5 | 999999 | |
| 0.27 | -80.00 | 0.24 | -80.00 | -12.37 | 234.01 | -53.55 | 109.85 | 0.8375 | -251.3 | 999999 | |
| 2.30 | -80.00 | 2.09 | -80.00 | -12.86 | 233.80 | -53.76 | 110.34 | 0.8407 | -481.0 | 999999 | |
| 1.24 | -80.00 | 1.10 | -80.00 | -10.76 | 234.04 | -53.51 | 108.01 | 0.8327 | -60.9 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.54 | -11.96 | 233.34 | -54.22 | 109.16 | 0.8423 | -369.0 | -221.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
