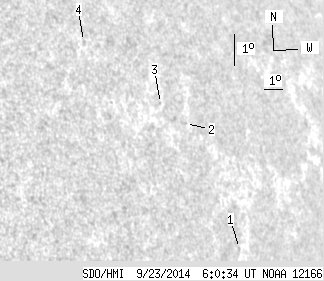

SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.99 | 0.00 | 3.54 | 15.64 | 343.68 | 56.67 | 284.24 | 0.8320 | 321.0 | 307.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.85 | 11.49 | 346.55 | 59.54 | 279.20 | 0.8578 | 403.0 | 443.4 | |
| 0.00 | 1.06 | 0.00 | 0.97 | 15.50 | 344.91 | 57.90 | 283.94 | 0.8432 | 363.0 | 283.0 | |
| 0.00 | 0.62 | 0.00 | 0.55 | 16.24 | 343.78 | 56.77 | 284.86 | 0.8331 | 306.0 | 260.7 | |
| 0.00 | 1.42 | 0.00 | 1.17 | 18.49 | 340.53 | 53.52 | 287.86 | 0.8034 | 212.0 | 251.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
