SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.86 | 0.00 | 8.02 | -14.72 | 284.22 | -2.79 | 171.89 | 0.3892 | 743.0 | 598.2 | |
|
previous
or next observation for the same group /

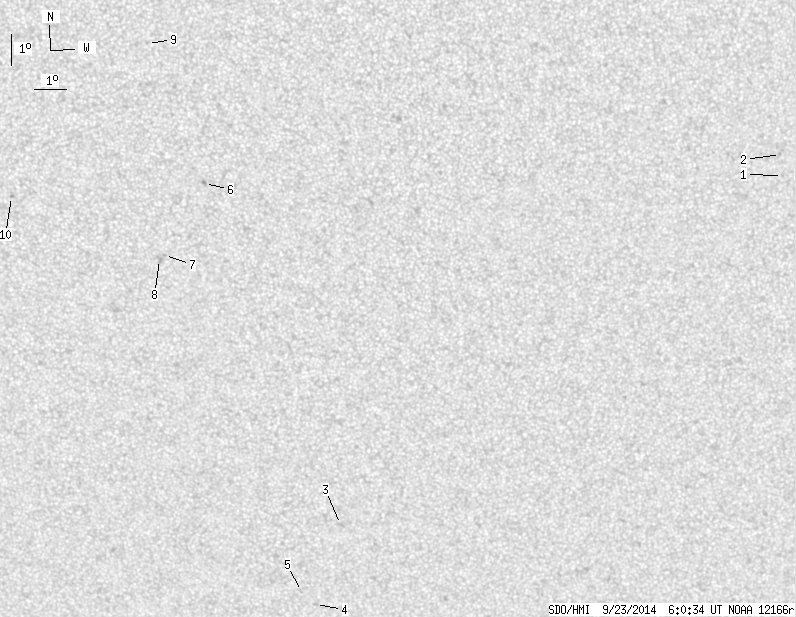

back to the solar disc SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.57 | -10.37 | 300.01 | 13.00 | 216.80 | 0.3711 | 702.0 | 522.3 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -9.71 | 299.92 | 12.92 | 217.72 | 0.3617 | 766.0 | 624.2 | |
| 0.00 | 2.21 | 0.00 | 1.25 | -21.59 | 286.33 | -0.68 | 178.69 | 0.4811 | 775.0 | 573.4 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -24.38 | 285.49 | -1.52 | 177.34 | 0.5237 | 682.0 | 531.7 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -23.92 | 285.03 | -1.98 | 176.49 | 0.5172 | 585.0 | 650.0 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -10.44 | 282.22 | -4.79 | 164.67 | 0.3121 | 902.0 | 752.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.74 | 280.93 | -6.08 | 162.99 | 0.3545 | 814.0 | 649.8 | |
| 0.00 | 3.98 | 0.00 | 2.11 | -12.87 | 280.77 | -6.23 | 162.69 | 0.3573 | 719.0 | 560.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -6.09 | 280.54 | -6.47 | 153.65 | 0.2535 | 681.0 | 480.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.94 | 276.23 | -10.77 | 149.08 | 0.3587 | 804.0 | 676.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
