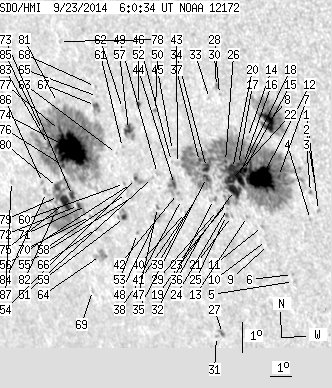

SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 220.48 | 1207.43 | 174.27 | 955.08 | -11.04 | 238.94 | -48.07 | 110.41 | 0.7792 | 12.8 | -16.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.99 | -11.72 | 246.03 | -40.98 | 114.45 | 0.7077 | -761.0 | -612.8 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -10.80 | 246.03 | -40.98 | 113.25 | 0.7034 | -333.0 | -390.7 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -11.17 | 245.80 | -41.21 | 113.61 | 0.7077 | 542.0 | 430.8 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -12.03 | 245.64 | -41.37 | 114.66 | 0.7135 | -383.0 | -376.9 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -14.11 | 244.49 | -42.51 | 116.68 | 0.7358 | 594.0 | 485.5 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -13.88 | 244.50 | -42.50 | 116.40 | 0.7346 | 521.0 | 416.5 | |
| 1.59 | 498.24 | 1.13 | 363.74 | -10.77 | 244.55 | -42.46 | 112.46 | 0.7199 | 1190.4 | 320.0 | |
| 16.03 | 73.23 | 11.31 | 51.54 | -9.06 | 244.41 | -42.59 | 110.14 | 0.7142 | 981.6 | 525.1 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -12.99 | 243.69 | -43.32 | 114.87 | 0.7392 | 634.0 | 521.6 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -12.87 | 243.63 | -43.38 | 114.69 | 0.7392 | 598.0 | 524.6 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -12.43 | 243.55 | -43.46 | 114.10 | 0.7381 | 751.0 | 516.6 | |
| 38.87 | -7.00 | 28.02 | -7.00 | -10.89 | 243.82 | -43.19 | 112.26 | 0.7286 | 1155.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -12.17 | 242.97 | -44.04 | 113.48 | 0.7432 | 503.0 | 430.1 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -9.64 | 243.44 | -43.57 | 110.47 | 0.7276 | 558.0 | 495.7 | |
| 5.14 | -7.00 | 3.74 | -7.00 | -10.71 | 243.09 | -43.92 | 111.68 | 0.7358 | 891.8 | 999999 | |
| 0.97 | -7.00 | 0.71 | -7.00 | -10.48 | 243.13 | -43.88 | 111.41 | 0.7344 | 893.1 | 999999 | |
| 1.15 | -7.00 | 0.84 | -7.00 | -10.53 | 242.90 | -44.10 | 111.37 | 0.7371 | 818.0 | 999999 | |
| 11.42 | -7.00 | 8.38 | -7.00 | -10.95 | 242.78 | -44.23 | 111.85 | 0.7401 | 740.4 | 999999 | |
| 10.54 | -7.00 | 7.78 | -7.00 | -11.38 | 242.57 | -44.44 | 112.30 | 0.7442 | 698.6 | 999999 | |
| 6.82 | -7.00 | 5.01 | -7.00 | -10.68 | 242.62 | -44.39 | 111.44 | 0.7408 | 633.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -12.23 | 242.26 | -44.75 | 113.22 | 0.7509 | 488.0 | 353.9 | |
| 5.14 | -7.00 | 3.80 | -7.00 | -11.07 | 242.46 | -44.55 | 111.86 | 0.7441 | 580.1 | 999999 | |
| 1.42 | -7.00 | 1.06 | -7.00 | -11.79 | 242.18 | -44.83 | 112.64 | 0.7500 | 493.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -11.99 | 242.14 | -44.87 | 112.86 | 0.7512 | 422.0 | 378.2 | |
| 0.53 | 1.68 | 0.40 | 1.26 | -12.22 | 242.05 | -44.96 | 113.10 | 0.7532 | 499.0 | 442.2 | |
| 0.71 | -7.00 | 0.52 | -7.00 | -10.49 | 242.35 | -44.66 | 111.07 | 0.7429 | 442.5 | 999999 | |
| 1.06 | 3.19 | 0.84 | 2.52 | -16.10 | 240.85 | -46.16 | 117.24 | 0.7816 | 690.6 | 583.2 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -8.39 | 242.45 | -44.56 | 108.40 | 0.7339 | 670.0 | 568.9 | |
| 0.00 | 1.33 | 0.00 | 1.00 | -12.09 | 241.68 | -45.33 | 112.78 | 0.7565 | 363.0 | 274.5 | |
| 0.00 | 2.04 | 0.00 | 1.48 | -8.14 | 242.35 | -44.66 | 108.05 | 0.7341 | 616.0 | 554.2 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -16.23 | 240.54 | -46.47 | 117.24 | 0.7852 | 375.0 | 346.2 | |
| 0.00 | 3.54 | 0.00 | 2.67 | -11.75 | 241.58 | -45.43 | 112.31 | 0.7562 | 351.0 | 330.5 | |
| 0.00 | 1.51 | 0.00 | 1.10 | -8.55 | 241.99 | -45.02 | 108.43 | 0.7396 | 474.0 | 373.2 | |
| 4.78 | -7.00 | 3.59 | -7.00 | -10.75 | 241.48 | -45.53 | 111.02 | 0.7534 | 594.9 | 999999 | |
| 3.28 | -7.00 | 2.47 | -7.00 | -11.07 | 241.41 | -45.60 | 111.39 | 0.7553 | 602.9 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.43 | -12.76 | 240.95 | -46.06 | 113.27 | 0.7667 | 260.0 | 254.0 | |
| 2.92 | -7.00 | 2.20 | -7.00 | -10.59 | 241.20 | -45.81 | 110.69 | 0.7557 | 152.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -11.79 | 240.82 | -46.19 | 112.02 | 0.7643 | 341.0 | 389.0 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -12.14 | 240.42 | -46.59 | 112.28 | 0.7697 | 309.0 | 365.7 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -12.29 | 240.21 | -46.80 | 112.36 | 0.7725 | 493.0 | 433.0 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -11.88 | 240.12 | -46.89 | 111.83 | 0.7719 | 546.0 | 474.4 | |
| 0.00 | 1.33 | 0.00 | 1.03 | -11.71 | 239.98 | -47.03 | 111.56 | 0.7726 | 577.0 | 488.9 | |
| 0.00 | 1.68 | 0.00 | 1.29 | -10.74 | 240.19 | -46.82 | 110.46 | 0.7669 | -386.0 | -310.8 | |
| 1.77 | 12.40 | 1.38 | 9.66 | -11.43 | 239.91 | -47.10 | 111.19 | 0.7724 | 608.7 | 239.9 | |
| 0.00 | 1.86 | 0.00 | 1.43 | -10.35 | 240.04 | -46.97 | 109.91 | 0.7670 | -457.0 | -453.2 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -10.70 | 239.93 | -47.08 | 110.30 | 0.7695 | 155.0 | 156.8 | |
| 0.44 | 1.42 | 0.35 | 1.13 | -12.25 | 238.94 | -48.07 | 111.77 | 0.7852 | 447.2 | 337.8 | |
| 0.00 | 9.03 | 0.00 | 7.22 | -12.54 | 238.86 | -48.14 | 112.10 | 0.7869 | 45.0 | 86.2 | |
| 0.00 | 1.68 | 0.00 | 1.32 | -11.15 | 239.19 | -47.82 | 110.55 | 0.7787 | 357.0 | 240.2 | |
| 0.00 | 1.51 | 0.00 | 1.16 | -9.15 | 239.50 | -47.51 | 108.20 | 0.7686 | -751.0 | -644.5 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -11.30 | 238.93 | -48.08 | 110.63 | 0.7819 | -407.0 | -309.7 | |
| 1.24 | 2.13 | 0.97 | 1.66 | -9.03 | 238.75 | -48.26 | 107.77 | 0.7761 | -674.4 | -548.4 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -13.18 | 237.75 | -49.25 | 112.41 | 0.8001 | -723.0 | -600.7 | |
| 0.97 | 8.50 | 0.78 | 6.82 | -11.41 | 238.11 | -48.90 | 110.43 | 0.7905 | -762.4 | -451.8 | |
| 0.00 | 2.74 | 0.00 | 2.23 | -12.04 | 237.77 | -49.24 | 111.05 | 0.7960 | -182.0 | -237.8 | |
| 0.00 | 1.42 | 0.00 | 1.15 | -11.59 | 237.88 | -49.13 | 110.56 | 0.7934 | -563.0 | -517.0 | |
| 5.14 | 13.72 | 4.09 | 10.93 | -9.87 | 238.12 | -48.89 | 108.57 | 0.7853 | -898.1 | -661.0 | |
| 0.00 | 1.59 | 0.00 | 1.30 | -11.93 | 237.56 | -49.45 | 110.85 | 0.7977 | -774.0 | -622.6 | |
| 2.48 | 7.88 | 2.05 | 6.53 | -12.72 | 237.26 | -49.75 | 111.66 | 0.8033 | -819.2 | -623.8 | |
| 0.00 | 1.06 | 0.00 | 0.87 | -11.62 | 237.54 | -49.47 | 110.46 | 0.7968 | -467.0 | -516.8 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -10.47 | 237.71 | -49.29 | 109.15 | 0.7914 | -617.0 | -532.8 | |
| 0.00 | 2.04 | 0.00 | 1.62 | -9.23 | 237.97 | -49.04 | 107.73 | 0.7848 | -543.0 | -515.9 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -10.69 | 237.38 | -49.63 | 109.29 | 0.7954 | -688.0 | -631.1 | |
| 0.00 | 11.25 | 0.00 | 9.74 | -14.09 | 235.68 | -51.33 | 112.63 | 0.8226 | -441.0 | -371.2 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -8.96 | 236.84 | -50.17 | 107.01 | 0.7955 | 259.0 | 164.6 | |
| 0.00 | 1.33 | 0.00 | 1.14 | -13.22 | 235.75 | -51.26 | 111.66 | 0.8192 | -641.0 | -589.3 | |
| 2.04 | 7.35 | 1.67 | 6.01 | -9.26 | 236.68 | -50.32 | 107.31 | 0.7979 | -88.7 | -163.2 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -8.65 | 236.80 | -50.21 | 106.62 | 0.7950 | 337.0 | 194.4 | |
| 0.00 | 1.42 | 0.00 | 1.26 | -15.29 | 234.87 | -52.14 | 113.69 | 0.8337 | 262.0 | 179.2 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -12.86 | 235.56 | -51.45 | 111.16 | 0.8198 | -665.0 | -591.9 | |
| 0.00 | 1.51 | 0.00 | 1.30 | -12.52 | 235.46 | -51.55 | 110.73 | 0.8197 | -443.0 | -418.9 | |
| 1.77 | 492.66 | 1.54 | 425.09 | -12.56 | 235.04 | -51.96 | 110.63 | 0.8236 | -746.2 | -336.9 | |
| 3.63 | -72.00 | 3.16 | -72.00 | -12.26 | 234.83 | -52.18 | 110.21 | 0.8247 | -746.5 | 999999 | |
| 63.66 | -72.00 | 54.46 | -72.00 | -10.78 | 235.17 | -51.84 | 108.60 | 0.8171 | -938.8 | 999999 | |
| 9.92 | -72.00 | 8.74 | -72.00 | -12.53 | 234.39 | -52.61 | 110.36 | 0.8295 | -750.6 | 999999 | |
| 1.42 | -72.00 | 1.23 | -72.00 | -11.34 | 234.57 | -52.43 | 109.05 | 0.8244 | -293.8 | 999999 | |
| 1.24 | -72.00 | 1.07 | -72.00 | -10.23 | 234.70 | -52.31 | 107.79 | 0.8200 | -498.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -7.41 | 235.28 | -51.73 | 104.62 | 0.8069 | -480.0 | -407.2 | |
| 2.74 | -72.00 | 2.44 | -72.00 | -12.37 | 234.08 | -52.93 | 110.07 | 0.8318 | -212.7 | 999999 | |
| 3.63 | -72.00 | 3.21 | -72.00 | -12.08 | 234.11 | -52.89 | 109.75 | 0.8307 | -431.1 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.51 | -9.35 | 234.80 | -52.21 | 106.78 | 0.8166 | -211.0 | -181.4 | |
| 2.21 | -72.00 | 1.99 | -72.00 | -12.88 | 233.77 | -53.23 | 110.54 | 0.8361 | -507.7 | 999999 | |
| 2.66 | -72.00 | 2.33 | -72.00 | -10.74 | 234.02 | -52.99 | 108.16 | 0.8278 | 74.0 | 999999 | |
| 0.00 | 3.81 | 0.00 | 3.43 | -12.30 | 233.48 | -53.53 | 109.78 | 0.8371 | -50.0 | -83.0 | |
| 1.15 | -72.00 | 1.01 | -72.00 | -10.32 | 233.82 | -53.19 | 107.60 | 0.8286 | -220.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.36 | -12.00 | 233.36 | -53.65 | 109.39 | 0.8373 | -351.0 | -241.8 | |
| 0.00 | 1.33 | 0.00 | 1.25 | -12.14 | 231.67 | -55.34 | 108.99 | 0.8525 | -304.0 | -293.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
