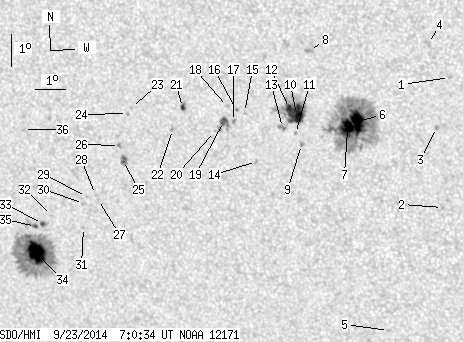

SDO HMI 2014-09-23 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.21 | 466.51 | 54.37 | 262.09 | -10.53 | 265.03 | -21.43 | 129.85 | 0.4642 | 247.8 | 110.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.33 | 272.73 | -13.73 | 136.07 | 0.3409 | 996.0 | 730.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.42 | 272.33 | -14.13 | 142.59 | 0.3954 | 713.0 | 566.8 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -8.90 | 272.26 | -14.20 | 138.17 | 0.3649 | 803.0 | 681.2 | |
| 0.00 | 3.90 | 0.00 | 2.05 | -6.30 | 272.11 | -14.36 | 132.59 | 0.3363 | 606.0 | 630.0 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -15.43 | 270.34 | -16.12 | 144.65 | 0.4646 | 507.0 | 328.3 | |
| 20.36 | 200.99 | 10.96 | 108.26 | -8.80 | 269.77 | -16.69 | 133.31 | 0.3917 | 1380.3 | 416.6 | |
| 17.71 | -6.00 | 9.55 | -6.00 | -9.03 | 269.44 | -17.02 | 133.17 | 0.3981 | 1091.1 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.95 | -6.64 | 268.34 | -18.12 | 126.69 | 0.3870 | 998.0 | 813.4 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -9.58 | 267.94 | -18.52 | 131.75 | 0.4217 | 780.0 | 666.9 | |
| 18.68 | 50.82 | 10.15 | 27.63 | -8.65 | 267.83 | -18.63 | 129.87 | 0.4133 | 1083.7 | 481.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -9.25 | 267.76 | -18.70 | 130.87 | 0.4202 | 585.0 | 326.5 | |
| 5.05 | -10.00 | 2.74 | -10.00 | -8.47 | 267.61 | -18.85 | 129.21 | 0.4141 | 1031.8 | 999999 | |
| 0.00 | 4.07 | 0.00 | 2.23 | -9.08 | 267.36 | -19.11 | 129.94 | 0.4234 | 741.0 | 562.0 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -10.18 | 266.44 | -20.02 | 130.57 | 0.4454 | 622.0 | 474.4 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -8.66 | 266.15 | -20.31 | 127.44 | 0.4340 | -682.0 | -529.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -8.57 | 265.89 | -20.57 | 126.94 | 0.4364 | 635.0 | 578.0 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -8.95 | 265.77 | -20.69 | 127.47 | 0.4415 | 997.0 | 825.8 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -8.49 | 265.61 | -20.86 | 126.40 | 0.4393 | 787.0 | 514.8 | |
| 2.83 | 10.80 | 1.57 | 5.97 | -8.97 | 265.45 | -21.02 | 127.05 | 0.4457 | 877.3 | 621.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -9.30 | 265.13 | -21.33 | 127.22 | 0.4527 | 410.0 | 280.4 | |
| 1.68 | 3.45 | 0.94 | 1.92 | -8.59 | 264.13 | -22.34 | 124.69 | 0.4589 | -901.4 | -754.9 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -9.30 | 263.75 | -22.71 | 125.49 | 0.4699 | -808.0 | -735.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -8.67 | 262.43 | -24.03 | 122.86 | 0.4812 | -684.0 | -588.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.87 | 262.28 | -24.18 | 123.04 | 0.4847 | -838.0 | -665.1 | |
| 1.95 | 5.40 | 1.11 | 3.09 | -10.36 | 262.03 | -24.43 | 125.29 | 0.5004 | -1013.5 | -798.7 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -9.89 | 261.94 | -24.52 | 124.40 | 0.4976 | -902.0 | -804.3 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -11.64 | 261.07 | -25.39 | 126.29 | 0.5232 | -544.0 | -458.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -11.48 | 260.98 | -25.48 | 125.95 | 0.5229 | -525.0 | -453.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -11.57 | 260.67 | -25.80 | 125.74 | 0.5273 | -612.0 | -503.9 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -11.79 | 260.54 | -25.92 | 125.97 | 0.5308 | -656.0 | -533.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -12.56 | 260.46 | -26.00 | 127.06 | 0.5383 | -727.0 | -637.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -12.24 | 259.39 | -27.07 | 125.46 | 0.5482 | -745.0 | -671.4 | |
| 1.42 | 4.07 | 0.84 | 2.42 | -12.51 | 259.05 | -27.41 | 125.53 | 0.5545 | -973.1 | -553.2 | |
| 26.56 | 145.74 | 15.93 | 87.54 | -13.46 | 258.72 | -27.74 | 126.61 | 0.5661 | -1263.8 | -315.5 | |
| 0.97 | 5.49 | 0.58 | 3.28 | -12.62 | 258.79 | -27.67 | 125.44 | 0.5584 | -905.7 | -660.4 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -9.56 | 258.70 | -27.77 | 120.59 | 0.5358 | 153.0 | 87.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
