SDO HMI 2014-09-23 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 212.16 | 1220.06 | 165.76 | 952.73 | -11.02 | 239.12 | -47.34 | 110.68 | 0.7716 | 3.3 | -13.5 | |
|
previous
or next observation for the same group /

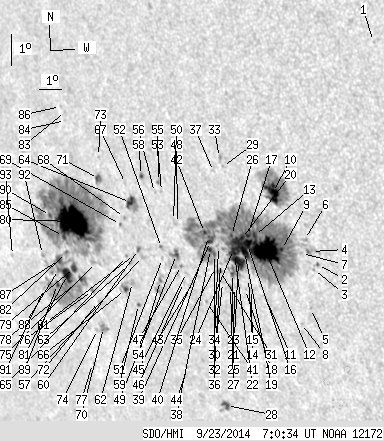

back to the solar disc SDO HMI 2014-09-23 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.34 | -4.00 | 248.90 | -37.56 | 105.26 | 0.6326 | 597.0 | 533.2 | |
| 0.00 | 1.59 | 0.00 | 1.10 | -11.15 | 245.91 | -40.55 | 113.93 | 0.7002 | 547.0 | 469.9 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -11.33 | 245.72 | -40.75 | 114.06 | 0.7032 | 420.0 | 274.4 | |
| 0.00 | 5.93 | 0.00 | 4.10 | -10.76 | 245.73 | -40.73 | 113.32 | 0.7003 | 266.0 | 166.9 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -12.59 | 245.36 | -41.10 | 115.52 | 0.7133 | 592.0 | 371.4 | |
| 0.00 | 2.21 | 0.00 | 1.53 | -10.40 | 245.51 | -40.96 | 112.72 | 0.7013 | 28.0 | 46.9 | |
| 0.00 | 1.42 | 0.00 | 0.99 | -10.85 | 245.31 | -41.15 | 113.22 | 0.7056 | 606.0 | 457.3 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -13.11 | 244.88 | -41.58 | 115.92 | 0.7210 | 440.0 | 339.9 | |
| 1.24 | 507.26 | 0.87 | 366.86 | -10.80 | 244.50 | -41.96 | 112.73 | 0.7145 | 1251.6 | 313.4 | |
| 16.11 | 72.69 | 11.26 | 50.69 | -9.02 | 244.41 | -42.05 | 110.34 | 0.7078 | 998.2 | 520.7 | |
| 0.00 | 1.68 | 0.00 | 1.22 | -12.46 | 243.55 | -42.91 | 114.40 | 0.7323 | 189.0 | 239.9 | |
| 42.94 | -9.00 | 30.66 | -9.00 | -10.89 | 243.82 | -42.65 | 112.51 | 0.7225 | 1128.1 | 999999 | |
| 3.01 | -9.00 | 2.16 | -9.00 | -10.45 | 243.43 | -43.03 | 111.76 | 0.7249 | 718.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -12.19 | 242.97 | -43.49 | 113.77 | 0.7374 | 446.0 | 462.3 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -11.85 | 242.91 | -43.55 | 113.31 | 0.7365 | 457.0 | 401.0 | |
| 6.46 | -9.00 | 4.67 | -9.00 | -10.76 | 243.08 | -43.38 | 112.00 | 0.7301 | 884.9 | 999999 | |
| 1.51 | -9.00 | 1.08 | -9.00 | -10.47 | 243.13 | -43.33 | 111.65 | 0.7283 | 944.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -12.21 | 242.71 | -43.75 | 113.67 | 0.7403 | 429.0 | 314.7 | |
| 6.02 | -9.00 | 4.37 | -9.00 | -10.99 | 242.91 | -43.55 | 112.22 | 0.7329 | 782.2 | 999999 | |
| 1.51 | -9.00 | 1.09 | -9.00 | -10.59 | 242.86 | -43.60 | 111.68 | 0.7318 | 771.8 | 999999 | |
| 9.92 | -9.00 | 7.25 | -9.00 | -11.34 | 242.59 | -43.87 | 112.50 | 0.7379 | 706.5 | 999999 | |
| 2.04 | -9.00 | 1.49 | -9.00 | -11.10 | 242.47 | -44.00 | 112.14 | 0.7382 | 582.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.11 | -12.19 | 242.24 | -44.22 | 113.42 | 0.7452 | 344.0 | 308.1 | |
| 0.27 | -9.00 | 0.19 | -9.00 | -10.97 | 242.45 | -44.02 | 111.97 | 0.7379 | 609.7 | 999999 | |
| 1.42 | -9.00 | 1.04 | -9.00 | -11.75 | 242.25 | -44.21 | 112.86 | 0.7432 | 519.5 | 999999 | |
| 0.89 | -9.00 | 0.65 | -9.00 | -10.53 | 242.44 | -44.02 | 111.41 | 0.7361 | 491.4 | 999999 | |
| 0.53 | 2.04 | 0.39 | 1.51 | -12.20 | 242.07 | -44.39 | 113.35 | 0.7471 | 502.5 | 383.7 | |
| 3.10 | 5.14 | 2.42 | 4.02 | -16.09 | 240.90 | -45.56 | 117.51 | 0.7758 | 680.2 | 486.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -8.38 | 242.41 | -44.05 | 108.61 | 0.7281 | 585.0 | 535.6 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -12.07 | 241.75 | -44.71 | 113.04 | 0.7499 | 392.0 | 313.9 | |
| 0.97 | 2.66 | 0.73 | 1.98 | -11.73 | 241.73 | -44.73 | 112.60 | 0.7486 | 431.8 | 307.1 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -11.47 | 241.79 | -44.67 | 112.30 | 0.7470 | 352.0 | 283.3 | |
| 0.00 | 2.21 | 0.00 | 1.59 | -8.11 | 242.32 | -44.14 | 108.21 | 0.7281 | 572.0 | 517.3 | |
| 0.00 | 2.30 | 0.00 | 1.70 | -10.93 | 241.81 | -44.65 | 111.63 | 0.7446 | 451.0 | 413.0 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -11.62 | 241.54 | -44.92 | 112.37 | 0.7503 | 189.0 | 210.9 | |
| 0.89 | -9.00 | 0.66 | -9.00 | -11.21 | 241.58 | -44.88 | 111.87 | 0.7482 | 558.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -8.57 | 242.00 | -44.46 | 108.68 | 0.7334 | 450.0 | 326.2 | |
| 1.95 | -9.00 | 1.45 | -9.00 | -11.06 | 241.44 | -45.03 | 111.62 | 0.7491 | 556.0 | 999999 | |
| 2.30 | -9.00 | 1.71 | -9.00 | -10.80 | 241.49 | -44.98 | 111.32 | 0.7476 | 651.3 | 999999 | |
| 0.80 | -9.00 | 0.59 | -9.00 | -10.65 | 241.43 | -45.03 | 111.11 | 0.7476 | 522.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -12.75 | 240.89 | -45.57 | 113.48 | 0.7616 | 462.0 | 357.8 | |
| 1.42 | -9.00 | 1.05 | -9.00 | -10.54 | 241.28 | -45.19 | 110.90 | 0.7488 | 357.3 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -12.16 | 240.45 | -46.01 | 112.55 | 0.7638 | 218.0 | 234.5 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -14.99 | 239.45 | -47.01 | 115.52 | 0.7852 | -638.0 | -560.0 | |
| 0.00 | 1.33 | 0.00 | 1.02 | -11.90 | 240.20 | -46.26 | 112.12 | 0.7654 | 418.0 | 334.7 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -12.23 | 239.99 | -46.47 | 112.44 | 0.7689 | 339.0 | 249.4 | |
| 0.00 | 1.24 | 0.00 | 0.95 | -11.69 | 240.02 | -46.44 | 111.79 | 0.7665 | 545.0 | 490.7 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -10.36 | 240.12 | -46.34 | 110.18 | 0.7605 | -184.0 | -175.9 | |
| 2.83 | 8.59 | 2.18 | 6.61 | -11.36 | 239.87 | -46.59 | 111.31 | 0.7668 | 539.7 | 328.5 | |
| 0.00 | 1.33 | 0.00 | 1.01 | -10.28 | 239.96 | -46.50 | 110.01 | 0.7619 | -493.0 | -409.7 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -11.55 | 239.20 | -47.26 | 111.26 | 0.7744 | 203.0 | 151.1 | |
| 0.00 | 1.86 | 0.00 | 1.45 | -11.20 | 239.23 | -47.23 | 110.84 | 0.7728 | 395.0 | 281.8 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -9.41 | 239.59 | -46.88 | 108.77 | 0.7628 | -713.0 | -576.5 | |
| 0.62 | 12.57 | 0.49 | 9.93 | -12.27 | 238.94 | -47.52 | 112.02 | 0.7797 | 449.9 | 122.3 | |
| 0.00 | 2.04 | 0.00 | 1.55 | -9.10 | 239.50 | -46.96 | 108.36 | 0.7626 | -747.0 | -577.3 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -9.47 | 239.26 | -47.20 | 108.72 | 0.7665 | -611.0 | -452.6 | |
| 0.00 | 2.30 | 0.00 | 1.83 | -11.57 | 238.27 | -48.19 | 110.91 | 0.7839 | -474.0 | -494.6 | |
| 1.06 | 2.39 | 0.82 | 1.85 | -8.99 | 238.76 | -47.70 | 107.92 | 0.7701 | -758.7 | -596.3 | |
| 0.53 | 1.33 | 0.43 | 1.08 | -13.14 | 237.69 | -48.77 | 112.55 | 0.7953 | -589.8 | -513.9 | |
| 0.71 | 1.51 | 0.56 | 1.20 | -11.36 | 238.14 | -48.32 | 110.60 | 0.7846 | -808.5 | -726.9 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -11.54 | 237.91 | -48.55 | 110.72 | 0.7875 | -562.0 | -516.6 | |
| 0.00 | 3.10 | 0.00 | 2.51 | -12.46 | 237.59 | -48.87 | 111.69 | 0.7938 | -454.0 | -417.2 | |
| 0.00 | 1.51 | 0.00 | 1.21 | -11.81 | 237.70 | -48.76 | 110.97 | 0.7905 | -546.0 | -584.8 | |
| 6.38 | 14.52 | 5.02 | 11.43 | -9.89 | 238.08 | -48.38 | 108.79 | 0.7801 | -832.5 | -578.0 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -11.64 | 237.51 | -48.95 | 110.69 | 0.7918 | -739.0 | -641.2 | |
| 1.86 | 7.79 | 1.52 | 6.38 | -12.72 | 237.19 | -49.27 | 111.84 | 0.7986 | -824.9 | -631.0 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -9.31 | 237.96 | -48.50 | 108.03 | 0.7795 | -643.0 | -541.8 | |
| 0.00 | 1.42 | 0.00 | 1.13 | -10.40 | 237.70 | -48.76 | 109.26 | 0.7857 | -692.0 | -575.4 | |
| 0.00 | 1.33 | 0.00 | 1.07 | -10.64 | 237.46 | -49.00 | 109.46 | 0.7889 | -674.0 | -589.1 | |
| 0.00 | 7.70 | 0.00 | 6.58 | -14.07 | 235.74 | -50.72 | 112.84 | 0.8170 | -556.0 | -411.6 | |
| 3.01 | 5.76 | 2.43 | 4.65 | -9.27 | 236.71 | -49.75 | 107.52 | 0.7922 | -55.8 | -169.4 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -13.24 | 235.74 | -50.72 | 111.88 | 0.8142 | -702.0 | -602.6 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -8.57 | 236.84 | -49.62 | 106.72 | 0.7888 | 292.0 | 228.8 | |
| 0.00 | 1.59 | 0.00 | 1.37 | -14.16 | 235.41 | -51.05 | 112.82 | 0.8203 | -500.0 | -550.7 | |
| 0.00 | 5.05 | 0.00 | 4.22 | -11.98 | 235.94 | -50.52 | 110.49 | 0.8082 | -441.0 | -424.1 | |
| 0.80 | 2.04 | 0.68 | 1.73 | -12.91 | 235.54 | -50.92 | 111.42 | 0.8150 | -628.2 | -527.3 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -15.31 | 234.78 | -51.69 | 113.89 | 0.8299 | 135.0 | 175.4 | |
| 1.68 | 494.51 | 1.44 | 421.15 | -12.61 | 235.03 | -51.43 | 110.88 | 0.8188 | -755.0 | -334.7 | |
| 3.98 | -78.00 | 3.43 | -78.00 | -12.25 | 234.84 | -51.62 | 110.39 | 0.8195 | -733.7 | 999999 | |
| 63.84 | -78.00 | 53.92 | -78.00 | -10.77 | 235.17 | -51.29 | 108.77 | 0.8118 | -940.4 | 999999 | |
| 9.21 | -78.00 | 8.02 | -78.00 | -12.51 | 234.41 | -52.05 | 110.54 | 0.8243 | -749.4 | 999999 | |
| 0.62 | -78.00 | 0.53 | -78.00 | -11.80 | 234.56 | -51.90 | 109.77 | 0.8207 | -654.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -7.31 | 235.48 | -50.98 | 104.73 | 0.7991 | -451.0 | -488.8 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -7.59 | 235.43 | -51.03 | 105.06 | 0.8003 | -400.0 | -406.5 | |
| 1.15 | -78.00 | 0.99 | -78.00 | -11.30 | 234.54 | -51.92 | 109.17 | 0.8194 | -299.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -7.18 | 235.26 | -51.21 | 104.50 | 0.8010 | -507.0 | -450.5 | |
| 3.54 | -78.00 | 3.09 | -78.00 | -12.06 | 234.13 | -52.33 | 109.92 | 0.8255 | -453.2 | 999999 | |
| 1.59 | -78.00 | 1.40 | -78.00 | -12.39 | 233.99 | -52.47 | 110.25 | 0.8278 | -185.8 | 999999 | |
| 1.86 | -78.00 | 1.65 | -78.00 | -12.89 | 233.79 | -52.67 | 110.75 | 0.8310 | -556.8 | 999999 | |
| 1.59 | -78.00 | 1.38 | -78.00 | -10.69 | 234.04 | -52.42 | 108.29 | 0.8223 | 36.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.12 | -13.09 | 233.06 | -53.41 | 110.72 | 0.8382 | 251.0 | 209.9 | |
| 0.00 | 1.59 | 0.00 | 1.42 | -11.99 | 233.29 | -53.18 | 109.54 | 0.8330 | -321.0 | -211.8 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -12.19 | 231.65 | -54.82 | 109.21 | 0.8481 | -356.0 | -328.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
