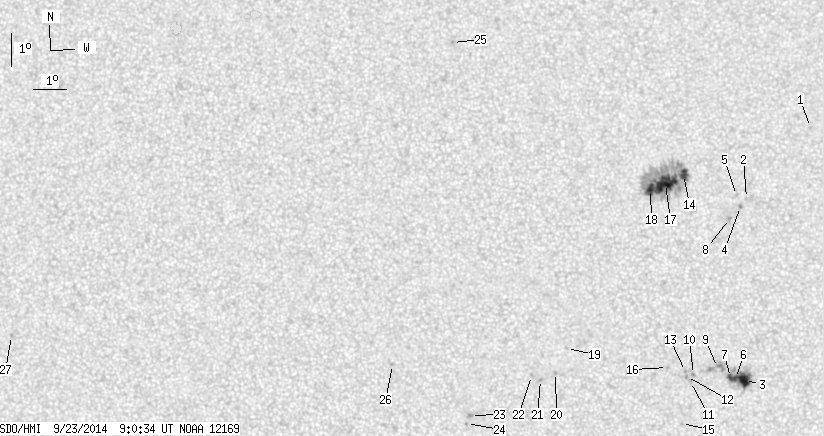

SDO HMI 2014-09-23 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.09 | 193.44 | 25.45 | 96.40 | 9.16 | 289.84 | 4.48 | 288.04 | 0.1053 | -700.1 | -471.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.68 | 294.27 | 8.90 | 303.55 | 0.1819 | -880.0 | -696.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.57 | 292.22 | 6.85 | 298.19 | 0.1337 | -922.0 | -648.8 | |
| 9.21 | 32.49 | 4.59 | 16.21 | 5.09 | 292.06 | 6.69 | 254.27 | 0.1212 | -1234.0 | -820.6 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 10.33 | 292.03 | 6.66 | 297.20 | 0.1289 | -1063.0 | -877.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 10.66 | 291.91 | 6.54 | 299.91 | 0.1298 | -762.0 | -538.0 | |
| 2.21 | -3.00 | 1.10 | -3.00 | 5.16 | 291.79 | 6.42 | 254.14 | 0.1163 | -1295.9 | 999999 | |
| 1.42 | -3.00 | 0.71 | -3.00 | 5.19 | 291.64 | 6.27 | 254.03 | 0.1136 | -1127.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 9.97 | 291.68 | 6.31 | 295.80 | 0.1209 | -1018.0 | -853.2 | |
| 0.00 | 10.09 | 0.00 | 5.03 | 5.50 | 291.24 | 5.88 | 255.77 | 0.1056 | -883.0 | -857.3 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 5.30 | 290.51 | 5.15 | 251.72 | 0.0945 | -1011.0 | -792.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 5.09 | 290.42 | 5.05 | 249.28 | 0.0942 | -782.0 | -678.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.24 | 290.30 | 4.93 | 250.36 | 0.0914 | -1052.0 | -826.6 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.39 | 290.27 | 4.90 | 251.83 | 0.0900 | -976.0 | -719.8 | |
| 6.02 | 122.53 | 3.00 | 61.03 | 11.32 | 290.29 | 4.93 | 311.88 | 0.1136 | -1070.2 | -500.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 3.82 | 290.14 | 4.77 | 236.36 | 0.1001 | 753.0 | 525.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.52 | 289.73 | 4.36 | 251.16 | 0.0803 | 889.0 | 674.0 | |
| 25.32 | -14.00 | 12.61 | -14.00 | 11.05 | 289.73 | 4.37 | 313.44 | 0.1034 | -1270.8 | 999999 | |
| 6.91 | -14.00 | 3.44 | -14.00 | 10.88 | 289.27 | 3.90 | 315.32 | 0.0955 | -1163.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.11 | 286.67 | 1.31 | 235.15 | 0.0278 | 838.0 | 689.8 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 5.39 | 286.34 | 0.97 | 210.75 | 0.0332 | 941.0 | 718.9 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 5.18 | 285.88 | 0.52 | 195.69 | 0.0334 | 1002.0 | 859.6 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 5.30 | 285.61 | 0.25 | 188.14 | 0.0304 | 774.0 | 692.8 | |
| 0.00 | 2.66 | 0.00 | 1.32 | 4.10 | 283.77 | -1.60 | 151.38 | 0.0582 | 1044.0 | 867.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.85 | 283.65 | -1.72 | 151.53 | 0.0630 | 865.0 | 682.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.34 | 283.17 | -2.20 | 14.31 | 0.1503 | -902.0 | -797.9 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 5.62 | 281.41 | -3.96 | 109.31 | 0.0731 | 977.0 | 614.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 6.26 | 269.68 | -15.68 | 91.83 | 0.2700 | 777.0 | 649.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
