SDO HMI 2014-09-23 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.75 | 19.38 | 1.40 | 9.85 | 15.94 | 275.55 | -9.27 | 44.44 | 0.2219 | 257.1 | -47.8 | |
|
previous
or next observation for the same group /

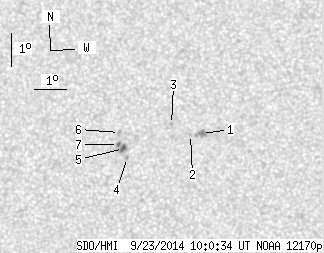

back to the solar disc SDO HMI 2014-09-23 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.28 | 0.00 | 3.18 | 16.14 | 276.99 | -7.83 | 39.34 | 0.2075 | -920.0 | -837.5 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 16.10 | 276.64 | -8.18 | 40.65 | 0.2108 | -605.0 | -455.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 16.40 | 276.03 | -8.79 | 41.73 | 0.2214 | -756.0 | -562.4 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 15.37 | 274.68 | -10.14 | 49.08 | 0.2257 | 944.0 | 733.8 | |
| 2.04 | 6.90 | 1.04 | 3.52 | 15.64 | 274.54 | -10.28 | 48.53 | 0.2304 | 1148.7 | 821.1 | |
| 0.00 | 2.04 | 0.00 | 1.04 | 16.12 | 274.39 | -10.43 | 47.34 | 0.2376 | 813.0 | 669.3 | |
| 0.71 | -5.00 | 0.36 | -5.00 | 15.76 | 274.37 | -10.45 | 48.57 | 0.2338 | 905.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
