SDO HMI 2014-09-23 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 254.69 | 1274.17 | 191.53 | 962.80 | -11.00 | 239.17 | -45.65 | 111.38 | 0.7539 | 27.2 | -21.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 10:00:34 UT

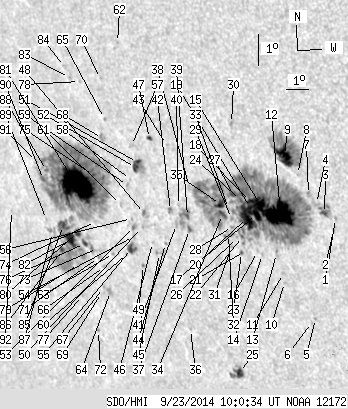

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.83 | -10.85 | 246.20 | -38.62 | 114.58 | 0.6764 | -540.0 | -442.3 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -11.24 | 246.06 | -38.76 | 115.03 | 0.6800 | 456.0 | 343.2 | |
| 1.77 | 11.33 | 1.19 | 7.63 | -10.72 | 245.78 | -39.03 | 114.18 | 0.6806 | 668.5 | 304.0 | |
| 0.00 | 2.66 | 0.00 | 1.79 | -10.43 | 245.51 | -39.31 | 113.63 | 0.6823 | 32.0 | 189.1 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -14.14 | 244.79 | -40.03 | 118.10 | 0.7093 | 510.0 | 497.4 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -14.28 | 244.60 | -40.22 | 118.17 | 0.7122 | 376.0 | 328.1 | |
| 0.00 | 2.66 | 0.00 | 1.80 | -10.17 | 245.24 | -39.58 | 113.12 | 0.6843 | 770.0 | 637.3 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -9.57 | 244.89 | -39.93 | 112.12 | 0.6856 | 657.0 | 577.6 | |
| 19.92 | 70.73 | 13.56 | 48.04 | -9.01 | 244.44 | -40.38 | 111.13 | 0.6883 | 928.0 | 466.6 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -13.07 | 243.75 | -41.07 | 116.14 | 0.7152 | 540.0 | 470.7 | |
| 0.00 | 1.59 | 0.00 | 1.12 | -12.78 | 243.77 | -41.05 | 115.78 | 0.7136 | 5.0 | 82.3 | |
| 47.71 | 532.36 | 33.08 | 374.45 | -10.87 | 244.00 | -40.82 | 113.40 | 0.7018 | 1044.8 | 268.9 | |
| 0.00 | 2.57 | 0.00 | 1.81 | -12.16 | 243.60 | -41.22 | 114.89 | 0.7124 | -156.0 | -52.8 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -12.24 | 243.01 | -41.81 | 114.68 | 0.7193 | 483.0 | 452.7 | |
| 15.05 | -12.00 | 10.54 | -12.00 | -10.65 | 243.22 | -41.60 | 112.71 | 0.7097 | 864.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -12.16 | 242.82 | -42.00 | 114.48 | 0.7211 | 436.0 | 295.2 | |
| 8.67 | -12.00 | 6.12 | -12.00 | -10.98 | 243.00 | -41.82 | 113.03 | 0.7137 | 752.9 | 999999 | |
| 3.98 | -12.00 | 2.81 | -12.00 | -10.59 | 242.82 | -42.00 | 112.43 | 0.7139 | 640.2 | 999999 | |
| 3.81 | -12.00 | 2.69 | -12.00 | -10.78 | 242.78 | -42.04 | 112.66 | 0.7151 | 687.0 | 999999 | |
| 19.92 | -12.00 | 14.14 | -12.00 | -11.11 | 242.60 | -42.22 | 113.00 | 0.7187 | 632.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -12.21 | 242.26 | -42.56 | 114.25 | 0.7273 | 172.0 | 189.6 | |
| 0.62 | -12.00 | 0.44 | -12.00 | -11.73 | 242.27 | -42.55 | 113.65 | 0.7251 | 513.4 | 999999 | |
| 0.62 | 1.50 | 0.45 | 1.09 | -12.25 | 242.13 | -42.69 | 114.24 | 0.7290 | 440.1 | 368.3 | |
| 0.97 | -12.00 | 0.69 | -12.00 | -10.59 | 242.40 | -42.42 | 112.23 | 0.7186 | 325.5 | 999999 | |
| 5.05 | 12.30 | 3.82 | 9.33 | -16.19 | 241.09 | -43.73 | 118.57 | 0.7581 | 681.3 | 387.4 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -11.78 | 242.05 | -42.76 | 113.60 | 0.7277 | 199.0 | 189.6 | |
| 3.45 | -12.00 | 2.46 | -12.00 | -10.42 | 242.14 | -42.68 | 111.88 | 0.7208 | -133.7 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.34 | -11.45 | 241.91 | -42.91 | 113.10 | 0.7278 | 339.0 | 366.4 | |
| 0.00 | 1.42 | 0.00 | 1.02 | -11.20 | 241.92 | -42.90 | 112.78 | 0.7266 | 389.0 | 322.2 | |
| 0.00 | 1.77 | 0.00 | 1.24 | -8.18 | 242.40 | -42.42 | 109.04 | 0.7087 | 649.0 | 624.7 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -12.10 | 241.74 | -43.08 | 113.84 | 0.7325 | 452.0 | 364.4 | |
| 0.00 | 5.58 | 0.00 | 4.04 | -11.72 | 241.69 | -43.13 | 113.34 | 0.7314 | 354.0 | 354.8 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -10.89 | 241.85 | -42.97 | 112.35 | 0.7261 | 518.0 | 486.4 | |
| 3.10 | -12.00 | 2.24 | -12.00 | -11.10 | 241.55 | -43.27 | 112.48 | 0.7302 | 593.6 | 999999 | |
| 5.67 | -12.00 | 4.09 | -12.00 | -10.79 | 241.53 | -43.29 | 112.07 | 0.7292 | 549.4 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -14.96 | 239.27 | -45.54 | 116.17 | 0.7706 | -643.0 | -538.3 | |
| 1.15 | 3.01 | 0.86 | 2.24 | -11.71 | 240.02 | -44.80 | 112.53 | 0.7493 | 455.6 | 305.1 | |
| 0.00 | 2.30 | 0.00 | 1.69 | -10.36 | 240.28 | -44.54 | 110.95 | 0.7411 | -352.0 | -388.5 | |
| 1.33 | 15.05 | 0.99 | 11.22 | -11.30 | 240.02 | -44.80 | 112.01 | 0.7477 | 602.2 | 231.4 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -10.98 | 239.69 | -45.13 | 111.47 | 0.7499 | 161.0 | 119.5 | |
| 0.00 | 2.57 | 0.00 | 1.93 | -11.60 | 239.47 | -45.35 | 112.15 | 0.7546 | -162.0 | -105.3 | |
| 0.00 | 2.83 | 0.00 | 2.13 | -11.17 | 239.30 | -45.52 | 111.54 | 0.7548 | 365.0 | 258.4 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -9.09 | 239.51 | -45.31 | 108.99 | 0.7447 | -723.0 | -656.4 | |
| 0.00 | 1.24 | 0.00 | 0.95 | -12.26 | 238.84 | -45.98 | 112.68 | 0.7638 | 427.0 | 350.2 | |
| 0.00 | 3.54 | 0.00 | 2.73 | -12.60 | 238.49 | -46.33 | 112.95 | 0.7688 | 118.0 | -75.8 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -12.28 | 238.26 | -46.56 | 112.44 | 0.7699 | -79.0 | -77.4 | |
| 1.24 | 2.48 | 0.93 | 1.86 | -8.96 | 238.79 | -46.03 | 108.53 | 0.7522 | -562.9 | -480.4 | |
| 0.00 | 4.16 | 0.00 | 3.20 | -11.38 | 238.10 | -46.72 | 111.27 | 0.7681 | -782.0 | -563.5 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -13.06 | 237.66 | -47.16 | 113.13 | 0.7790 | -601.0 | -549.7 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -11.84 | 237.86 | -46.96 | 111.74 | 0.7723 | -452.0 | -543.8 | |
| 2.39 | 14.87 | 1.82 | 11.33 | -9.77 | 238.11 | -46.71 | 109.28 | 0.7623 | -829.7 | -515.5 | |
| 3.72 | -51.00 | 2.84 | -51.00 | -9.94 | 237.99 | -46.83 | 109.44 | 0.7641 | -782.5 | 999999 | |
| 0.00 | 2.92 | 0.00 | 2.28 | -11.84 | 237.54 | -47.27 | 111.60 | 0.7756 | -469.0 | -542.9 | |
| 0.00 | 1.77 | 0.00 | 1.39 | -12.16 | 237.42 | -47.40 | 111.95 | 0.7780 | -646.0 | -490.9 | |
| 4.60 | 7.70 | 3.64 | 6.08 | -12.56 | 237.23 | -47.59 | 112.35 | 0.7814 | -779.8 | -651.6 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -11.59 | 237.46 | -47.36 | 111.27 | 0.7755 | -651.0 | -508.3 | |
| 0.00 | 2.12 | 0.00 | 1.62 | -9.26 | 237.93 | -46.88 | 108.57 | 0.7623 | -615.0 | -540.1 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -10.35 | 237.68 | -47.13 | 109.82 | 0.7687 | -566.0 | -487.1 | |
| 0.00 | 1.33 | 0.00 | 1.03 | -10.55 | 237.51 | -47.31 | 110.00 | 0.7713 | -777.0 | -635.0 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -12.74 | 237.00 | -47.81 | 112.47 | 0.7843 | -473.0 | -564.2 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -11.19 | 237.05 | -47.77 | 110.60 | 0.7783 | -606.0 | -541.3 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -6.08 | 237.78 | -47.04 | 104.48 | 0.7539 | -592.0 | -486.1 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -12.80 | 236.34 | -48.48 | 112.26 | 0.7912 | -511.0 | -498.1 | |
| 0.00 | 4.25 | 0.00 | 3.50 | -14.06 | 235.85 | -48.97 | 113.54 | 0.8004 | -370.0 | -268.1 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -8.52 | 236.84 | -47.98 | 107.23 | 0.7715 | 465.0 | 394.1 | |
| 0.00 | 1.33 | 0.00 | 1.09 | -13.27 | 235.79 | -49.03 | 112.59 | 0.7982 | -647.0 | -555.3 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -13.96 | 235.54 | -49.27 | 113.30 | 0.8030 | -679.0 | -568.2 | |
| 0.00 | 5.31 | 0.00 | 4.15 | -9.16 | 236.64 | -48.18 | 107.95 | 0.7757 | 6.0 | -110.3 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -14.14 | 235.40 | -49.42 | 113.44 | 0.8050 | -605.0 | -619.5 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -7.28 | 236.86 | -47.96 | 105.68 | 0.7675 | -598.0 | -437.7 | |
| 0.00 | 1.33 | 0.00 | 1.09 | -13.00 | 235.58 | -49.24 | 112.19 | 0.7993 | -662.0 | -489.7 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -15.41 | 234.85 | -49.97 | 114.69 | 0.8146 | 363.0 | 311.4 | |
| 0.00 | 0.89 | 0.00 | 0.72 | -12.71 | 235.61 | -49.21 | 111.86 | 0.7980 | -406.0 | -385.6 | |
| 0.00 | 0.89 | 0.00 | 0.72 | -11.85 | 235.73 | -49.08 | 110.87 | 0.7938 | -458.0 | -426.6 | |
| 0.97 | 385.51 | 0.78 | 314.02 | -10.38 | 235.98 | -48.84 | 109.20 | 0.7864 | -995.6 | -315.4 | |
| 2.04 | 112.07 | 1.68 | 94.45 | -12.61 | 235.01 | -49.81 | 111.50 | 0.8034 | -630.7 | -333.6 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -14.33 | 234.42 | -50.40 | 113.26 | 0.8148 | 176.0 | 85.3 | |
| 0.00 | 1.15 | 0.00 | 0.90 | -7.46 | 235.86 | -48.96 | 105.57 | 0.7786 | -487.0 | -359.8 | |
| 0.00 | 5.13 | 0.00 | 4.32 | -13.33 | 234.52 | -50.29 | 112.14 | 0.8104 | -288.0 | -287.5 | |
| 3.28 | -76.00 | 2.72 | -76.00 | -12.29 | 234.76 | -50.06 | 111.02 | 0.8047 | -786.4 | 999999 | |
| 71.08 | -75.00 | 57.96 | -75.00 | -10.74 | 235.10 | -49.72 | 109.31 | 0.7965 | -815.9 | 999999 | |
| 10.71 | -76.00 | 8.99 | -76.00 | -12.55 | 234.35 | -50.46 | 111.17 | 0.8095 | -692.1 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.19 | -7.38 | 235.41 | -49.41 | 105.32 | 0.7831 | -565.0 | -494.2 | |
| 0.00 | 1.77 | 0.00 | 1.41 | -7.06 | 235.22 | -49.60 | 104.86 | 0.7841 | -529.0 | -481.2 | |
| 7.26 | -76.00 | 6.11 | -76.00 | -12.13 | 234.13 | -50.69 | 110.59 | 0.8103 | -468.6 | 999999 | |
| 1.95 | -76.00 | 1.66 | -76.00 | -12.91 | 233.86 | -50.96 | 111.41 | 0.8153 | -592.5 | 999999 | |
| 0.00 | 6.99 | 0.00 | 5.97 | -12.41 | 233.51 | -51.31 | 110.69 | 0.8170 | -120.0 | -102.1 | |
| 0.71 | -75.00 | 0.59 | -75.00 | -10.44 | 233.72 | -51.10 | 108.44 | 0.8090 | -319.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -12.02 | 233.32 | -51.50 | 110.16 | 0.8176 | -252.0 | -207.2 | |
| 1.95 | -75.00 | 1.64 | -75.00 | -10.74 | 233.50 | -51.32 | 108.72 | 0.8120 | 390.8 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.72 | -10.20 | 233.28 | -51.54 | 108.00 | 0.8125 | 198.0 | 109.0 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -11.91 | 231.58 | -53.24 | 109.41 | 0.8333 | -303.0 | -285.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
