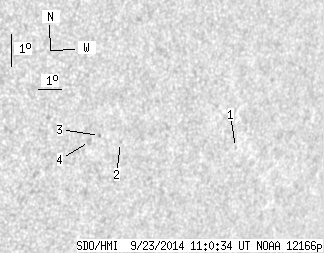

SDO HMI 2014-09-23 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.96 | 0.00 | 3.43 | -7.67 | 326.27 | 42.00 | 251.45 | 0.7015 | -330.8 | -489.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -8.39 | 332.06 | 47.79 | 252.86 | 0.7690 | 346.0 | 411.3 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -7.78 | 326.98 | 42.71 | 251.63 | 0.7105 | -434.0 | -405.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -7.49 | 326.08 | 41.81 | 251.63 | 0.6988 | -611.0 | -548.9 | |
| 0.00 | 3.27 | 0.00 | 2.25 | -7.64 | 325.69 | 41.42 | 251.24 | 0.6948 | -624.0 | -569.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
