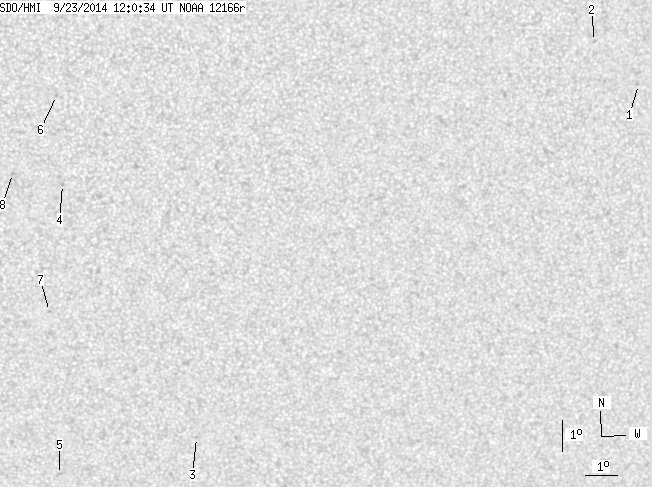

SDO HMI 2014-09-23 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.59 | 0.00 | 4.67 | -15.96 | 285.20 | 1.48 | 184.04 | 0.4071 | 747.1 | 608.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.32 | 300.27 | 16.54 | 223.73 | 0.4070 | 601.0 | 538.8 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -8.92 | 298.80 | 15.08 | 223.57 | 0.3746 | 724.0 | 629.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -21.56 | 286.67 | 2.95 | 185.72 | 0.4824 | 715.0 | 595.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.17 | 282.41 | -1.31 | 176.29 | 0.3472 | 845.0 | 670.4 | |
| 0.00 | 2.04 | 0.00 | 1.16 | -22.82 | 282.22 | -1.50 | 177.22 | 0.5000 | 711.0 | 522.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.35 | 282.24 | -1.48 | 175.13 | 0.3006 | 859.0 | 715.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.31 | 281.97 | -1.76 | 175.94 | 0.4145 | 696.0 | 598.0 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -12.83 | 280.87 | -2.86 | 171.85 | 0.3441 | 826.0 | 654.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
