SDO HMI 2014-09-23 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 246.44 | 1259.63 | 183.04 | 933.45 | -11.03 | 239.10 | -44.62 | 111.88 | 0.7431 | 2.7 | -14.3 | |
|
previous
or next observation for the same group /

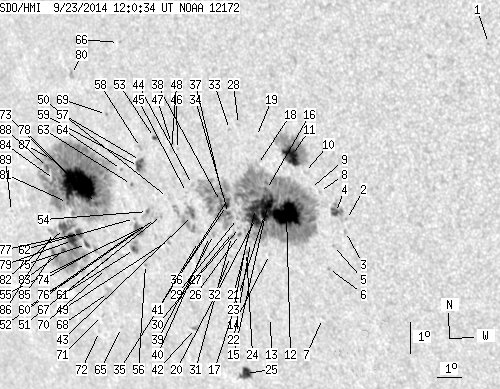

back to the solar disc SDO HMI 2014-09-23 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.53 | -5.00 | 252.18 | -31.54 | 110.04 | 0.5569 | 525.0 | 461.0 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -10.88 | 246.35 | -37.37 | 115.36 | 0.6619 | -551.0 | -429.2 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -11.27 | 246.26 | -37.47 | 115.84 | 0.6652 | 246.0 | 285.8 | |
| 3.98 | 12.39 | 2.64 | 8.19 | -10.69 | 245.95 | -37.77 | 114.86 | 0.6656 | 666.6 | 58.1 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -11.75 | 245.71 | -38.01 | 116.17 | 0.6741 | -449.0 | -393.6 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -12.50 | 245.38 | -38.34 | 116.98 | 0.6819 | -666.0 | -465.7 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -14.14 | 244.83 | -38.89 | 118.79 | 0.6970 | 555.0 | 477.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -10.07 | 245.42 | -38.30 | 113.70 | 0.6687 | 555.0 | 447.4 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -10.00 | 245.08 | -38.64 | 113.41 | 0.6724 | 274.0 | 259.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -9.52 | 244.91 | -38.81 | 112.64 | 0.6721 | 696.0 | 598.3 | |
| 19.56 | 66.19 | 13.09 | 44.23 | -9.02 | 244.47 | -39.25 | 111.72 | 0.6750 | 903.2 | 459.2 | |
| 43.80 | 423.00 | 29.87 | 290.06 | -10.91 | 243.99 | -39.73 | 114.04 | 0.6896 | 994.0 | 373.3 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -14.29 | 242.69 | -41.03 | 117.70 | 0.7209 | 375.0 | 306.4 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -12.24 | 243.07 | -40.65 | 115.30 | 0.7065 | 458.0 | 333.2 | |
| 14.16 | -12.00 | 9.75 | -12.00 | -10.68 | 243.26 | -40.46 | 113.34 | 0.6968 | 833.5 | 999999 | |
| 1.42 | -12.00 | 0.97 | -12.00 | -10.18 | 243.31 | -40.42 | 112.69 | 0.6940 | 522.2 | 999999 | |
| 6.90 | -12.00 | 4.77 | -12.00 | -10.98 | 243.09 | -40.63 | 113.65 | 0.7002 | 745.2 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.33 | -9.41 | 243.06 | -40.67 | 111.53 | 0.6934 | 247.0 | 220.2 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -8.53 | 243.14 | -40.58 | 110.37 | 0.6886 | 334.0 | 252.7 | |
| 9.56 | -12.00 | 6.66 | -12.00 | -11.14 | 242.70 | -41.02 | 113.65 | 0.7054 | 635.9 | 999999 | |
| 6.19 | -12.00 | 4.31 | -12.00 | -10.82 | 242.76 | -40.97 | 113.26 | 0.7033 | 613.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -11.92 | 242.35 | -41.37 | 114.50 | 0.7129 | 460.0 | 369.7 | |
| 0.62 | -12.00 | 0.44 | -12.00 | -11.74 | 242.26 | -41.46 | 114.21 | 0.7131 | 501.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.00 | -12.26 | 242.12 | -41.60 | 114.81 | 0.7171 | 465.0 | 427.4 | |
| 7.79 | 10.88 | 5.77 | 8.07 | -16.22 | 241.16 | -42.56 | 119.24 | 0.7466 | 608.0 | 385.1 | |
| 0.62 | 1.68 | 0.44 | 1.19 | -11.71 | 241.94 | -41.78 | 114.00 | 0.7165 | 452.0 | 326.4 | |
| 0.00 | 2.12 | 0.00 | 1.50 | -11.48 | 241.98 | -41.74 | 113.73 | 0.7150 | 437.0 | 364.6 | |
| 0.00 | 1.77 | 0.00 | 1.22 | -8.22 | 242.45 | -41.27 | 109.61 | 0.6954 | 645.0 | 507.6 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -11.20 | 241.95 | -41.77 | 113.34 | 0.7141 | 407.0 | 369.1 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -11.67 | 241.66 | -42.06 | 113.80 | 0.7194 | 361.0 | 321.7 | |
| 0.35 | 1.59 | 0.25 | 1.13 | -11.80 | 241.59 | -42.13 | 113.94 | 0.7208 | 484.5 | 409.7 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -12.45 | 241.42 | -42.30 | 114.68 | 0.7256 | 396.0 | 324.5 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -8.40 | 242.06 | -41.66 | 109.68 | 0.7007 | 548.0 | 429.9 | |
| 1.15 | 96.37 | 0.82 | 68.59 | -11.07 | 241.60 | -42.12 | 113.00 | 0.7174 | 624.7 | -58.1 | |
| 2.48 | -34.00 | 1.75 | -34.00 | -10.63 | 241.64 | -42.08 | 112.44 | 0.7150 | 587.0 | 999999 | |
| 2.39 | -34.00 | 1.69 | -34.00 | -10.82 | 241.56 | -42.16 | 112.66 | 0.7167 | 570.4 | 999999 | |
| 1.06 | -34.00 | 0.75 | -34.00 | -10.49 | 241.46 | -42.27 | 112.16 | 0.7164 | 462.2 | 999999 | |
| 1.24 | -34.00 | 0.88 | -34.00 | -10.72 | 241.33 | -42.39 | 112.40 | 0.7188 | 268.7 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.79 | -11.80 | 240.84 | -42.88 | 113.56 | 0.7290 | 560.0 | 393.6 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -11.88 | 240.65 | -43.07 | 113.57 | 0.7314 | 391.0 | 341.5 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -12.08 | 240.15 | -43.58 | 113.57 | 0.7378 | 236.0 | 270.5 | |
| 0.00 | 3.10 | 0.00 | 2.35 | -14.92 | 239.35 | -44.38 | 116.70 | 0.7587 | -670.0 | -612.4 | |
| 0.97 | 28.49 | 0.71 | 20.86 | -11.27 | 240.05 | -43.67 | 112.50 | 0.7353 | 629.5 | 170.5 | |
| 0.00 | 1.86 | 0.00 | 1.34 | -10.28 | 240.24 | -43.49 | 111.31 | 0.7292 | -465.0 | -393.0 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -10.55 | 239.93 | -43.79 | 111.53 | 0.7337 | 153.0 | 108.1 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -9.22 | 239.78 | -43.95 | 109.74 | 0.7301 | -666.0 | -596.7 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -9.05 | 239.55 | -44.17 | 109.42 | 0.7320 | -681.0 | -566.3 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -9.27 | 239.51 | -44.21 | 109.69 | 0.7332 | -173.0 | -310.4 | |
| 0.00 | 3.98 | 0.00 | 2.98 | -12.13 | 238.89 | -44.84 | 113.03 | 0.7514 | 296.0 | 362.2 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -10.79 | 239.07 | -44.65 | 111.43 | 0.7439 | -575.0 | -545.3 | |
| 0.00 | 1.50 | 0.00 | 1.12 | -11.39 | 238.69 | -45.03 | 112.02 | 0.7504 | 183.0 | 68.6 | |
| 0.00 | 1.50 | 0.00 | 1.13 | -11.51 | 238.41 | -45.32 | 112.04 | 0.7539 | -204.0 | -245.6 | |
| 1.24 | 2.39 | 0.91 | 1.75 | -8.93 | 238.84 | -44.88 | 108.96 | 0.7394 | -552.9 | -430.3 | |
| 0.62 | 4.96 | 0.47 | 3.75 | -11.31 | 238.10 | -45.63 | 111.66 | 0.7565 | -607.7 | -565.6 | |
| 0.00 | 1.33 | 0.00 | 1.01 | -11.73 | 238.01 | -45.72 | 112.14 | 0.7590 | -320.0 | -330.9 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -13.03 | 237.62 | -46.10 | 113.57 | 0.7682 | -668.0 | -596.3 | |
| 1.59 | 11.77 | 1.19 | 8.80 | -9.71 | 238.10 | -45.63 | 109.65 | 0.7504 | -795.7 | -609.3 | |
| 0.00 | 2.30 | 0.00 | 1.71 | -9.30 | 238.17 | -45.55 | 109.15 | 0.7481 | -629.0 | -544.7 | |
| 3.98 | -57.00 | 2.98 | -57.00 | -9.91 | 237.97 | -45.75 | 109.85 | 0.7525 | -765.0 | 999999 | |
| 4.25 | 9.11 | 3.25 | 6.98 | -11.93 | 237.56 | -46.16 | 112.19 | 0.7644 | -639.6 | -582.5 | |
| 2.65 | 8.32 | 2.05 | 6.43 | -12.59 | 237.23 | -46.49 | 112.85 | 0.7704 | -802.3 | -617.1 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -11.59 | 237.46 | -46.26 | 111.73 | 0.7642 | -585.0 | -544.7 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -10.51 | 237.55 | -46.17 | 110.43 | 0.7592 | -690.0 | -606.4 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -10.07 | 237.19 | -46.53 | 109.73 | 0.7614 | -650.0 | -573.1 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -15.20 | 235.93 | -47.79 | 115.40 | 0.7935 | 453.0 | 356.7 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -6.09 | 237.66 | -46.06 | 104.82 | 0.7430 | -581.0 | -515.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -12.77 | 236.33 | -47.40 | 112.68 | 0.7803 | -564.0 | -511.6 | |
| 0.00 | 6.37 | 0.00 | 5.15 | -14.11 | 235.64 | -48.08 | 113.98 | 0.7920 | -420.0 | -460.8 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -8.39 | 236.82 | -46.91 | 107.47 | 0.7596 | 468.0 | 332.4 | |
| 0.00 | 1.68 | 0.00 | 1.35 | -13.33 | 235.77 | -47.96 | 113.11 | 0.7879 | -620.0 | -458.2 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -14.89 | 235.13 | -48.59 | 114.68 | 0.7999 | 362.0 | 333.7 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -15.44 | 234.82 | -48.90 | 115.18 | 0.8049 | 312.0 | 234.4 | |
| 1.59 | 497.60 | 1.26 | 399.45 | -11.27 | 235.81 | -47.91 | 110.64 | 0.7800 | -719.2 | -307.7 | |
| 0.00 | 3.98 | 0.00 | 3.20 | -12.76 | 235.40 | -48.32 | 112.27 | 0.7894 | -565.0 | -511.2 | |
| 1.95 | -73.00 | 1.57 | -73.00 | -12.64 | 235.01 | -48.71 | 111.97 | 0.7928 | -581.5 | 999999 | |
| 0.00 | 3.19 | 0.00 | 2.62 | -13.54 | 234.58 | -49.14 | 112.85 | 0.8002 | -146.0 | -190.1 | |
| 4.16 | -73.00 | 3.37 | -73.00 | -12.31 | 234.77 | -48.95 | 111.48 | 0.7941 | -772.7 | 999999 | |
| 72.30 | -73.00 | 57.57 | -73.00 | -10.74 | 235.09 | -48.63 | 109.71 | 0.7854 | -807.6 | 999999 | |
| 9.91 | -73.00 | 8.12 | -73.00 | -12.57 | 234.37 | -49.35 | 111.63 | 0.7989 | -715.5 | 999999 | |
| 0.00 | 3.89 | 0.00 | 3.02 | -7.28 | 235.40 | -48.32 | 105.56 | 0.7713 | -586.0 | -510.7 | |
| 1.06 | -73.00 | 0.86 | -73.00 | -11.37 | 234.44 | -49.29 | 110.21 | 0.7941 | -273.1 | 999999 | |
| 8.41 | -73.00 | 6.91 | -73.00 | -12.22 | 234.08 | -49.64 | 111.10 | 0.8005 | -442.8 | 999999 | |
| 1.59 | -73.00 | 1.32 | -73.00 | -12.94 | 233.84 | -49.88 | 111.85 | 0.8052 | -564.5 | 999999 | |
| 0.88 | -73.00 | 0.72 | -73.00 | -10.69 | 233.98 | -49.75 | 109.22 | 0.7965 | -119.3 | 999999 | |
| 1.15 | -73.00 | 0.97 | -73.00 | -13.09 | 233.31 | -50.41 | 111.82 | 0.8107 | -205.4 | 999999 | |
| 0.00 | 6.99 | 0.00 | 5.83 | -12.40 | 233.50 | -50.22 | 111.09 | 0.8066 | -270.0 | -135.2 | |
| 3.10 | -73.00 | 2.51 | -73.00 | -10.06 | 233.97 | -49.75 | 108.47 | 0.7946 | 208.5 | 999999 | |
| 1.77 | -73.00 | 1.45 | -73.00 | -10.34 | 233.72 | -50.00 | 108.71 | 0.7979 | -312.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.92 | -11.93 | 231.56 | -52.16 | 109.81 | 0.8235 | -394.0 | -341.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
