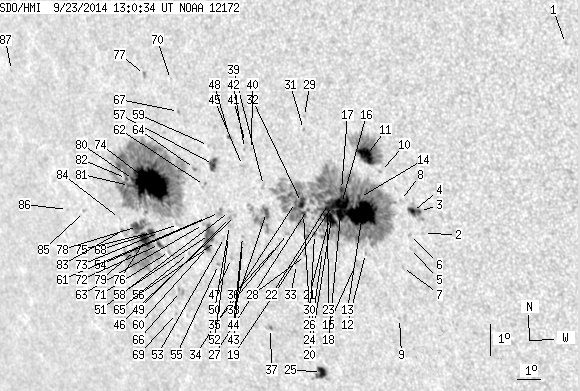

SDO HMI 2014-09-23 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 249.79 | 1288.56 | 182.11 | 944.47 | -10.99 | 239.29 | -43.88 | 112.18 | 0.7349 | 15.9 | -25.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.94 | -5.03 | 252.20 | -30.98 | 110.44 | 0.5493 | 423.0 | 245.9 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -11.34 | 246.35 | -36.82 | 116.34 | 0.6580 | -45.0 | 59.9 | |
| 0.71 | 12.39 | 0.46 | 8.12 | -10.65 | 246.30 | -36.87 | 115.35 | 0.6548 | -400.4 | 183.9 | |
| 3.36 | -3.00 | 2.21 | -3.00 | -10.67 | 246.03 | -37.14 | 115.21 | 0.6582 | 659.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -11.86 | 245.77 | -37.40 | 116.69 | 0.6677 | -448.0 | -353.4 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -11.41 | 245.80 | -37.37 | 116.10 | 0.6648 | -641.0 | -447.0 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -12.49 | 245.35 | -37.82 | 117.28 | 0.6760 | -635.0 | -488.5 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -10.36 | 245.61 | -37.56 | 114.52 | 0.6614 | 624.0 | 453.5 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -14.16 | 244.92 | -38.25 | 119.21 | 0.6901 | 535.0 | 497.7 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -9.50 | 244.95 | -38.22 | 112.95 | 0.6649 | 386.0 | 417.2 | |
| 17.34 | 64.68 | 11.52 | 42.90 | -9.04 | 244.47 | -38.70 | 112.03 | 0.6685 | 936.6 | 489.2 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -12.16 | 243.95 | -39.23 | 115.99 | 0.6901 | 571.0 | 422.3 | |
| 48.66 | 558.38 | 32.90 | 382.30 | -10.89 | 244.04 | -39.13 | 114.35 | 0.6825 | 1008.0 | 273.6 | |
| 1.06 | -13.00 | 0.72 | -13.00 | -10.39 | 244.00 | -39.17 | 113.64 | 0.6805 | 646.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -12.55 | 243.48 | -39.70 | 116.23 | 0.6974 | -484.0 | -478.3 | |
| 17.34 | -13.00 | 11.84 | -13.00 | -10.64 | 243.25 | -39.93 | 113.57 | 0.6905 | 804.1 | 999999 | |
| 1.68 | -13.00 | 1.14 | -13.00 | -10.19 | 243.32 | -39.86 | 113.00 | 0.6876 | 589.6 | 999999 | |
| 7.08 | -13.00 | 4.85 | -13.00 | -10.99 | 243.15 | -40.02 | 113.99 | 0.6933 | 741.0 | 999999 | |
| 3.45 | -13.00 | 2.37 | -13.00 | -10.73 | 242.87 | -40.30 | 113.49 | 0.6953 | 651.5 | 999999 | |
| 2.74 | -13.00 | 1.89 | -13.00 | -10.92 | 242.84 | -40.33 | 113.73 | 0.6965 | 658.5 | 999999 | |
| 11.59 | -13.00 | 8.01 | -13.00 | -11.16 | 242.68 | -40.49 | 113.95 | 0.6995 | 627.8 | 999999 | |
| 2.39 | -13.00 | 1.65 | -13.00 | -10.68 | 242.72 | -40.45 | 113.34 | 0.6968 | 488.7 | 999999 | |
| 2.57 | -13.00 | 1.77 | -13.00 | -10.84 | 242.65 | -40.52 | 113.52 | 0.6983 | 589.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.24 | 242.20 | -40.98 | 115.11 | 0.7101 | 519.0 | 458.0 | |
| 7.61 | 13.36 | 5.58 | 9.81 | -16.20 | 241.26 | -41.92 | 119.57 | 0.7399 | 617.8 | 360.6 | |
| 0.62 | 1.42 | 0.43 | 0.99 | -11.72 | 241.97 | -41.20 | 114.32 | 0.7101 | 464.4 | 408.8 | |
| 0.35 | -13.00 | 0.25 | -13.00 | -10.94 | 241.82 | -41.35 | 113.22 | 0.7082 | 552.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.88 | -12.43 | 241.46 | -41.71 | 114.96 | 0.7191 | 434.0 | 353.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -8.01 | 242.14 | -41.04 | 109.44 | 0.6918 | 583.0 | 526.4 | |
| 2.57 | -13.00 | 1.80 | -13.00 | -11.12 | 241.63 | -41.55 | 113.35 | 0.7112 | 523.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -8.42 | 242.04 | -41.13 | 109.95 | 0.6946 | 546.0 | 434.2 | |
| 5.31 | -13.00 | 3.72 | -13.00 | -10.74 | 241.61 | -41.56 | 112.85 | 0.7096 | 570.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -12.75 | 241.02 | -42.15 | 115.14 | 0.7254 | 335.0 | 302.2 | |
| 0.80 | -13.00 | 0.56 | -13.00 | -10.76 | 241.36 | -41.81 | 112.75 | 0.7126 | 337.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -11.78 | 240.84 | -42.33 | 113.81 | 0.7229 | 603.0 | 452.8 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -12.20 | 240.34 | -42.84 | 114.10 | 0.7303 | 530.0 | 431.7 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -14.93 | 239.41 | -43.77 | 117.02 | 0.7526 | -645.0 | -568.6 | |
| 3.01 | 26.19 | 2.17 | 18.99 | -11.18 | 240.07 | -43.10 | 112.66 | 0.7287 | 636.9 | 97.6 | |
| 0.00 | 2.39 | 0.00 | 1.71 | -10.33 | 240.10 | -43.07 | 111.58 | 0.7248 | -315.0 | -385.8 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -9.23 | 239.78 | -43.39 | 110.00 | 0.7239 | -659.0 | -567.4 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -9.03 | 239.56 | -43.62 | 109.64 | 0.7257 | -702.0 | -555.1 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -9.23 | 239.48 | -43.69 | 109.86 | 0.7272 | -355.0 | -317.5 | |
| 0.00 | 1.24 | 0.00 | 0.92 | -12.24 | 238.84 | -44.34 | 113.41 | 0.7465 | 387.0 | 328.4 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -12.04 | 238.88 | -44.30 | 113.18 | 0.7453 | 495.0 | 450.4 | |
| 0.00 | 1.77 | 0.00 | 1.28 | -9.77 | 239.31 | -43.86 | 110.49 | 0.7313 | -620.0 | -558.2 | |
| 0.00 | 1.42 | 0.00 | 1.05 | -11.40 | 238.71 | -44.46 | 112.29 | 0.7444 | 227.0 | 125.9 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -12.80 | 238.23 | -44.94 | 113.82 | 0.7552 | 141.0 | 171.5 | |
| 0.62 | 1.86 | 0.45 | 1.35 | -8.90 | 238.90 | -44.28 | 109.18 | 0.7326 | -672.4 | -586.6 | |
| 0.00 | 1.68 | 0.00 | 1.25 | -11.48 | 238.43 | -44.74 | 112.27 | 0.7477 | -436.0 | -336.6 | |
| 0.00 | 1.86 | 0.00 | 1.38 | -11.74 | 238.38 | -44.79 | 112.57 | 0.7493 | -209.0 | -165.4 | |
| 0.00 | 1.77 | 0.00 | 1.31 | -11.29 | 238.47 | -44.70 | 112.05 | 0.7465 | -220.0 | -204.1 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -12.10 | 238.26 | -44.91 | 112.96 | 0.7521 | 229.0 | 118.8 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -12.15 | 238.07 | -45.10 | 112.94 | 0.7542 | -302.0 | -234.7 | |
| 0.00 | 4.42 | 0.00 | 3.31 | -11.36 | 238.02 | -45.15 | 111.93 | 0.7516 | -752.0 | -537.5 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -13.05 | 237.60 | -45.57 | 113.83 | 0.7628 | -623.0 | -518.3 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -12.31 | 237.69 | -45.49 | 112.96 | 0.7589 | -661.0 | -617.2 | |
| 5.84 | 8.85 | 4.32 | 6.55 | -9.85 | 238.05 | -45.12 | 110.04 | 0.7455 | -773.8 | -596.3 | |
| 8.32 | 20.35 | 6.32 | 15.49 | -12.11 | 237.42 | -45.75 | 112.59 | 0.7609 | -652.6 | -607.2 | |
| 0.00 | 1.24 | 0.00 | 0.92 | -9.27 | 237.93 | -45.24 | 109.24 | 0.7446 | -620.0 | -594.9 | |
| 2.39 | -58.00 | 1.83 | -58.00 | -12.54 | 237.23 | -45.94 | 113.04 | 0.7645 | -808.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.14 | -11.58 | 237.41 | -45.77 | 111.92 | 0.7590 | -669.0 | -544.2 | |
| 0.00 | 2.30 | 0.00 | 1.73 | -10.56 | 237.53 | -45.65 | 110.70 | 0.7538 | -788.0 | -612.5 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -11.81 | 237.22 | -45.95 | 112.14 | 0.7618 | -571.0 | -574.4 | |
| 0.00 | 1.77 | 0.00 | 1.33 | -10.06 | 237.18 | -45.99 | 109.93 | 0.7556 | -707.0 | -605.7 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -12.81 | 236.32 | -46.86 | 112.96 | 0.7750 | -600.0 | -557.4 | |
| 0.00 | 4.60 | 0.00 | 3.68 | -14.09 | 235.62 | -47.56 | 114.18 | 0.7869 | -450.0 | -454.9 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -8.32 | 236.77 | -46.40 | 107.56 | 0.7539 | 211.0 | 215.9 | |
| 0.00 | 2.92 | 0.00 | 2.27 | -11.92 | 236.08 | -47.10 | 111.77 | 0.7740 | -478.0 | -422.2 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -14.83 | 235.22 | -47.96 | 114.89 | 0.7936 | 227.0 | 276.4 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -7.34 | 236.56 | -46.61 | 106.24 | 0.7530 | -503.0 | -370.7 | |
| 0.00 | 4.69 | 0.00 | 3.72 | -12.83 | 235.44 | -47.73 | 112.60 | 0.7838 | -494.0 | -466.9 | |
| 1.95 | 112.10 | 1.56 | 91.32 | -12.65 | 235.03 | -48.15 | 112.21 | 0.7873 | -596.2 | -331.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -12.26 | 235.12 | -48.05 | 111.78 | 0.7849 | -626.0 | -623.5 | |
| 64.50 | 389.12 | 50.81 | 306.73 | -10.72 | 235.11 | -48.06 | 109.90 | 0.7796 | -814.8 | -312.7 | |
| 3.89 | -72.00 | 3.12 | -72.00 | -12.29 | 234.74 | -48.43 | 111.67 | 0.7888 | -771.3 | 999999 | |
| 9.73 | -72.00 | 7.88 | -72.00 | -12.55 | 234.40 | -48.77 | 111.83 | 0.7931 | -735.9 | 999999 | |
| 0.00 | 2.74 | 0.00 | 2.10 | -7.29 | 235.40 | -47.77 | 105.76 | 0.7655 | -575.0 | -519.3 | |
| 8.94 | -72.00 | 7.25 | -72.00 | -12.16 | 234.12 | -49.05 | 111.26 | 0.7945 | -470.0 | 999999 | |
| 1.42 | -72.00 | 1.16 | -72.00 | -12.95 | 233.82 | -49.35 | 112.08 | 0.8002 | -608.9 | 999999 | |
| 0.27 | -74.00 | 0.21 | -74.00 | -10.67 | 234.29 | -48.89 | 109.52 | 0.7878 | -220.3 | 999999 | |
| 0.27 | -74.00 | 0.21 | -74.00 | -10.88 | 234.05 | -49.12 | 109.69 | 0.7909 | 30.0 | 999999 | |
| 0.97 | -74.00 | 0.78 | -74.00 | -10.67 | 233.96 | -49.22 | 109.40 | 0.7911 | -87.5 | 999999 | |
| 0.44 | 6.55 | 0.37 | 5.40 | -12.36 | 233.35 | -49.82 | 111.19 | 0.8027 | -157.0 | -132.3 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -11.99 | 233.31 | -49.86 | 110.73 | 0.8019 | -207.0 | -133.6 | |
| 0.00 | 1.33 | 0.00 | 1.14 | -11.93 | 231.61 | -51.56 | 110.03 | 0.8179 | -437.0 | -383.1 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -11.95 | 230.75 | -52.42 | 109.75 | 0.8259 | -333.0 | -253.0 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -7.80 | 228.86 | -54.31 | 104.31 | 0.8326 | -443.0 | -397.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
