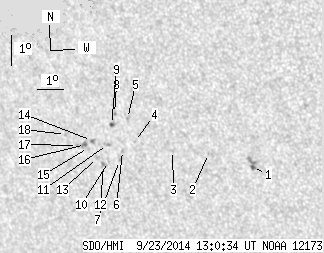

SDO HMI 2014-09-23 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 32.02 | 1.93 | 21.39 | -15.25 | 247.17 | -36.01 | 122.22 | 0.6720 | -461.8 | -273.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 6.64 | 0.62 | 4.20 | -15.52 | 251.55 | -31.62 | 125.89 | 0.6258 | 751.4 | 693.3 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -15.17 | 249.99 | -33.19 | 124.14 | 0.6406 | 503.0 | 424.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -15.17 | 248.63 | -34.54 | 123.09 | 0.6555 | -58.0 | -142.5 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -14.98 | 247.22 | -35.96 | 121.82 | 0.6698 | -564.0 | -491.0 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -14.25 | 247.09 | -36.09 | 120.76 | 0.6667 | -743.0 | -623.6 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -15.31 | 246.69 | -36.49 | 121.87 | 0.6777 | -676.0 | -588.5 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -15.65 | 246.50 | -36.68 | 122.18 | 0.6819 | -628.0 | -438.1 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -14.12 | 246.61 | -36.56 | 120.27 | 0.6712 | -748.0 | -646.3 | |
| 0.97 | 2.12 | 0.65 | 1.42 | -14.49 | 246.42 | -36.75 | 120.63 | 0.6755 | -735.9 | -641.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -15.71 | 246.05 | -37.12 | 121.96 | 0.6870 | -661.0 | -537.2 | |
| 0.00 | 2.57 | 0.00 | 1.73 | -15.16 | 246.13 | -37.04 | 121.30 | 0.6828 | -761.0 | -645.1 | |
| 0.00 | 2.74 | 0.00 | 1.87 | -15.83 | 245.83 | -37.34 | 121.95 | 0.6901 | -593.0 | -516.0 | |
| 0.00 | 1.86 | 0.00 | 1.27 | -15.62 | 245.64 | -37.53 | 121.56 | 0.6909 | -448.0 | -327.5 | |
| 0.35 | 2.12 | 0.24 | 1.45 | -15.07 | 245.52 | -37.65 | 120.78 | 0.6889 | -776.8 | -756.3 | |
| 0.00 | 1.33 | 0.00 | 0.91 | -15.31 | 245.35 | -37.82 | 120.98 | 0.6922 | -421.0 | -468.5 | |
| 0.62 | 3.27 | 0.42 | 2.24 | -15.22 | 245.25 | -37.92 | 120.80 | 0.6927 | -778.6 | -648.3 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -15.28 | 244.92 | -38.25 | 120.66 | 0.6966 | -697.0 | -591.1 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -14.96 | 244.51 | -38.66 | 119.98 | 0.6991 | 297.0 | 259.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
